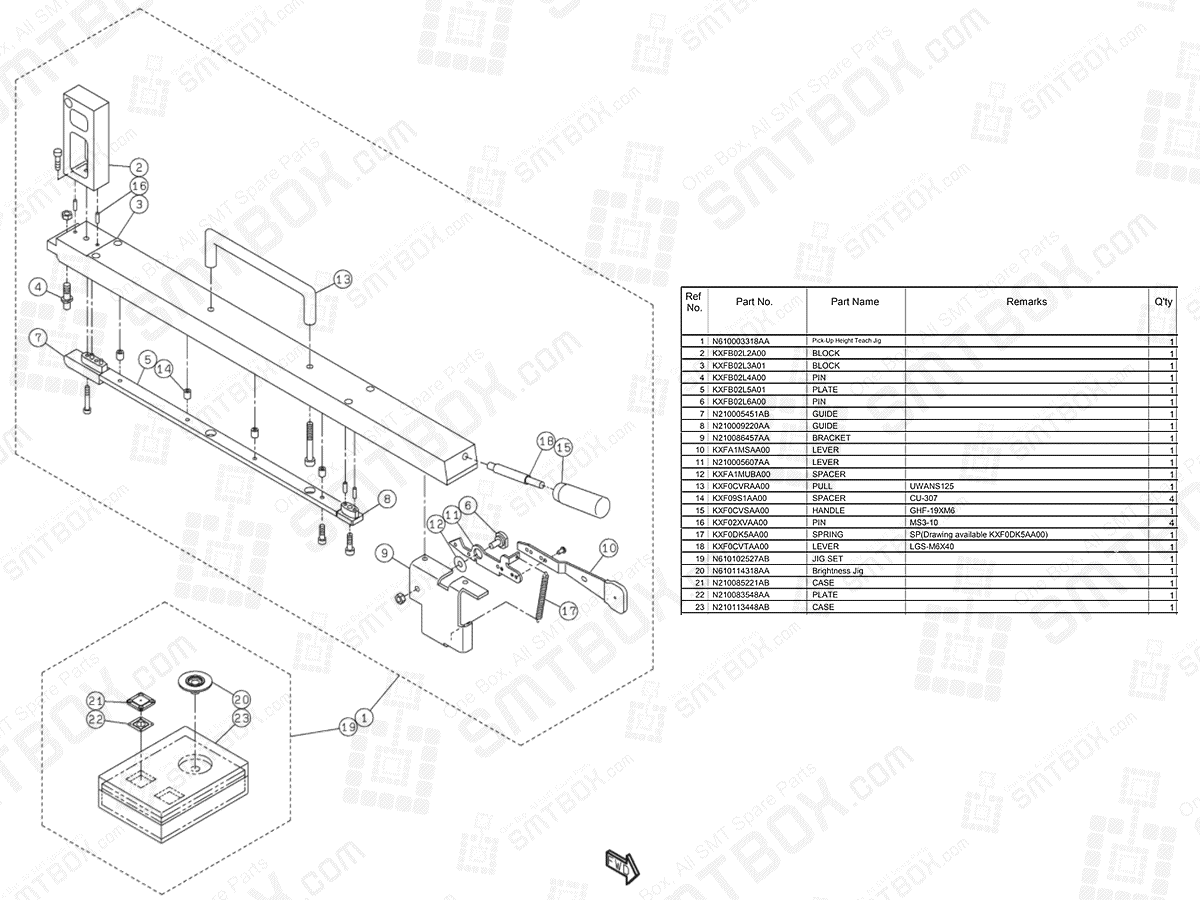

KN610081724AA-05-2 NPM Standard Calibration Jig Kit

#1. P/N: N610003318AA | Part Name: Pick-Up Height Teach Jig | Qty: 1

#2. P/N: KXFB02L2A00 | Part Name: Block | Qty: 1

#3. P/N: KXFB02L3A01 | Part Name: Block | Qty: 1

#4. P/N: KXFB02L4A00 | Part Name: Pin | Qty: 1

#5. P/N: KXFB02L5A01 | Part Name: Plate | Qty: 1

#6. P/N: KXFB02L6A00 | Part Name: Pin | Qty: 1

#7. P/N: N210005451AB | Part Name: Guide | Qty: 1

#8. P/N: N210009220AA | Part Name: Guide | Qty: 1

#9. P/N: N210086457AA | Part Name: Bracket | Qty: 1

#10. P/N: KXFA1MSAA00 | Part Name: Lever | Qty: 1

#11. P/N: N210005607AA | Part Name: Lever | Qty: 1

#12. P/N: KXFA1MUBA00 | Part Name: Spacer | Qty: 1

#13. P/N: KXF0CVRAA00 | Part Name: Pull | Remarks: UWANS125 | Qty: 1

#14. P/N: KXF09S1AA00 | Part Name: Spacer | Remarks: CU-307 | Qty: 4

#15. P/N: KXF0CVSAA00 | Part Name: Handle | Remarks: GHF-19XM6 | Qty: 1

#16. P/N: KXF02XVAA00 | Part Name: Pin | Remarks: MS3-10 | Qty: 4

#17. P/N: KXF0DK5AA00 | Part Name: Spring | Remarks: SP(Drawing available KXF0DK5AA00) | Qty: 1

#18. P/N: KXF0CVTAA00 | Part Name: Lever | Remarks: LGS-M6X40 | Qty: 1

#19. P/N: N610102527AB | Part Name: Jig Set | Qty: 1

#20. P/N: N610114318AA | Part Name: Brightness Jig | Qty: 1

#21. P/N: N210085221AB | Part Name: Case | Qty: 1

#22. P/N: N210083548AA | Part Name: Plate | Qty: 1

#23. P/N: N210113448AB | Part Name: Case | Qty: 1
