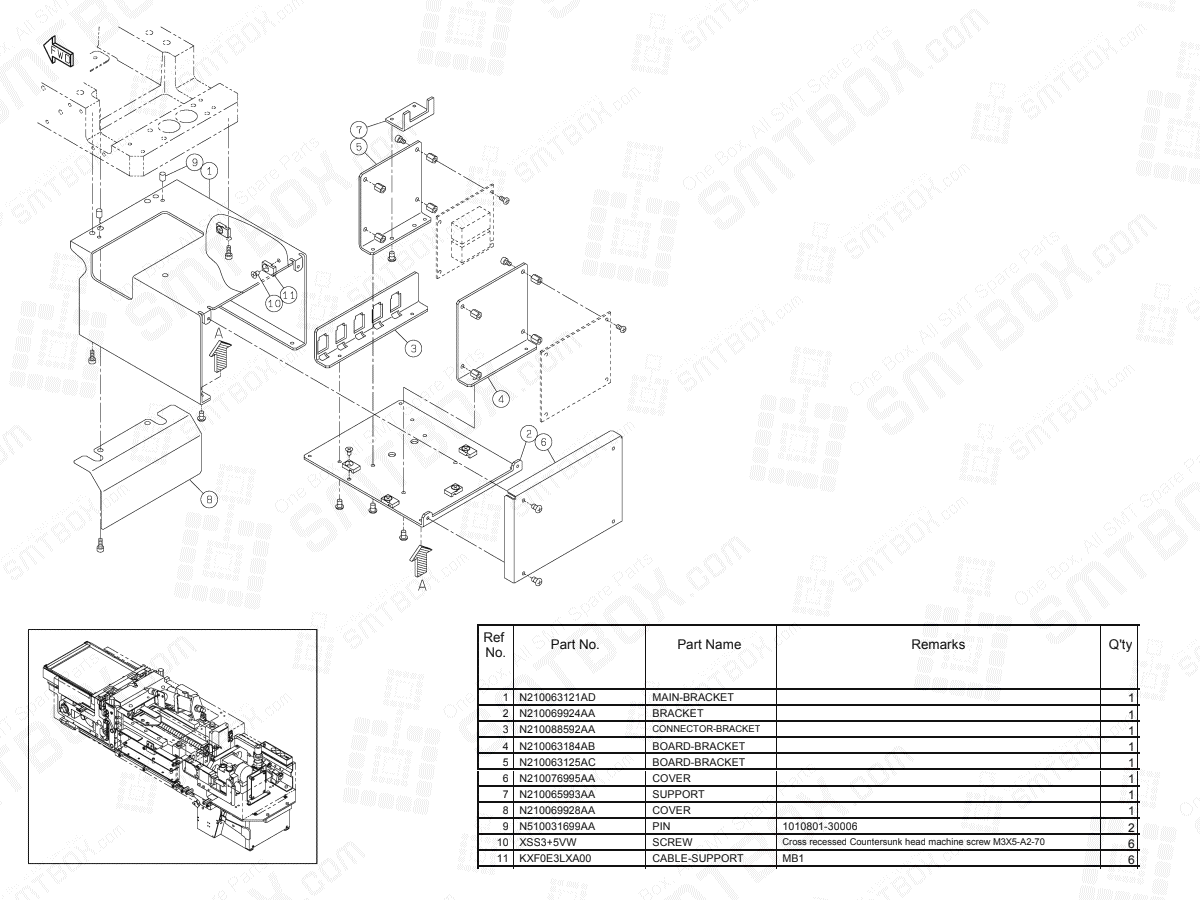

Panasonic NPM Multifunctional Transfer Unit N610095857AB KN610095857AB-03-9

Panasonic Npm Multifunctional Transfer Unit N610095857AB KN610095857AB 03

#1. P/N: N210063121AD | Part Name: Main Bracket | Qty: 1

#2. P/N: N210069924AA | Part Name: Bracket | Qty: 1

#3. P/N: N210088592AA | Part Name: Connector Bracket | Qty: 1

#4. P/N: N210063184AB | Part Name: Board-Bracket | Qty: 1

#5. P/N: N210063125AC | Part Name: Board-Bracket | Qty: 1

#6. P/N: N210076995AA | Part Name: Cover | Qty: 1

#7. P/N: N210065993AA | Part Name: Support | Qty: 1

#8. P/N: N210069928AA | Part Name: Cover | Qty: 1

#9. P/N: N510031699AA | Part Name: Pin | Remarks: 1010801-30006 | Qty: 2

#10. P/N: XSS3+5VW | Part Name: Screw | Remarks: Cross recessed Countersunk head machine screw M3X5-A2-70 | Qty: 6

#11. P/N: KXF0E3LXA00 | Part Name: Cable Support Mb1 | Qty: 6
