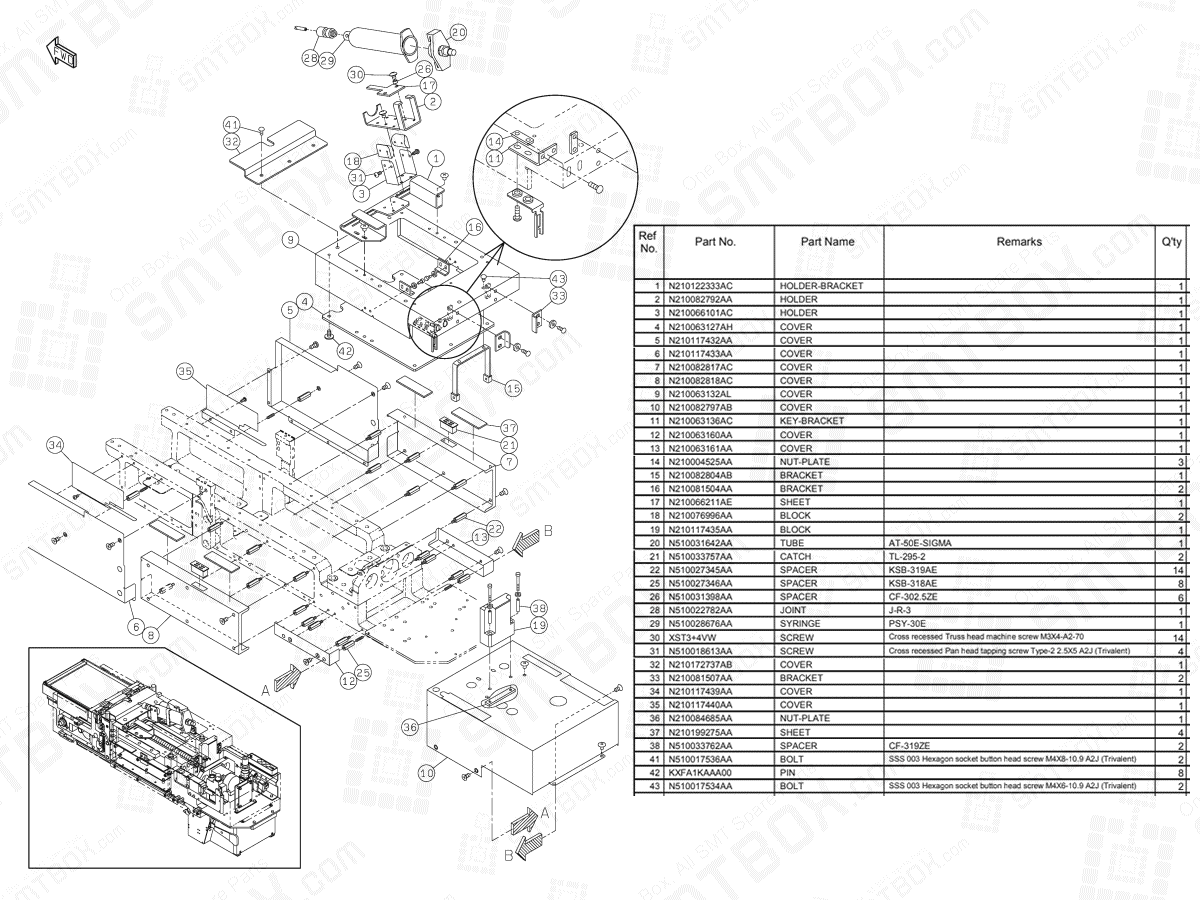

KN610095857AB-03-8 NPM Multifunctional Transfer Unit

#1. P/N: N210122333AC | Part Name: Holder Bracket | Qty: 1

#2. P/N: N210082792AA | Part Name: Holder | Qty: 1

#3. P/N: N210066101AC | Part Name: Holder | Qty: 1

#4. P/N: N210063127AH | Part Name: Cover | Qty: 1

#5. P/N: N210117432AA | Part Name: Cover | Qty: 1

#6. P/N: N210117433AA | Part Name: Cover | Qty: 1

#7. P/N: N210082817AC | Part Name: Cover | Qty: 1

#8. P/N: N210082818AC | Part Name: Cover | Qty: 1

#9. P/N: N210063132AL | Part Name: Cover | Qty: 1

#10. P/N: N210082797AB | Part Name: Cover | Qty: 1

#11. P/N: N210063136AC | Part Name: Key Bracket | Qty: 1

#12. P/N: N210063160AA | Part Name: Cover | Qty: 1

#13. P/N: N210063161AA | Part Name: Cover | Qty: 1

#14. P/N: N210004525AA | Part Name: Nut Plate | Qty: 3

#15. P/N: N210082804AB | Part Name: Bracket | Qty: 1

#16. P/N: N210081504AA | Part Name: Bracket | Qty: 2

#17. P/N: N210066211AE | Part Name: Sheet | Qty: 1

#18. P/N: N210076996AA | Part Name: Block | Qty: 2

#19. P/N: N210117435AA | Part Name: Block | Qty: 1

#20. P/N: N510031642AA | Part Name: Tube | Remarks: AT-50E-SIGMA | Qty: 1

#21. P/N: N510033757AA | Part Name: Catch | Remarks: TL-295-2 | Qty: 2

#22. P/N: N510027345AA | Part Name: Spacer | Remarks: KSB-319AE | Qty: 14

#25. P/N: N510027346AA | Part Name: Spacer | Remarks: KSB-318AE | Qty: 8

#26. P/N: N510031398AA | Part Name: Spacer | Remarks: CF-302.5ZE | Qty: 6

#28. P/N: N510022782AA | Part Name: Joint | Remarks: J-R-3 | Qty: 1

#29. P/N: N510028676AA | Part Name: Syringe | Remarks: PSY-30E | Qty: 1

#30. P/N: XST3+4VW | Part Name: Screw | Remarks: Cross recessed Truss head machine screw M3X4-A2-70 | Qty: 14

#31. P/N: N510018613AA | Part Name: Screw | Remarks: Cross recessed Pan head tapping screw Type-2 2.5X5 A2J (Trivalent) | Qty: 4

#32. P/N: N210172737AB | Part Name: Cover | Qty: 1

#33. P/N: N210081507AA | Part Name: Bracket | Qty: 2

#34. P/N: N210117439AA | Part Name: Cover | Qty: 1

#35. P/N: N210117440AA | Part Name: Cover | Qty: 1

#36. P/N: N210084685AA | Part Name: Nut Plate | Qty: 1

#37. P/N: N210199275AA | Part Name: Sheet | Qty: 4

#38. P/N: N510033762AA | Part Name: Spacer | Remarks: CF-319ZE | Qty: 2

#41. P/N: N510017536AA | Part Name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X8-10.9 A2J (Trivalent) | Qty: 2

#42. P/N: KXFA1KAAA00 | Part Name: Pin | Qty: 8

#43. P/N: N510017534AA | Part Name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X6-10.9 A2J (Trivalent) | Qty: 2
