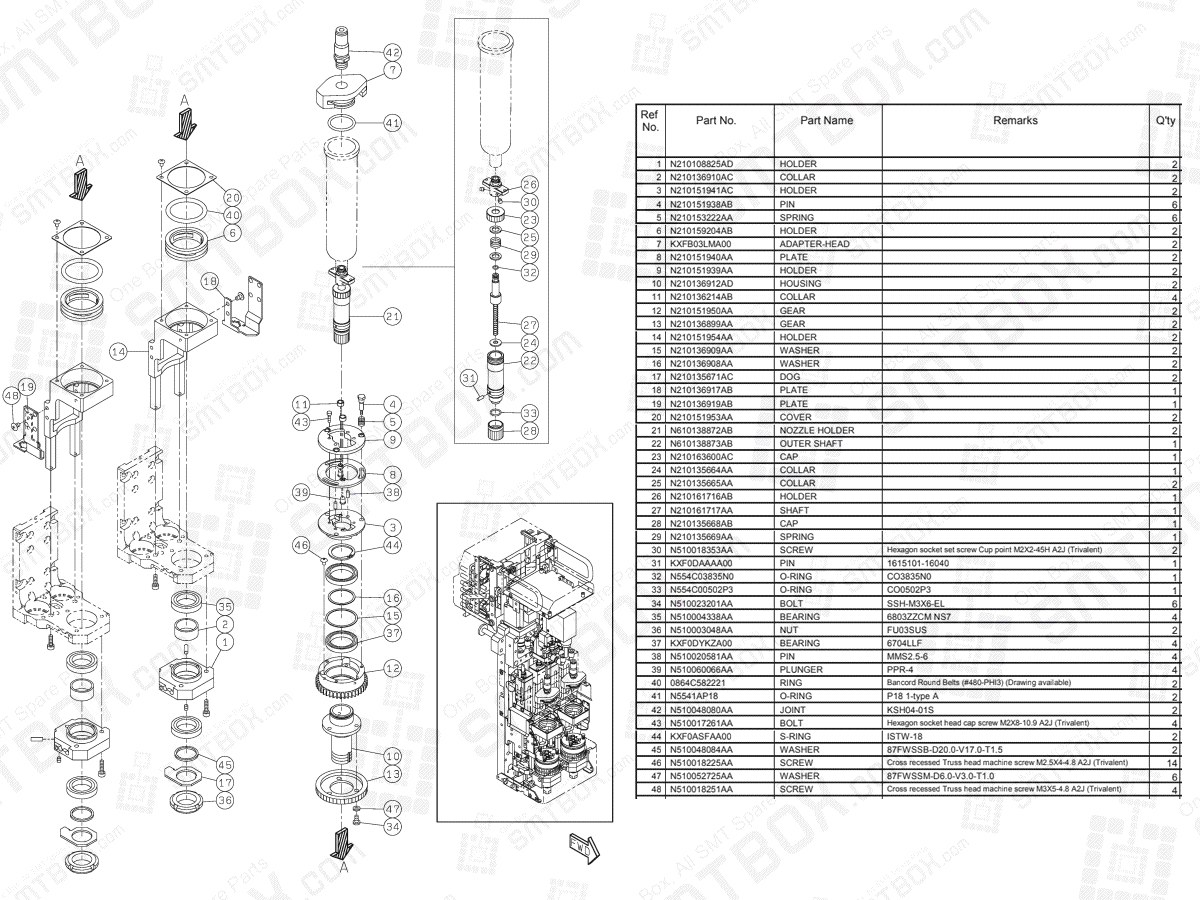

KN610157748AA-05-5 NPM Dispenser Head N610157748AA

#1. P/N: N210108825AD | Part name: Holder | Qty: 2

#2. P/N: N210136910AC | Part name: Collar | Qty: 2

#3. P/N: N210151941AC | Part name: Holder | Qty: 2

#4. P/N: N210151938AB | Part name: Pin | Qty: 6

#5. P/N: N210153222AA | Part name: Spring | Qty: 6

#6. P/N: N210159204AB | Part name: Holder | Qty: 2

#7. P/N: KXFB03LMA00 | Part name: Adapter Head | Qty: 2

#8. P/N: N210151940AA | Part name: Plate | Qty: 2

#9. P/N: N210151939AA | Part name: Holder | Qty: 2

#10. P/N: N210136912AD | Part name: Housing | Qty: 2

#11. P/N: N210136214AB | Part name: Collar | Qty: 4

#12. P/N: N210151950AA | Part name: Gear | Qty: 2

#13. P/N: N210136899AA | Part name: Gear | Qty: 2

#14. P/N: N210151954AA | Part name: Holder | Qty: 2

#15. P/N: N210136909AA | Part name: Washer | Qty: 2

#16. P/N: N210136908AA | Part name: Washer | Qty: 2

#17. P/N: N210135671AC | Part name: Dog | Qty: 2

#18. P/N: N210136917AB | Part name: Plate | Qty: 1

#19. P/N: N210136919AB | Part name: Plate | Qty: 1

#20. P/N: N210151953AA | Part name: Cover | Qty: 2

#21. P/N: N610138872AB | Part name: Nozzle Holder | Qty: 2

#22. P/N: N610138873AB | Part name: Outer Shaft | Qty: 1

#23. P/N: N210163600AC | Part name: Cap | Qty: 1

#24. P/N: N210135664AA | Part name: Collar | Qty: 1

#25. P/N: N210135665AA | Part name: Collar | Qty: 2

#26. P/N: N210161716AB | Part name: Holder | Qty: 1

#27. P/N: N210161717AA | Part name: Shaft | Qty: 1

#28. P/N: N210135668AB | Part name: Cap | Qty: 1

#29. P/N: N210135669AA | Part name: Spring | Qty: 1

#30. P/N: N510018353AA | Part name: Screw | Remarks: Hexagon socket set screw Cup point M2X2-45H A2J (Trivalent) | Qty: 2

#31. P/N: KXF0DAAAA00 | Part name: Pin | Remarks: 1615101-16040 | Qty: 1

#32. P/N: N554C03835N0 | Part name: O-Ring | Remarks: CO3835N0 | Qty: 1

#33. P/N: N554C00502P3 | Part name: O-Ring | Remarks: CO0502P3 | Qty: 1

#34. P/N: N510023201AA | Part name: Bolt | Remarks: SSH-M3X6-EL | Qty: 6

#35. P/N: N510004338AA | Part name: Bearing | Remarks: 6803ZZCM NS7 | Qty: 4

#36. P/N: N510003048AA | Part name: Nut | Remarks: FU03SUS | Qty: 2

#37. P/N: KXF0DYKZA00 | Part name: Bearing | Remarks: 6704LLF | Qty: 4

#38. P/N: N510020581AA | Part name: Pin | Remarks: MMS2.5-6 | Qty: 4

#39. P/N: N510060066AA | Part name: Plunger | Remarks: PPR-4 | Qty: 4

#40. P/N: 0864C582221 | Part name: Ring | Remarks: Bancord Round Belts (#480-PHI3) (Drawing available) | Qty: 2

#41. P/N: N5541AP18 | Part name: O-Ring | Remarks: P18 1-type A | Qty: 2

#42. P/N: N510048080AA | Part name: Joint | Remarks: KSH04-01S | Qty: 2

#43. P/N: N510017261AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M2X8-10.9 A2J (Trivalent) | Qty: 4

#44. P/N: KXF0ASFAA00 | Part name: S-Ring | Remarks: ISTW-18 | Qty: 2

#45. P/N: N510048084AA | Part name: Washer | Remarks: 87FWSSB-D20.0-V17.0-T1.5 | Qty: 2

#46. P/N: N510018225AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M2.5X4-4.8 A2J (Trivalent) 14

#47. P/N: N510052725AA | Part name: Washer | Remarks: 87FWSSM-D6.0-V3.0-T1.0 | Qty: 6

#48. P/N: N510018251AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M3X5-4.8 A2J (Trivalent) | Qty: 4
