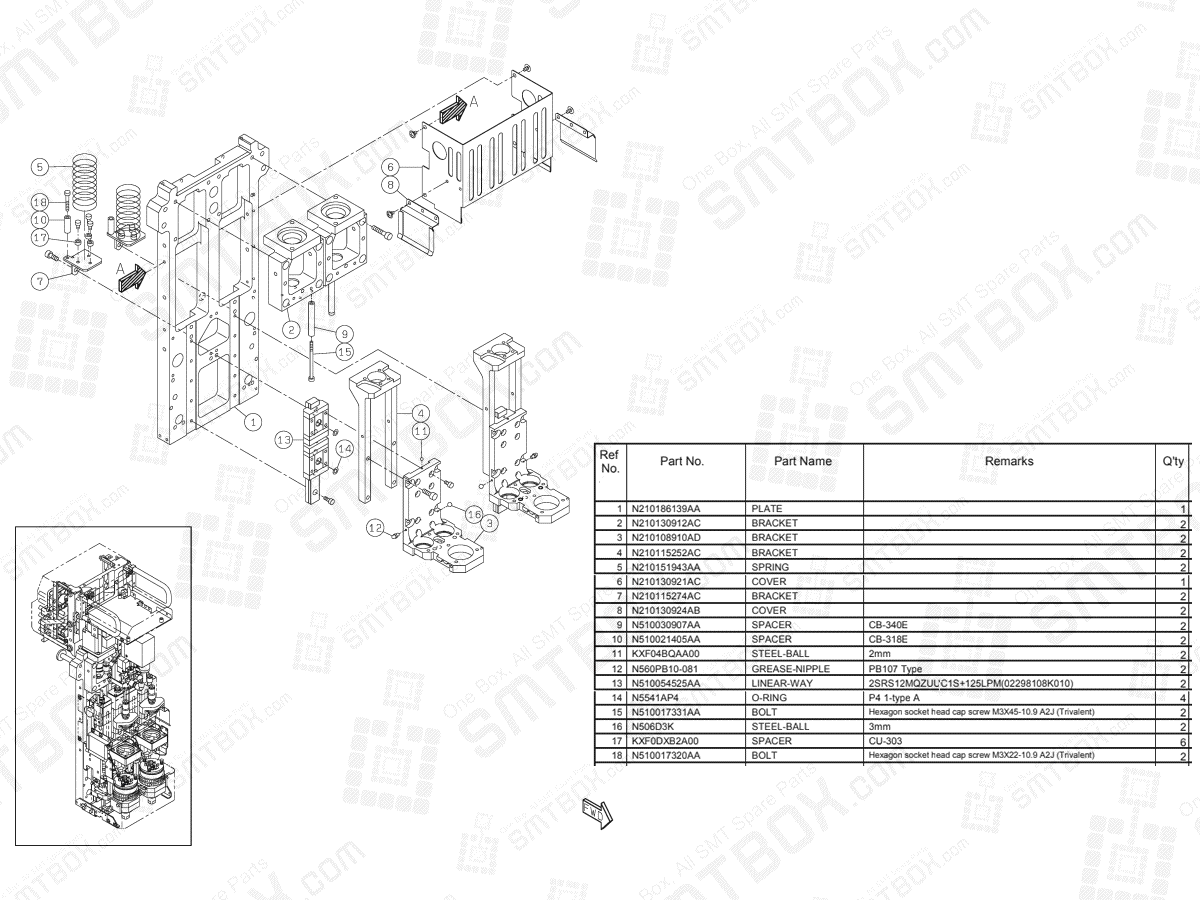

Panasonic NPM Dispenser Head N610157748AA KN610157748AA-05-1

Panasonic Npm Dispenser Head N610157748AA KN610157748AA 05

#1. P/N: N210186139AA | Part name: Plate | Qty: 1

#2. P/N: N210130912AC | Part name: Bracket | Qty: 2

#3. P/N: N210108910AD | Part name: Bracket | Qty: 2

#4. P/N: N210115252AC | Part name: Bracket | Qty: 2

#5. P/N: N210151943AA | Part name: Spring | Qty: 2

#6. P/N: N210130921AC | Part name: Cover | Qty: 1

#7. P/N: N210115274AC | Part name: Bracket | Qty: 2

#8. P/N: N210130924AB | Part name: Cover | Qty: 2

#9. P/N: N510030907AA | Part name: Spacer | Remarks: CB-340E | Qty: 2

#10. P/N: N510021405AA | Part name: Spacer | Remarks: CB-318E | Qty: 2

#11. P/N: KXF04BQAA00 | Part name: Steel-Ball | Remarks: 2mm | Qty: 2

#12. P/N: N560PB10-081 | Part name: Grease-Nipple | Remarks: PB107 Type | Qty: 2

#13. P/N: N510054525AA | Part name: Linear-Way | Remarks: 2SRS12MQZUUC1S+125LPM(02298108K010) | Qty: 2

#14. P/N: N5541AP4 | Part name: O-Ring | Remarks: P4 1-type A | Qty: 4

#15. P/N: N510017331AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X45-10.9 A2J (Trivalent) | Qty: 2

#16. P/N: N506D3K | Part name: Steel-Ball | Remarks: 3mm | Qty: 2

#17. P/N: KXF0DXB2A00 | Part name: Spacer | Remarks: CU-303 | Qty: 6

#18. P/N: N510017320AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X22-10.9 A2J (Trivalent) | Qty: 2
