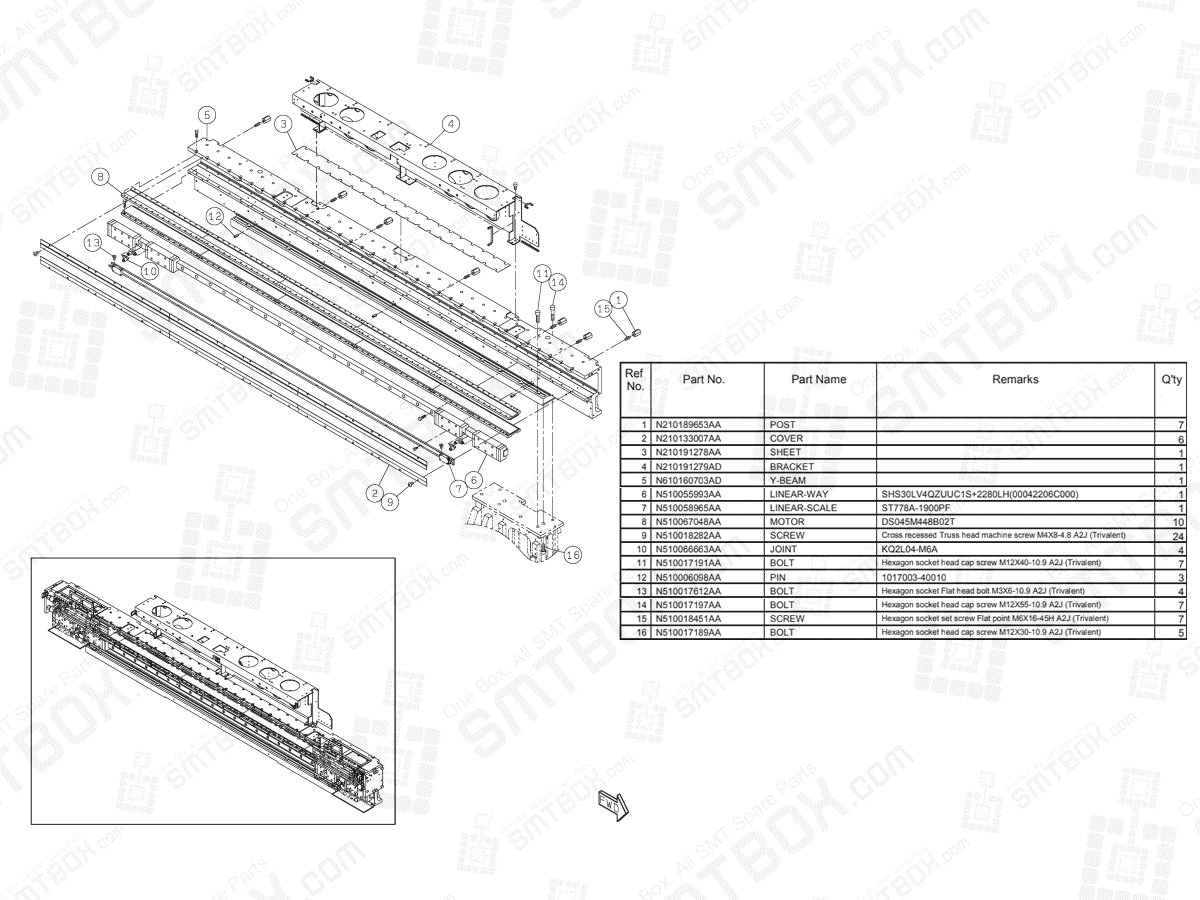

#1. P/N: N210189653AA | Part Name: Post | Qty: 7
#2. P/N: N210133007AA | Part Name: Cover | Qty: 6
#3. P/N: N210191278AA | Part Name: Sheet | Qty: 1
#4. P/N: N210191279AD | Part Name: Bracket | Qty: 1
#5. P/N: N610160703AD | Part Name: Y-Beam | Qty: 1
#6. P/N: N510055993AA | Part Name: Linear Way | Remarks: SHS30LV4QZUUC1S+2280LH(00042206C000) | Qty: 1
#7. P/N: N510058965AA | Part Name: Linear Scale | Remarks: ST778A-1900PF | Qty: 1
#8. P/N: N510067048AA | Part Name: Motor | Remarks: DS045M448B02T | Qty: 10
#9. P/N: N510018282AA | Part Name: Screw | Remarks: Cross recessed Truss head machine screw M4X8-4.8 A2J (Trivalent) | Qty: 24
#10. P/N: N510066663AA | Part Name: Joint | Remarks: KQ2L04-M6A | Qty: 4
#11. P/N: N510017191AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M12X40-10.9 A2J (Trivalent) | Qty: 7
#12. P/N: N510006098AA | Part Name: Pin | Remarks: 1017003-40010 | Qty: 3
#13. P/N: N510017612AA | Part Name: Bolt | Remarks: Hexagon socket Flat head bolt M3X6-10.9 A2J (Trivalent) | Qty: 4
#14. P/N: N510017197AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M12X55-10.9 A2J (Trivalent) | Qty: 7
#15. P/N: N510018451AA | Part Name: Screw | Remarks: Hexagon socket set screw Flat point M6X16-45H A2J (Trivalent) | Qty: 7
#16. P/N: N510017189AA | Part Name: Bolt | Remarks: Hexagon socket head cap screw M12X30-10.9 A2J (Trivalent) | Qty: 5
