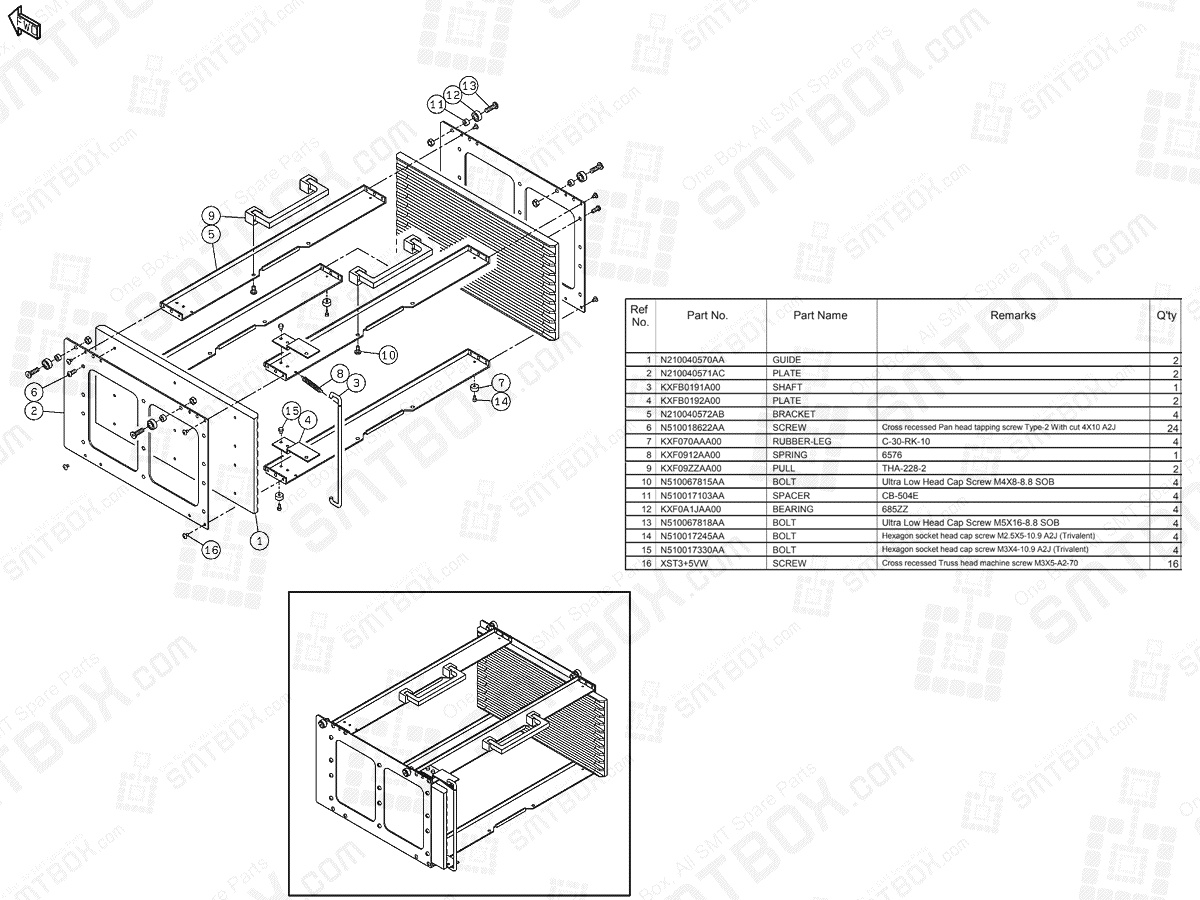

#1. P/N: N210040570AA | Part name: Guide | Qty: 2
#2. P/N: N210040571AC | Part name: Plate | Qty: 2
#3. P/N: KXFB0191A00 | Part name: Shaft | Qty: 1
#4. P/N: KXFB0192A00 | Part name: Plate | Qty: 2
#5. P/N: N210040572AB | Part name: Bracket | Qty: 4
#6. P/N: N510018622AA | Part name: Screw | Remarks: Cross recessed Pan head tapping screw Type-2 With cut 4X10 A2J | Qty: 24
#7. P/N: KXF070AAA00 | Part name: Rubber Leg | Remarks: C-30-RK-10 | Qty: 4
#8. P/N: KXF0912AA00 | Part name: Spring | Remarks: 6576 | Qty: 1
#9. P/N: KXF09ZZAA00 | Part name: Pull | Remarks: THA-228-2 | Qty: 2
#10. P/N: N510067815AA | Part name: Bolt | Remarks: Ultra Low Head Cap Screw M4X8-8.8 SOB | Qty: 4
#11. P/N: N510017103AA | Part name: Spacer | Remarks: CB-504E | Qty: 4
#12. P/N: KXF0A1JAA00 | Part name: Bearing | Remarks: 685ZZ | Qty: 4
#13. P/N: N510067818AA | Part name: Bolt | Remarks: Ultra Low Head Cap Screw M5X16-8.8 SOB | Qty: 4
#14. P/N: N510017245AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M2.5X5-10.9 A2J (Trivalent) | Qty: 4
#15. P/N: N510017330AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X4-10.9 A2J (Trivalent) | Qty: 4
#16. P/N: XST3+5VW | Part name: Screw | Remarks: Cross recessed Truss head machine screw M3X5-A2-70 | Qty: 16
