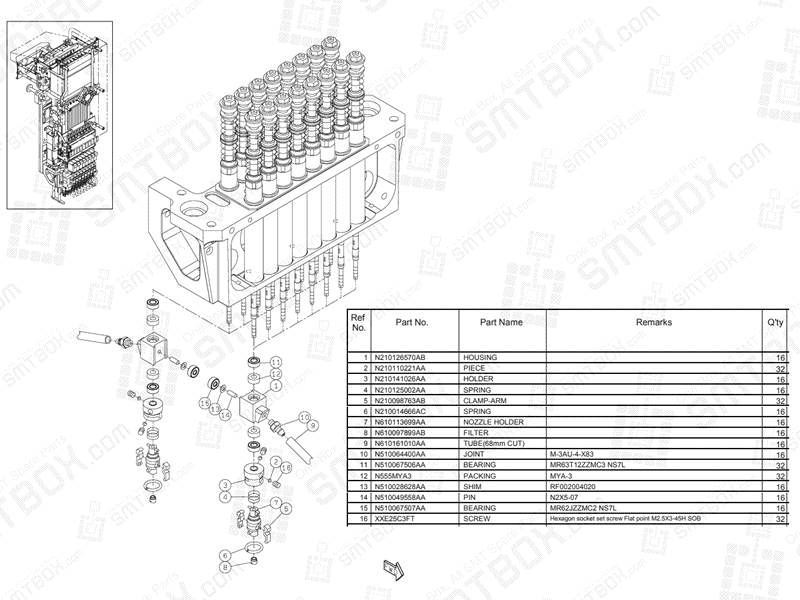

Panasonic NPM D3 Light weight 16 Nozzle Head N610159207AA KN610159207AA-10-3

Panasonic Npm D3 Light Weight 16 Nozzle Head N610159207AA KN610159207AA 10

#1. P/N: N210126570AB | Part name: Housing | Qty: 16

#2. P/N: N210110221AA | Part name: Piece | Qty: 32

#3. P/N: N210141026AA | Part name: Holder | Qty: 16

#4. P/N: N210125002AA | Part name: Spring | Qty: 16

#5. P/N: N210098763AB | Part name: Clamp-Arm | Qty: 32

#6. P/N: N210014666AC | Part name: Spring | Qty: 16

#7. P/N: N610113699AA | Part name: Nozzle Holder | Qty: 16

#8. P/N: N610097899AB | Part name: Filter | Qty: 16

#9. P/N: N610161010AA | Part name: Tube(68Mm Cut) | Qty: 16

#10. P/N: N510064400AA | Part name: Joint | Remarks: M-3AU-4-X83 | Qty: 16

#11. P/N: N510067506AA | Part name: Bearing | Remarks: R63T12ZZMC3 NS7L | Qty: 32

#12. P/N: N555MYA3 | Part name: Packing | Remarks: YA-3 | Qty: 32

#13. P/N: N510028628AA | Part name: Shim | Remarks: RF002004020 | Qty: 16

#14. P/N: N510049558AA | Part name: Pin | Remarks: 2X5-07 | Qty: 16

#15. P/N: N510067507AA | Part name: Bearing | Remarks: R62JZZMC2 NS7L | Qty: 16

#16. P/N: XXE25C3FT | Part name: Screw | Remarks: exagon socket set screw Flat point M2.5X3-45H SOB | Qty: 32
