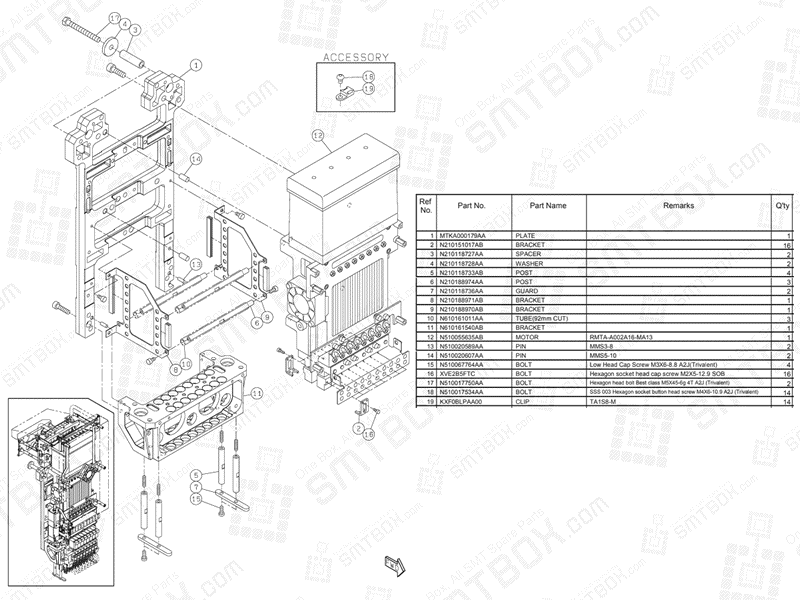

#1. P/N: MTKA000179AA | Part name: Plate | Qty: 1
#2. P/N: N210151017AB | Part name: Bracket | Qty: 16
#3. P/N: N210118727AA | Part name: Spacer | Qty: 2
#4. P/N: N210118728AA | Part name: Washer | Qty: 2
#5. P/N: N210118733AB | Part name: Post | Qty: 4
#6. P/N: N210188974AA | Part name: Post | Qty: 3
#7. P/N: N210118736AA | Part name: Guard | Qty: 2
#8. P/N: N210188971AB | Part name: Bracket | Qty: 1
#9. P/N: N210188970AB | Part name: Bracket | Qty: 1
#10. P/N: N610161011AA | Part name: Tube(92Mm Cut) | Qty: 3
#11. P/N: N610161540AB | Part name: Bracket | Qty: 1
#12. P/N: N510055635AB | Part name: Motor | Remarks: RMTA-A002A16-MA13 | Qty: 1
#13. P/N: N510020589AA | Part name: Pin | Remarks: MMS3-8 | Qty: 2
#14. P/N: N510020607AA | Part name: Pin | Remarks: MMS5-10 | Qty: 2
#15. P/N: N510067764AA | Part name: Bolt | Remarks: Low Head Cap Screw M3X6-8.8 A2J(Trivalent) | Qty: 4
#16. P/N: XVE2B5FTC | Part name: Bolt | Remarks: Hexagon socket head cap screw M2X5-12.9 SOB | Qty: 16
#17. P/N: N510017750AA | Part name: Bolt | Remarks: Hexagon head bolt Best class M5X45-6g 4T A2J (Trivalent) | Qty: 2
#18. P/N: N510017534AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M4X6-10.9 A2J (Trivalent) 14
#19. P/N: KXF0BLPAA00 | Part name: Clip | Remarks: TA1S8-M | Qty: 14
