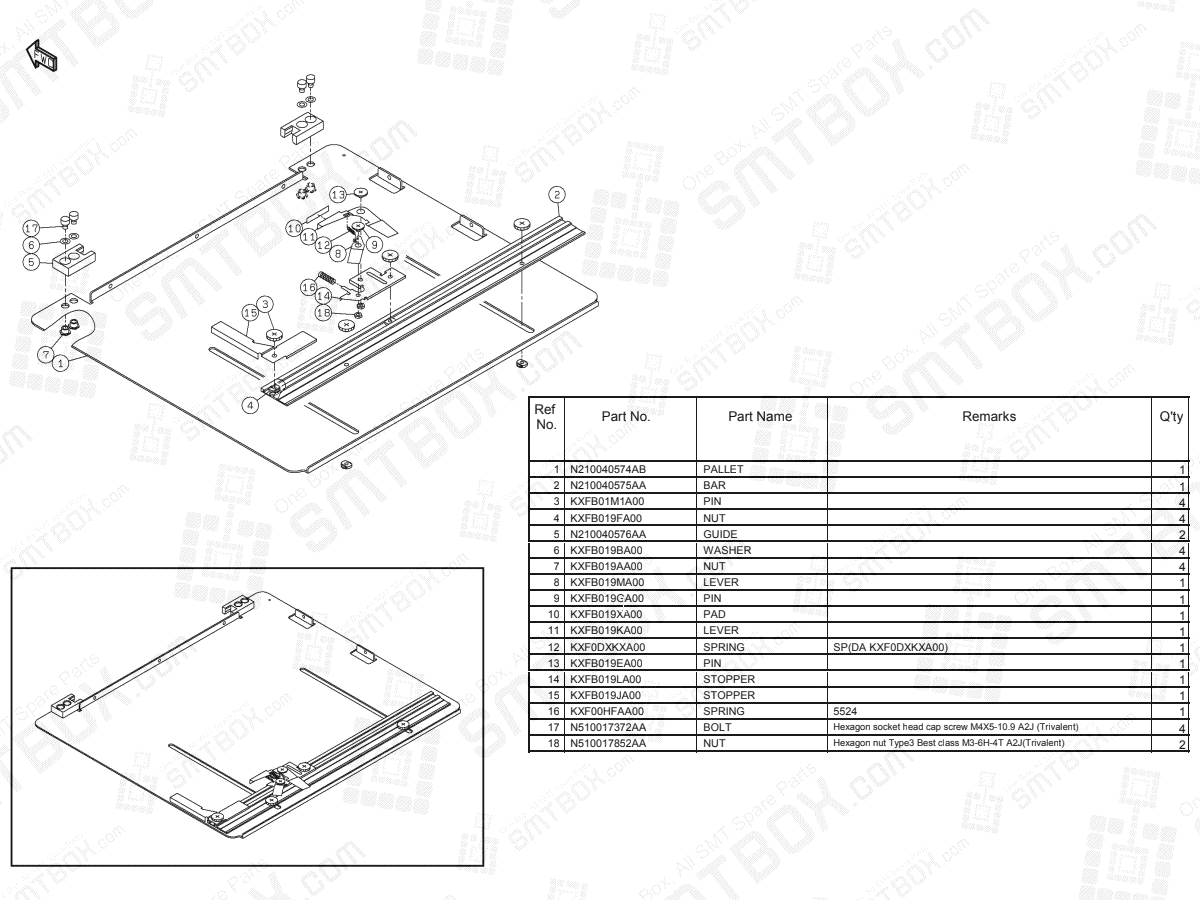

NPM-D3 DT50S-20 Multi-Step Tray Pallet N610026560AA

#1. P/N: N210040574AB | Part name: PALLET | Qty: 1

#2. P/N: N210040575AA | Part name: BAR | Qty: 1

#3. P/N: KXFB01M1A00 | Part name: PIN | Qty: 4

#4. P/N: KXFB019FA00 | Part name: NUT | Qty: 4

#5. P/N: N210040576AA | Part name: GUIDE | Qty: 2

#6. P/N: KXFB019BA00 | Part name: WASHER | Qty: 4

#7. P/N: KXFB019AA00 | Part name: NUT | Qty: 4

#8. P/N: KXFB019MA00 | Part name: LEVER | Qty: 1

#9. P/N: KXFB019GA00 | Part name: PIN | Qty: 1

#10. P/N: KXFB019XA00 | Part name: PAD | Qty: 1

#11. P/N: KXFB019KA00 | Part name: LEVER | Qty: 1

#12. P/N: KXF0DXKXA00 | Part name: SPRING | Remarks: SP(DA KXF0DXKXA00) | Qty: 1

#13. P/N: KXFB019EA00 | Part name: PIN | Qty: 1

#14. P/N: KXFB019LA00 | Part name: STOPPER | Qty: 1

#15. P/N: KXFB019JA00 | Part name: STOPPER | Qty: 1

#16. P/N: KXF00HFAA00 | Part name: SPRING | Remarks: 5524 | Qty: 1

#17. P/N: N510017372AA | Part name: BOLT | Remarks: Hexagon socket head cap screw M4X5-10.9 A2J (Trivalent) | Qty: 4

#18. P/N: N510017852AA | Part name: NUT | Remarks: Hexagon nut Type3 Best class M3-6H-4T A2J(Trivalent) | Qty: 2
