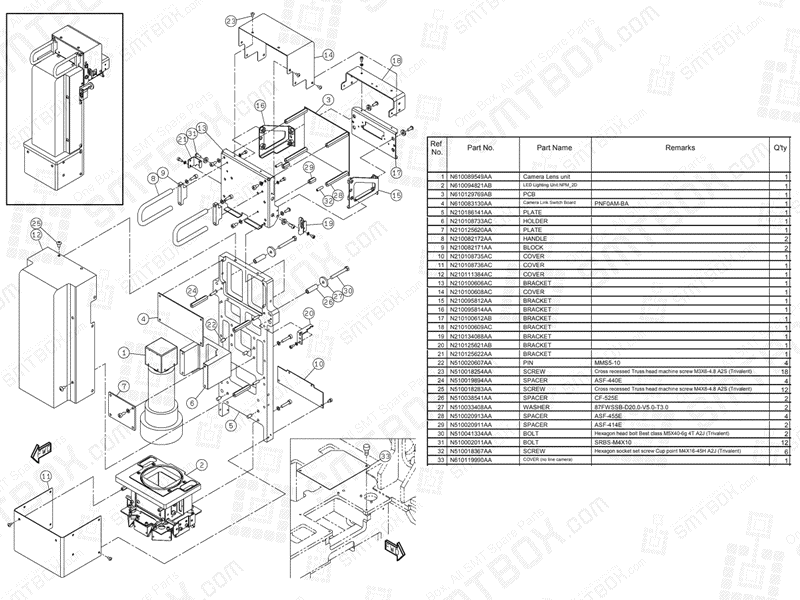

2D Inspection Head (B) N610157775AA KN610157775AA01

#1. P/N: N610089549AA | Part name: Camera Lens unit | Qty: 1

#2. P/N: N610094821AB | Part name: LED Lighting Unit: NPM 2D | Qty: 1

#3. P/N: N610129769AB | Part name: PCB | Qty: 1

#4. P/N: N610083130AA | Part name: Camera Link Switch Board | Remarks: PNF0AM-BA | Qty: 1

#5. P/N: N210186141AA | Part name: Plate | Qty: 1

#6. P/N: N210108733AC | Part name: Holder | Qty: 1

#7. P/N: N210125620AA | Part name: Plate | Qty: 1

#8. P/N: N210082172AA | Part name: Handle | Qty: 2

#9. P/N: N210082171AA | Part name: Block | Qty: 2

#10. P/N: N210108735AC | Part name: Cover | Qty: 1

#11. P/N: N210108736AC | Part name: Cover | Qty: 1

#12. P/N: N210111384AC | Part name: Cover | Qty: 1

#13. P/N: N210100606AC | Part name: Bracket | Qty: 1

#14. P/N: N210100608AC | Part name: Cover | Qty: 1

#15. P/N: N210095812AA | Part name: Bracket | Qty: 1

#16. P/N: N210095814AA | Part name: Bracket | Qty: 1

#17. P/N: N210100612AB | Part name: Bracket | Qty: 1

#18. P/N: N210100609AC | Part name: Bracket | Qty: 1

#19. P/N: N210134088AA | Part name: Bracket | Qty: 1

#20. P/N: N210125621AB | Part name: Bracket | Qty: 1

#21. P/N: N210125622AA | Part name: Bracket | Qty: 1

#22. P/N: N510020607AA | Part name: Pin | Remarks: MMS5-10 | Qty: 4

#23. P/N: N510018254AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M3X6-4.8 A2S (Trivalent) 18

#24. P/N: N510019894AA | Part name: Spacer | Remarks: ASF-440E | Qty: 4

#25. P/N: N510018283AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X8-4.8 A2S (Trivalent) | Qty: 12

#26. P/N: N510038541AA | Part name: Spacer | Remarks: CF-525E | Qty: 2

#27. P/N: N510033408AA | Part name: Washer | Remarks: 87FWSSB-D20.0-V5.0-T3.0 | Qty: 2

#28. P/N: N510020913AA | Part name: Spacer | Remarks: ASF-455E | Qty: 4

#29. P/N: N510020911AA | Part name: Spacer | Remarks: ASF-414E | Qty: 2

#30. P/N: N510041334AA | Part name: Bolt | Remarks: Hexagon head bolt Best class M5X40-6g 4T A2J (Trivalent) | Qty: 2

#31. P/N: N510002011AA | Part name: Bolt | Remarks: SRBS-M4X10 | Qty: 12

#32. P/N: N510018367AA | Part name: Screw | Remarks: Hexagon socket set screw Cup point M4X16-45H A2J (Trivalent) | Qty: 6

#33. P/N: N610119990AA | Part name: Cover (no line camera) | Qty: 1
