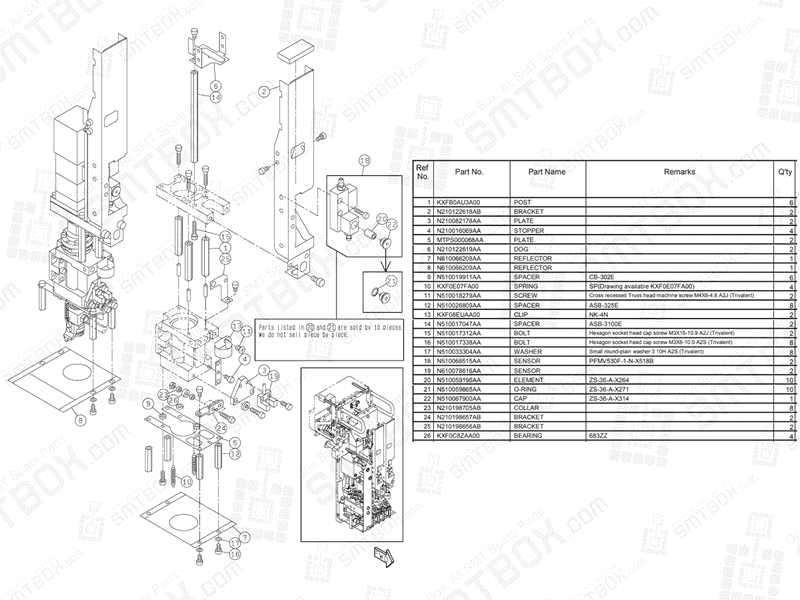

SMT Spares Panasonic NPM 2 Nozzle Head N610157743AA

#1. P/N: KXFB0AU3A00 | Part name: Post | Qty: 6

#2. P/N: N210122618AB | Part name: Bracket | Qty: 2

#3. P/N: N210082178AA | Part name: Plate | Qty: 2

#4. P/N: N210016069AA | Part name: Stopper | Qty: 4

#5. P/N: MTPS000068AA | Part name: Plate | Qty: 2

#6. P/N: N210122619AA | Part name: Dog | Qty: 2

#7. P/N: N610066208AA | Part name: Reflector | Qty: 1

#8. P/N: N610066209AA | Part name: Reflector | Qty: 1

#9. P/N: N510019911AA | Part name: Spacer | Remarks: CB-302E | Qty: 6

#10. P/N: KXF0E07FA00 | Part name: Spring | Remarks: SP(Drawing available KXF0E07FA00) | Qty: 4

#11. P/N: N510018279AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M4X6-4.8 A2J (Trivalent) | Qty: 2

#12. P/N: N510026809AA | Part name: Spacer | Remarks: ASB-325E | Qty: 8

#13. P/N: KXF08EUAA00 | Part name: Clip | Remarks: NK-4N | Qty: 2

#14. P/N: N510017047AA | Part name: Spacer | Remarks: ASB-3100E | Qty: 2

#15. P/N: N510017312AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X15-10.9 A2J (Trivalent) | Qty: 2

#16. P/N: N510017338AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X6-10.9 A2S (Trivalent) | Qty: 8

#17. P/N: N510033304AA | Part name: Washer | Remarks: Small round-plain washer 3 10H A2S (Trivalent) | Qty: 8

#18. P/N: N510068515AA | Part name: Sensor | Remarks: PFMV530F-1-N-X518B | Qty: 2

#19. P/N: N610078616AA | Part name: Sensor | Qty: 2

#20. P/N: N510059196AA | Part name: Element | Remarks: ZS-36-A-X264 | Qty: 10

#21. P/N: N510059865AA | Part name: O-Ring | Remarks: ZS-36-A-X271 | Qty: 10

#22. P/N: N510067900AA | Part name: Cap | Remarks: ZS-36-A-X314 | Qty: 1

#23. P/N: N210198705AB | Part name: Collar | Qty: 8

#24. P/N: N210198657AB | Part name: Bracket | Qty: 2

#25. P/N: N210198656AB | Part name: Bracket | Qty: 2

#26. P/N: KXF0C8ZAA00 | Part name: Bearing | Remarks: 683ZZ | Qty: 4
