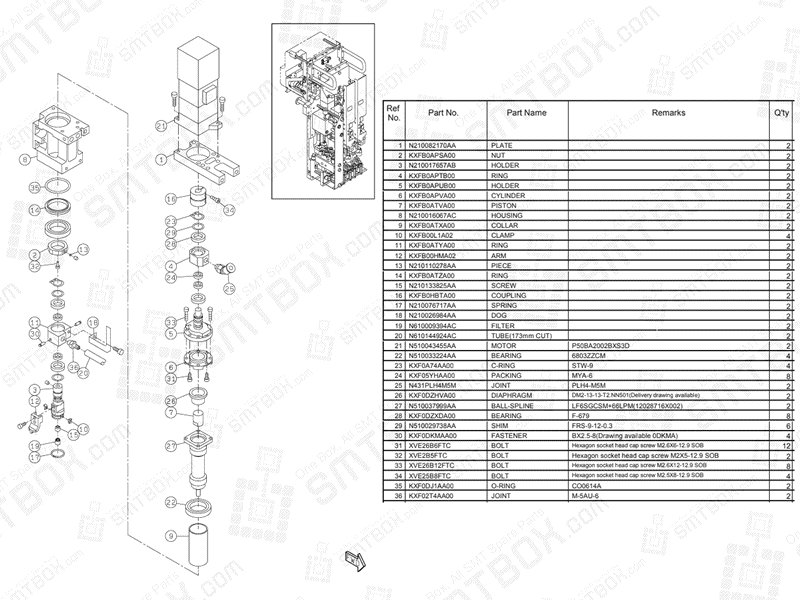

#1. P/N: N210082170AA | Part name: Plate | Qty: 2
#2. P/N: KXFB0APSA00 | Part name: Nut | Qty: 2
#3. P/N: N210017657AB | Part name: Holder | Qty: 2
#4. P/N: KXFB0APTB00 | Part name: Ring | Qty: 2
#5. P/N: KXFB0APUB00 | Part name: Holder | Qty: 2
#6. P/N: KXFB0APVA00 | Part name: Cylinder | Qty: 2
#7. P/N: KXFB0ATVA00 | Part name: Piston | Qty: 2
#8. P/N: N210016067AC | Part name: Housing | Qty: 2
#9. P/N: KXFB0ATXA00 | Part name: Collar | Qty: 2
#10. P/N: KXFB00L1A02 | Part name: Clamp | Qty: 4
#11. P/N: KXFB0ATYA00 | Part name: Ring | Qty: 2
#12. P/N: KXFB00HMA02 | Part name: Arm | Qty: 2
#13. P/N: N210110278AA | Part name: Piece | Qty: 2
#14. P/N: KXFB0ATZA00 | Part name: Ring | Qty: 2
#15. P/N: N210133825AA | Part name: Screw | Qty: 2
#16. P/N: KXFB0HBTA00 | Part name: Coupling | Qty: 2
#17. P/N: N210076717AA | Part name: Spring | Qty: 2
#18. P/N: N210026984AA | Part name: Dog | Qty: 2
#19. P/N: N610009394AC | Part name: Filter | Qty: 2
#20. P/N: N610144924AC | Part name: Tube(173Mm Cut) | Qty: 2
#21. P/N: N510043455AA | Part name: Motor | Remarks: P50BA2002BXS3D | Qty: 2
#22. P/N: N510033224AA | Part name: Bearing | Remarks: 6803ZZCM | Qty: 4
#23. P/N: KXF0A74AA00 | Part name: C-Ring | Remarks: STW-9 | Qty: 4
#24. P/N: KXF05YHAA00 | Part name: Packing | Remarks: MYA-6 | Qty: 8
#25. P/N: N431PLH4M5M | Part name: Joint | Remarks: PLH4-M5M | Qty: 2
#26. P/N: KXF0DZHVA00 | Part name: Diaphragm | Remarks: DM2-13-13-T2.NN501(Delivery drawing available) | Qty: 2
#27. P/N: N510037999AA | Part name: Ball-Spline | Remarks: LF6SGCSM+66LPM(12028716X002) | Qty: 2
#28. P/N: KXF0DZXDA00 | Part name: Bearing | Remarks: F-679 | Qty: 8
#29. P/N: N510029738AA | Part name: Shim | Remarks: FRS-9-12-0.3 | Qty: 6
#30. P/N: KXF0DKMAA00 | Part name: Fastener | Remarks: BX2.5-8(Drawing available 0DKMA) | Qty: 4
#31. P/N: XVE26B6FTC | Part name: Bolt | Remarks: Hexagon socket head cap screw M2.6X6-12.9 SOB | Qty: 12
#32. P/N: XVE2B5FTC | Part name: Bolt | Remarks: Hexagon socket head cap screw M2X5-12.9 SOB | Qty: 2
#33. P/N: XVE26B12FTC | Part name: Bolt | Remarks: Hexagon socket head cap screw M2.6X12-12.9 SOB | Qty: 8
#34. P/N: XVE25B8FTC | Part name: Bolt | Remarks: Hexagon socket head cap screw M2.5X8-12.9 SOB | Qty: 4
#35. P/N: KXF0DJ1AA00 | Part name: O-Ring | Remarks:CO0614A | Qty: 2
#36. P/N: KXF02T4AA00 | Part name: Joint | Remarks:M-5AU-6 | Qty: 2
