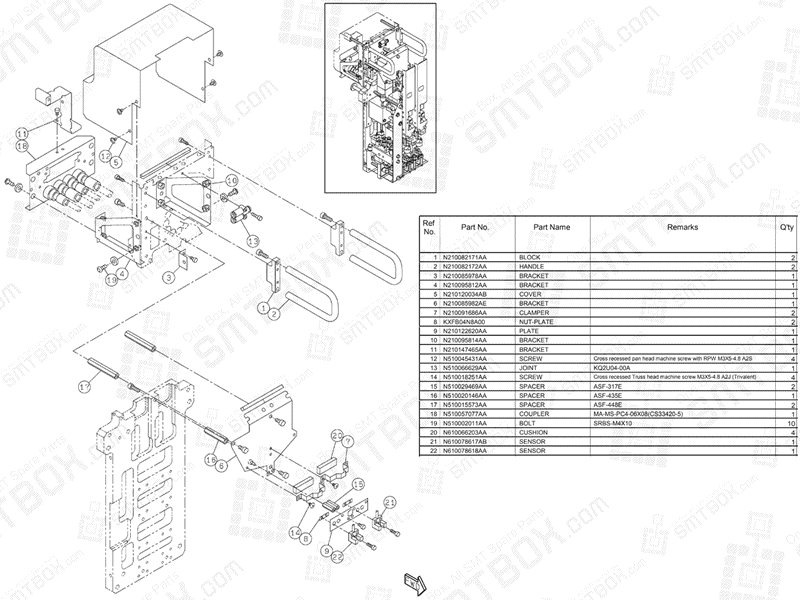

#1. P/N: N210082171AA | Part name: Block | Qty: 2
#2. P/N: N210082172AA | Part name: Handle | Qty: 2
#3. P/N: N210085978AA | Part name: Bracket | Qty: 1
#4. P/N: N210095812AA | Part name: Bracket | Qty: 1
#5. P/N: N210120034AB | Part name: Cover | Qty: 1
#6. P/N: N210085982AE | Part name: Bracket | Qty: 1
#7. P/N: N210091686AA | Part name: Clamper | Qty: 2
#8. P/N: KXFB04N8A00 | Part name: Nut Plate | Qty: 2
#9. P/N: N210122620AA | Part name: Plate | Qty: 1
#10. P/N: N210095814AA | Part name: Bracket | Qty: 1
#11. P/N: N210147465AA | Part name: Bracket | Qty: 1
#12. P/N: N510045431AA | Part name: Screw | Remarks: Cross recessed pan head machine screw with RPW M3X5-4.8 A2S | Qty: 4
#13. P/N: N510066629AA | Part name: Joint | Remarks: KQ2U04-00A | Qty: 1
#14. P/N: N510018251AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M3X5-4.8 A2J (Trivalent) | Qty: 4
#15. P/N: N510029469AA | Part name: Spacer | Remarks: ASF-317E | Qty: 2
#16. P/N: N510020146AA | Part name: Spacer | Remarks: ASF-435E | Qty: 1
#17. P/N: N510015573AA | Part name: Spacer | Remarks: ASF-448E | Qty: 2
#18. P/N: N510057077AA | Part name: Coupler | Remarks: MA-MS-PC4-06X08(CS33420-5) | Qty: 1
#19. P/N: N510002011AA | Part name: Bolt | Remarks: SRBS-M4X10 | Qty: 10
#20. P/N: N610066203AA | Part name: Cushion | Qty: 4
#21. P/N: N610078617AB | Part name: Sensor | Qty: 1
#22. P/N: N610078618AA | Part name: Sensor | Qty: 1
