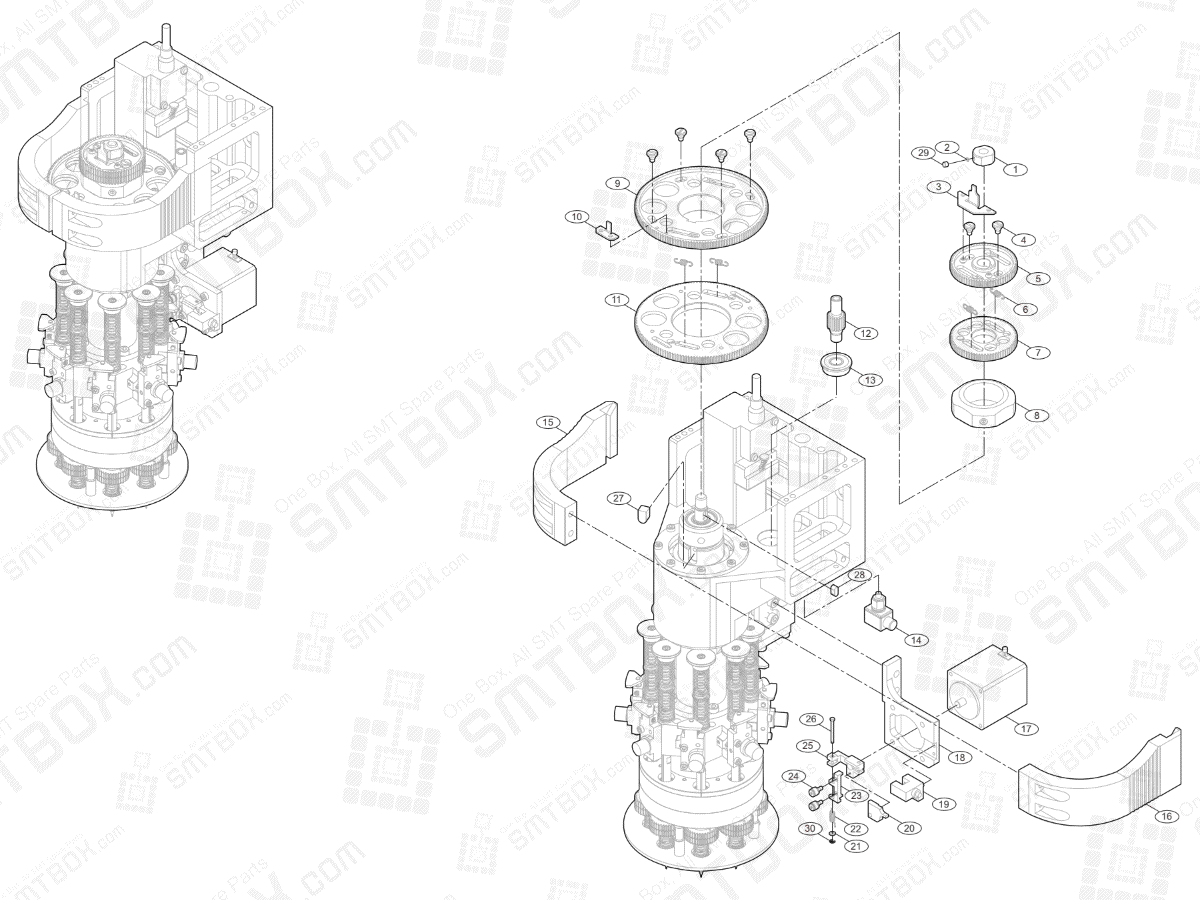

#1. P/N: FC18-000345A | Part name: Nut Lock V020 Lock Nut T 01 | Qty: 1
#2. P/N: FC28-901070 | Part name: Set Piece Sepns3 | Qty: 1
#3. P/N: FC29-001363A | Part name: Dog Mtv1Pp Hd Mf308T Dog A | Qty: 1
#4. P/N: J70551771A | Part name: V020 Stepped Screw A | Qty: 6
#5. P/N: MC11-000506A | Part name: Gear Mtv1Pp Hd Mf009T Gear B | Qty: 1
#6. P/N: J70551756A | Part name: V020 Gear Spring | Qty: 4
#7. P/N: MC11-000507A | Part name: Gear Mtv1Pp Hd Mf010T Gear C | Qty: 1
#8. P/N: FC18-000347A | Part name: Nut Lock V020 Lock Nut R 01 | Qty: 1
#9. P/N: MC11-000495A | Part name: Gear Mtv1Pp Hd Mf005R Gear B | Qty: 1
#10. P/N: FC29-001374A | Part name: Dog Mtv1Pp Hd Mf309R Dog B | Qty: 1
#11. P/N: MC11-000496A | Part name: Gear Mtv1Pp Hd Mf006R Gear C | Qty: 1
#12. P/N: J70551763A | Part name: V020 R Gear A | Qty: 1
#13. P/N: MC03-000017 | Part name: Bearing Ball Bearing F696Zz1 F696Zz1 | Qty: 1
#14. P/N: EP19-900082 | Part name: Pressure Sensor | Qty: 1
#15. P/N: FC15-003015A | Part name: Cover R Gear Cover Mf A | Qty: 1 | Remarks: FC15-001465A
#16. P/N: FC15-003016A | Part name: Cover R Gear Cover Mf B B | Qty: 1 | Remarks: FC15-001466A / FC15-001466B
#17. P/N: EP08-900080 | Part name: V1 Motor Ts3641N120 | Qty: 1
#18. P/N: FC09-000320B | Part name: Bracket Motor V020 Motor Bracket B | Qty: 1
#19. P/N: EP19-900134 | Part name: Micro Photo Sensor Pm F24 | Qty: 1 | Remarks: EP02-001006A(CABLE)
#20. P/N: FC29-001924A | Part name: Dog | Qty: 1
#21. P/N: FC18-000565 | Part name: Washer Flat Washer 18X35X03 3.5 1.8 0.3 | Qty: 1
#22. P/N: FC38-000075A | Part name: Spring Tor V020 V Spring Swp B | Qty: 1
#23. P/N: FC09-001675A | Part name: Bracket V020 Cam Arm C | Qty: 1
#24. P/N: MC11-900058 | Part name: Cam Follower | Qty: 2
#25. P/N: FC09-001842A | Part name: Bracket V020 Shaft Holder V | Qty: 1
#26. P/N: J70551761A | Part name: V020 Pin V J70551761A | Qty: 1
#27. P/N: FC23-000022 | Part name: Key/Keystock Parallel Key Kegf5 8 | Qty: 1
#28. P/N: MC19-900008 | Part name: Parallel Key | Qty: 1
#29. P/N: FC18-901954 | Part name: Socket Set Screw | Qty: 1
#30. P/N: FC18-901346 | Part name: E Ring[Netw1.2] | Qty: 1
