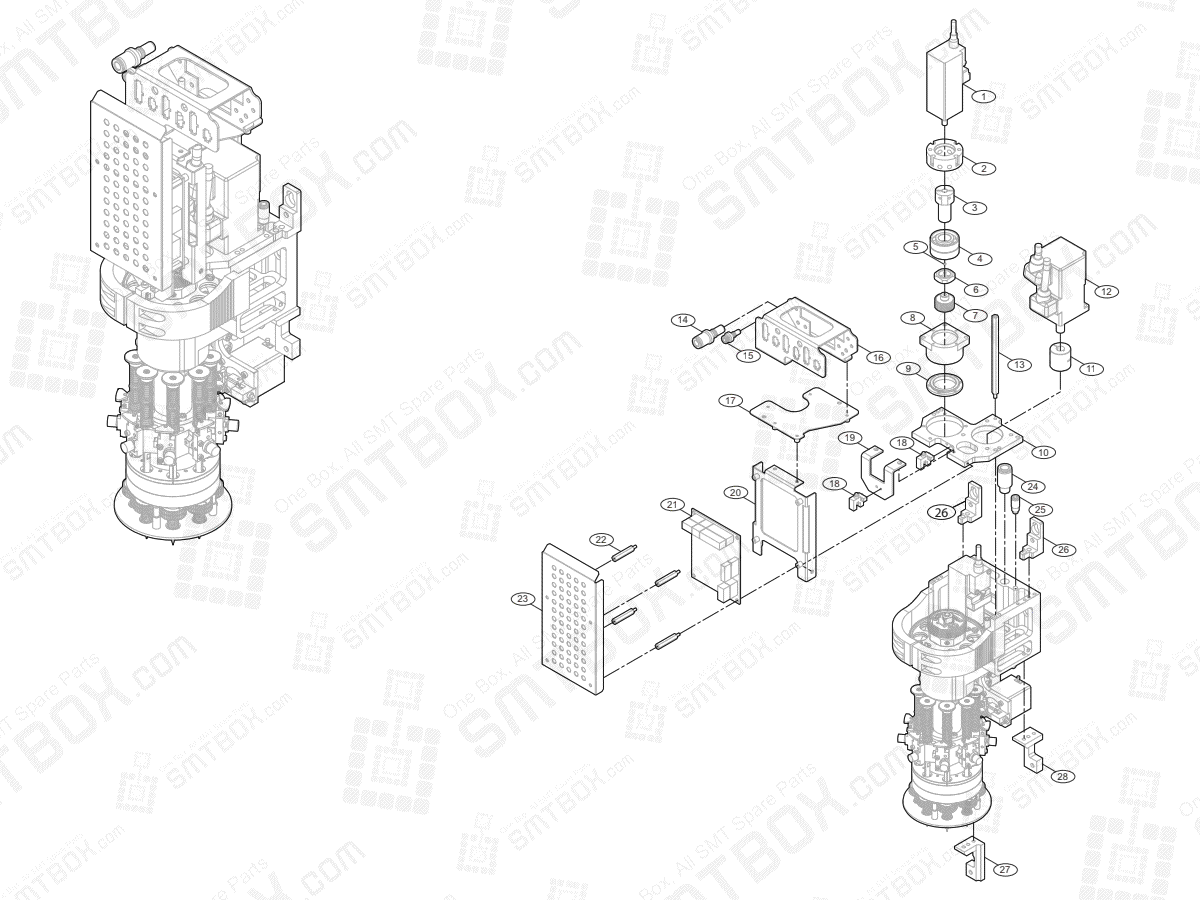

#1. P/N:EP08-000004A | Part name: Motor Servo Hf Kp0536 S1 | Qty: 1 | Remarks: TH-AXIS
#2. P/N:FC07-000211B | Part name: Block Motor Block | Qty: 1 | Remarks: FC07-000211A
#3. P/N:FC22-000010B | Part name: Joint V020 Joint Shaft 01 B | Qty: 1
#4. P/N:MC03-000137 | Part name: Bearing Ball Bearing 7001Awdbl Ijk | Qty: 1
#5. P/N:FC28-901070 | Part name: Set Piece Sepns3 | Qty: 1
#6. P/N:FC18-000346A | Part name: Nut Lock V020 Lock Nut Tm 01 | Qty: 1
#7. P/N:MC11-000290B | Part name: Gear Spur V021 T Gear A01 B | Qty: 1
#8. P/N:MC04-000006A | Part name: Housing Bearing Bearing Housing | Qty: 1
#9. P/N:FC30-000633A | Part name: Plate V020 Bearing Plate C01 | Qty: 1
#10. P/N:FC30-000972A | Part name: Plate Mtv1Pp Hd Mf011Motor Plate B | Qty: 1 | Remarks: Connector type: MOLEX
#10. P/N:FC30-000972B | Part name: Plate Mtv1Pp Hd Mf011Motor Plate B2 | Qty: 1 | Remarks: Connector type: JST
#11. P/N:FC14-900268 | Part name: Coupling Fc14 900268 | Qty: 1
#12. P/N:AM03-017781B | Part name: Cable Assy New 30W Th Motor Cable | Qty: 1 | Remarks: AM03-017781A
#13. P/N:FC28-000654A | Part name: Pole Mf Base Pole | Qty: 1 | Remarks: FC18-001109 / FC18-000581A
#14. P/N:FC14-000260 | Part name: Coupler Plug Kk3P 06H Smc | Qty: 1
#15. P/N:FC14-000261 | Part name: Coupler Plug Kk2P 04H Smc | Qty: 1
#16. P/N:FC09-004010A | Part name: Bracket Mf Drawer Bkt Bol | Qty: 1 | Remarks: FC09-001882A
#17. P/N:FC05-000387A | Part name: Base Mf Con Base 20 | Qty: 1 | Remarks: FC05-000181A
#18. P/N:EP19-900134 | Part name: Micro Photo Sensor Pm F24 | Qty: 2
#19. P/N:FC09-001940A | Part name: Bracket Mtv1Pp Hd Mf307R Sns Bkt B | Qty: 1
#20. P/N:FC05-000182A | Part name: Base Mtv1Pp Hd Mf303Pcb Base A | Qty: 1
#21. P/N:EP06-000472 | Part name: Servo Control Drive D4910V121 | Qty: 1 | Remarks: EP06-000472/ EP06-001006 / EP06-001012
#22. P/N:FC18-000114A | Part name: Stud Support Stud S25 25 Me1:Steel | Qty: 2
#23. P/N:FC15-001057A | Part name: Cover Front Cover | Qty: 1 | Remarks: Connector type: MOLEX
#23. P/N:FC30-002041A | Part name: Plate Front Cover A | Qty: 1 | Remarks: Connector type: JST
#24. P/N:HP06-900153 | Part name: Fitting Kq2S08 01S Smc | Qty: 1
#25. P/N:HP06-900016 | Part name: Fitting [Kq2S04 M5/Poc4 M5M] | Qty: 1
#26. P/N:FC07-000456A | Part name: Block Mtv1Pp Hd Mf001Carry Block A | Qty: 2
#27. P/N:FC07-000457A | Part name: Block Mtv1Pp Hd Mf002Carry Block L | Qty: 1
#28. P/N:FC07-000458A | Part name: Block Mtv1Pp Hd Mf003Carry Block R | Qty: 1
#ADD. P/N:FC09-004051B | Part name: Bracket Pcb Amp Base B | Qty: 1 | Remarks: Connector type: JST, MFH ONLY
#ADD. P/N:FC29-006712A | Part name: Guide Mtv1Pp Hd Sm314 V Guide | Qty: 1 | Remarks: Connector type: JST, MFH ONLY
#ADD. P/N:FC09-006254A | Part name: Bracket Connector Mf Cone Bkt B | Qty: 1 | Remarks: Connector type: JST, MFH ONLY
#ADD. P/N:FC07-001374A | Part name: Block Carry Block Ul | Qty: 1 | Remarks: Connector type: JST, MFH ONLY
#ADD. P/N:FC07-001375A | Part name: Block Carry Block Ur | Qty: 1 | Remarks: Connector type: JST, MFH ONLY
#ADD. P/N:FC29-003166A | Part name: Stand Back Shaft U | Qty: 1 | Remarks: Connector type: JST, MFH ONLY
