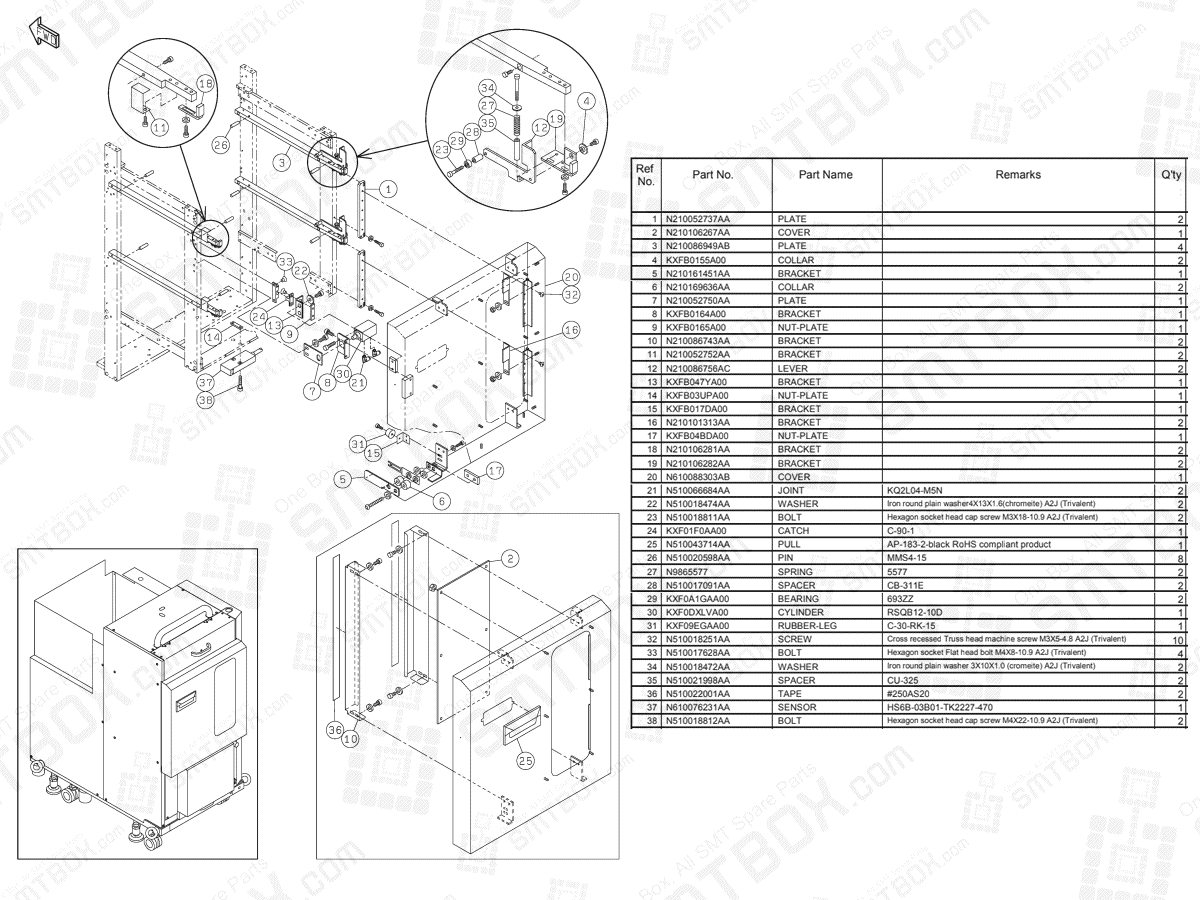

Tray Feeder Main Body N610074920AA KN610074920AA-31-5

#1. P/N: N210052737AA | Part name: Plate | Qty: 2

#2. P/N: N210106267AA | Part name: Cover | Qty: 1

#3. P/N: N210086949AB | Part name: Plate | Qty: 4

#4. P/N: KXFB0155A00 | Part name: Collar | Qty: 2

#5. P/N: N210161451AA | Part name: Bracket | Qty: 1

#6. P/N: N210169636AA | Part name: Collar | Qty: 2

#7. P/N: N210052750AA | Part name: Plate | Qty: 1

#8. P/N: KXFB0164A00 | Part name: Bracket | Qty: 1

#9. P/N: KXFB0165A00 | Part name: Nut-Plate | Qty: 1

#10. P/N: N210086743AA | Part name: Bracket | Qty: 2

#11. P/N: N210052752AA | Part name: Bracket | Qty: 2

#12. P/N: N210086756AC | Part name: Lever | Qty: 2

#13. P/N: KXFB047YA00 | Part name: Bracket | Qty: 1

#14. P/N: KXFB03UPA00 | Part name: Nut Plate | Qty: 1

#15. P/N: KXFB017DA00 | Part name: Bracket | Qty: 1

#16. P/N: N210101313AA | Part name: Bracket | Qty: 2

#17. P/N: KXFB04BDA00 | Part name: Nut Plate | Qty: 1

#18. P/N: N210106281AA | Part name: Bracket | Qty: 2

#19. P/N: N210106282AA | Part name: Bracket | Qty: 2

#20. P/N: N610088303AB | Part name: Cover | Qty: 1

#21. P/N: N510066684AA | Part name: Joint | Remarks: KQ2L04-M5N | Qty: 2

#22. P/N: N510018474AA | Part name: Washer | Remarks: Iron round plain washer4X13X1.6(chromeite) A2J (Trivalent) | Qty: 2

#23. P/N: N510018811AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M3X18-10.9 A2J (Trivalent) | Qty: 2

#24. P/N: KXF01F0AA00 | Part name: Catch | Remarks: C-90-1 | Qty: 1

#25. P/N: N510043714AA | Part name: Pull | Remarks: AP-183-2-black RoHS compliant product | Qty: 1

#26. P/N: N510020598AA | Part name: Pin | Remarks: MMS4-15 8

#27. P/N: N9865577 | Part name: Spring | Remarks: 5577 | Qty: 2

#28. P/N: N510017091AA | Part name: Spacer | Remarks: CB-311E | Qty: 2

#29. P/N: KXF0A1GAA00 | Part name: Bearing | Remarks: 693ZZ | Qty: 2

#30. P/N: KXF0DXLVA00 | Part name: Cylinder | Remarks: RSQB12-10D | Qty: 1

#31. P/N: KXF09EGAA00 | Part name: RubberLeg | Remarks: C-30-RK-15 | Qty: 1

#32. P/N: N510018251AA | Part name: Screw | Remarks: Cross recessed Truss head machine screw M3X5-4.8 A2J (Trivalent) 10

#33. P/N: N510017628AA | Part name: Bolt | Remarks: Hexagon socket Flat head bolt M4X8-10.9 A2J (Trivalent) | Qty: 4

#34. P/N: N510018472AA | Part name: Washer | Remarks: Iron round plain washer 3X10X1.0 (cromeite) A2J (Trivalent) | Qty: 2

#35. P/N: N510021998AA | Part name: Spacer | Remarks: CU-325 | Qty: 2

#36. P/N: N510022001AA | Part name: Tape | Remarks: #250AS20 | Qty: 2

#37. P/N: N610076231AA | Part name: Sensor | Remarks: HS6B-03B01-TK2227-470 1 S

#38. P/N: N510018812AA | Part name: Bolt | Remarks: Hexagon socket head cap screw M4X22-10.9 A2J (Trivalent) | Qty: 2
