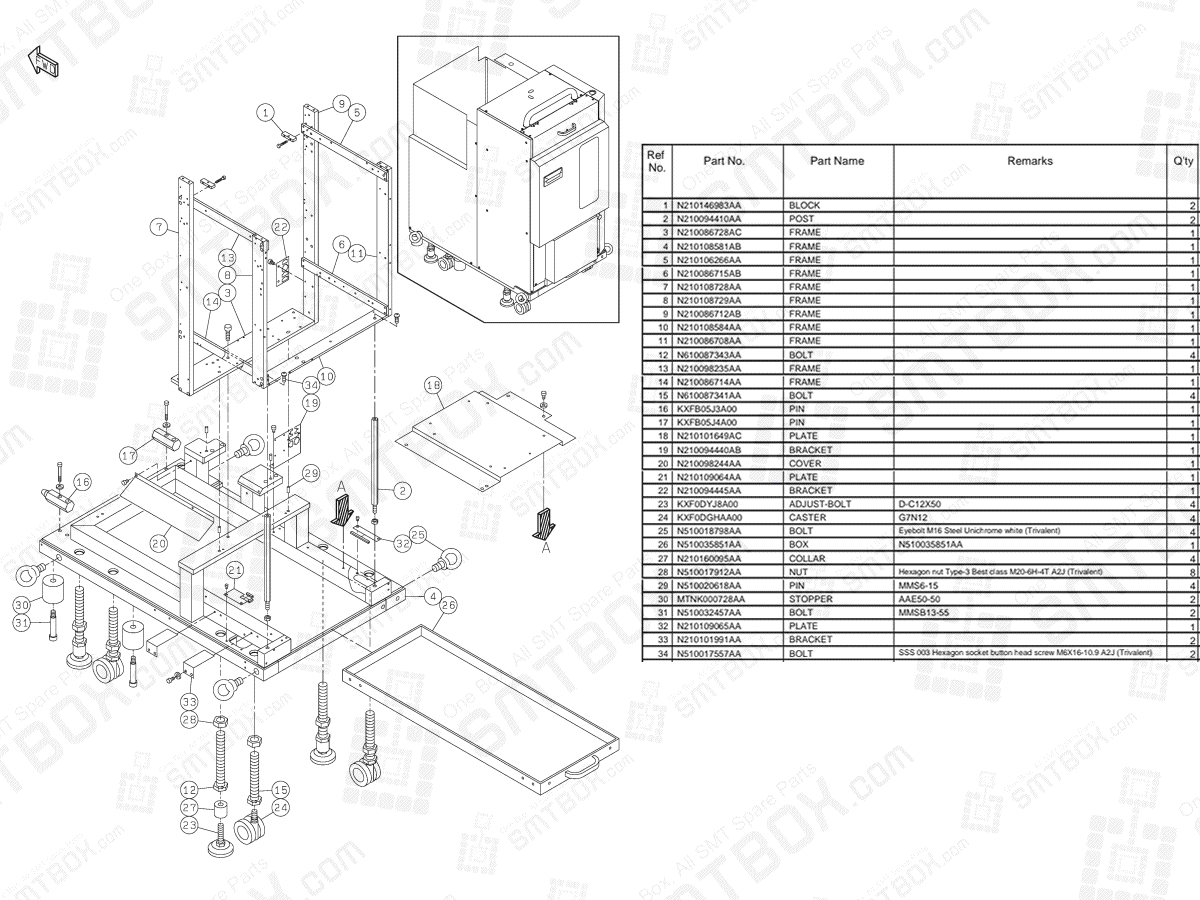

KN610074920AA-31-1 on NPM Tray Feeder Main Body

#1. P/N: N210146983AA | Part name: Block | Qty: 2

#2. P/N: N210094410AA | Part name: Post | Qty: 2

#3. P/N: N210086728AC | Part name: Frame | Qty: 1

#4. P/N: N210108581AB | Part name: Frame | Qty: 1

#5. P/N: N210106266AA | Part name: Frame | Qty: 1

#6. P/N: N210086715AB | Part name: Frame | Qty: 1

#7. P/N: N210108728AA | Part name: Frame | Qty: 1

#8. P/N: N210108729AA | Part name: Frame | Qty: 1

#9. P/N: N210086712AB | Part name: Frame | Qty: 1

#10. P/N: N210108584AA | Part name: Frame | Qty: 1

#11. P/N: N210086708AA | Part name: Frame | Qty: 1

#12. P/N: N610087343AA | Part name: Bolt | Qty: 4

#13. P/N: N210098235AA | Part name: Frame | Qty: 1

#14. P/N: N210086714AA | Part name: Frame | Qty: 1

#15. P/N: N610087341AA | Part name: Bolt | Qty: 4

#16. P/N: KXFB05J3A00 | Part name: Pin | Qty: 1

#17. P/N: KXFB05J4A00 | Part name: Pin | Qty: 1

#18. P/N: N210101649AC | Part name: Plate | Qty: 1

#19. P/N: N210094440AB | Part name: Bracket | Qty: 1

#20. P/N: N210098244AA | Part name: Cover | Qty: 1

#21. P/N: N210109064AA | Part name: Plate | Qty: 1

#22. P/N: N210094445AA | Part name: Bracket | Qty: 1

#23. P/N: KXF0DYJ8A00 | Part name: Adjust Bolt | Remarks: D-C12X50 | Qty: 4

#24. P/N: KXF0DGHAA00 | Part name: Caster | Remarks: G7N12 | Qty: 4

#25. P/N: N510018798AA | Part name: Bolt | Remarks: Eyebolt M16 Steel Unichrome white (Trivalent) | Qty: 4

#26. P/N: N510035851AA | Part name: Box | Remarks: N510035851AA | Qty: 1

#27. P/N: N210160095AA | Part name: Collar | Qty: 4

#28. P/N: N510017912AA | Part name: Nut | Remarks: Hexagon nut Type-3 Best class M20-6H-4T A2J (Trivalent) | Qty: 8

#29. P/N: N510020618AA | Part name: Pin | Remarks: MMS6-15 | Qty: 4

#30. P/N: MTNK000728AA | Part name: Stopper | Remarks: AAE50-50 | Qty: 2

#31. P/N: N510032457AA | Part name: Bolt | Remarks: MMSB13-55 | Qty: 2

#32. P/N: N210109065AA | Part name: Plate | Qty: 1

#33. P/N: N210101991AA | Part name: Bracket | Qty: 2

#34. P/N: N510017557AA | Part name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M6X16-10.9 A2J (Trivalent) | Qty: 2
