JUKI Long Board Option For Led Strip Lighting 800mm(31.5″) Circuits

JUKI KE 2070 KE 2080 KE 2080R 40044239 NOZZLE ASSEMBLY 508C side b

1. Indexing a Board Twice

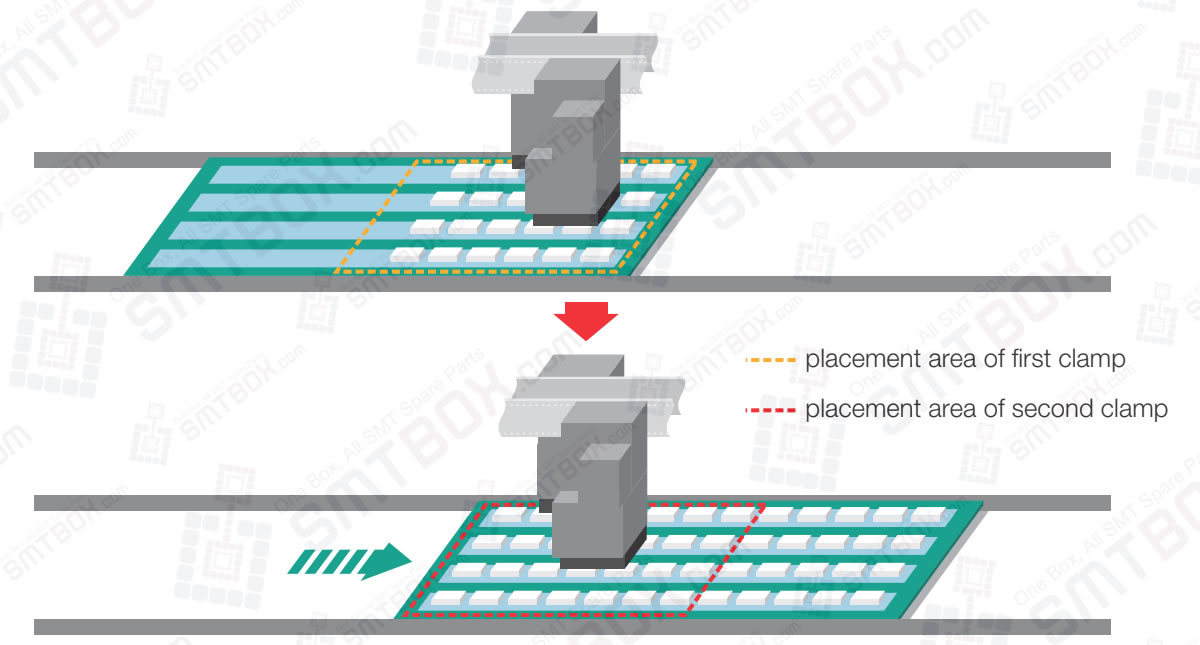

JUKI SMT Placement Area Of First Clamp Placement Area Of Second Clamp

Capable of placing longer boards up to 800mm (31.5″) by automatically indexing the board twice. Ideally suited for production of boards for LED lighting.

2. Solder Recognition Lighting

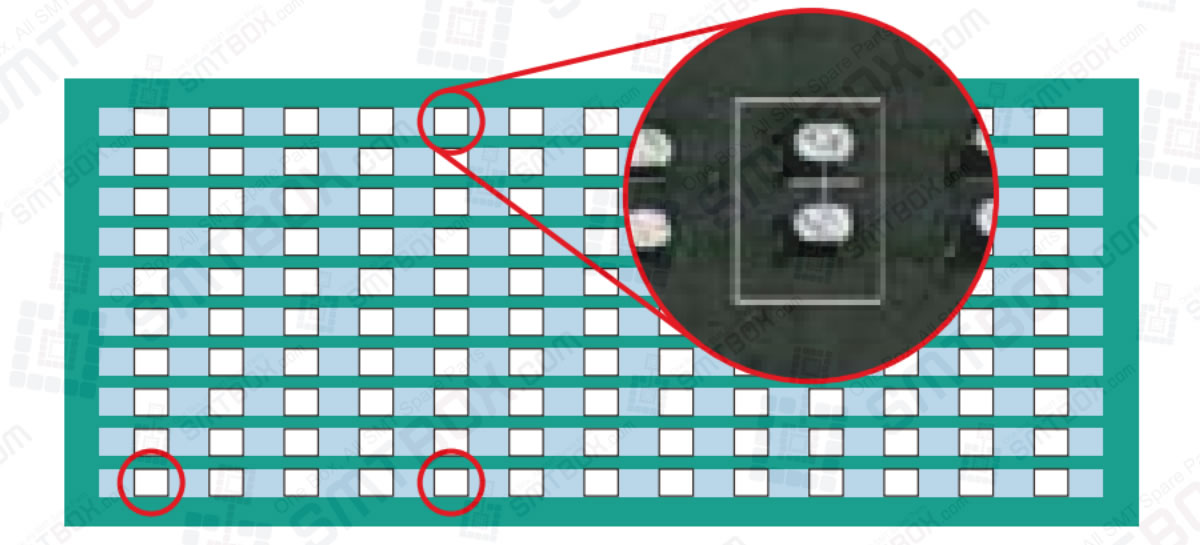

JUKI SMT Solder Recognition Lighting And LED Binning Control

Boards without standard fiducial marks can also be handled by using solder paste on pads as fiducials, thus guaranteeing high accuracy placement.

3. LED Binning Control

LEDs are typically sorted into bins according to their brightness. Some applications require all LEDs placed on a board to be from the same bin code to ensure uniformity of the end product. LED binning control on the placement machine will count the number of LEDs on each feeder and display a warning if there are not enough to complete the board.

4. List of applicable board sizes

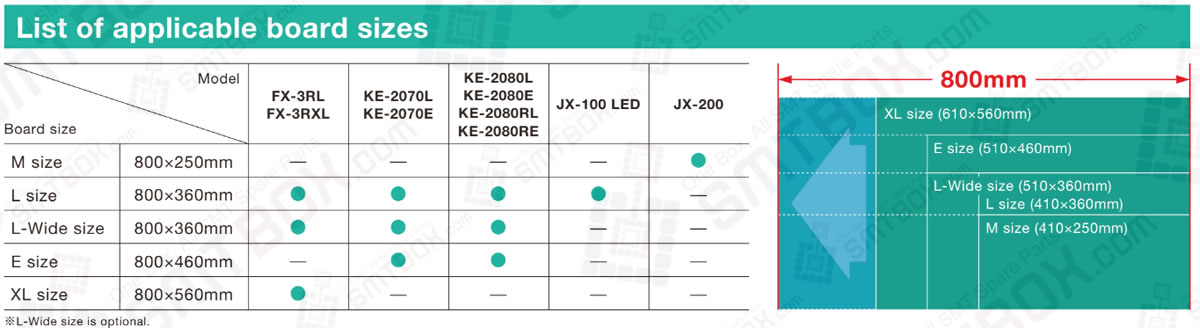

JUKI SMT List Of Applicable Board Sizes

M size(800*250mm): JX-200

L size(800*360mm): FX-3RL, FX-3RXL, KE-2070L, KE-2070E, KE-2080L, KE-2080E, KE-2080RL, KE-2080RE and JX-100 LED

L-wide size(800*360mm): FX-3RL, FX-3RXL, KE-2070L, KE-2070E, KE-2080L, KE-2080E, KE-2080RL and KE-2080RE

E size(800*460mm): KE-2070L, KE-2070E, KE-2080L, KE-2080E, KE-2080RL and KE-2080RE

XL size(800*560mm): FX-3RL and FX-3RXL

5. SMT Nozzles for LED components, a variety of original and customzied nozzles for placing LED components.

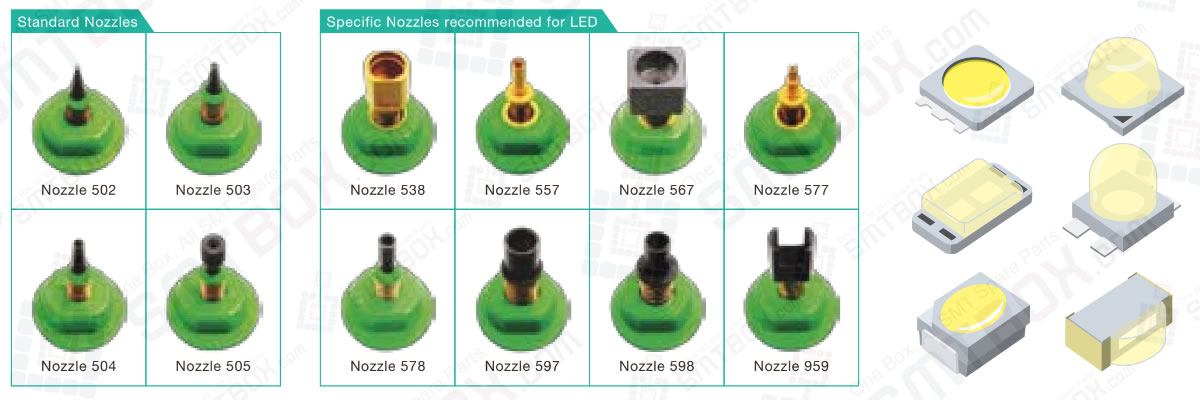

JUKI SMT Nozzles For Led Components A Variety Of Original And Customzied Nozzles For Placing Led Components

Standard nozzles: 502, 503, 504 and 505.

Specific Custom Design Smt Nozzles recommended for LED: 538, 557, 567, 577, 578, 597, 598 and 959.
