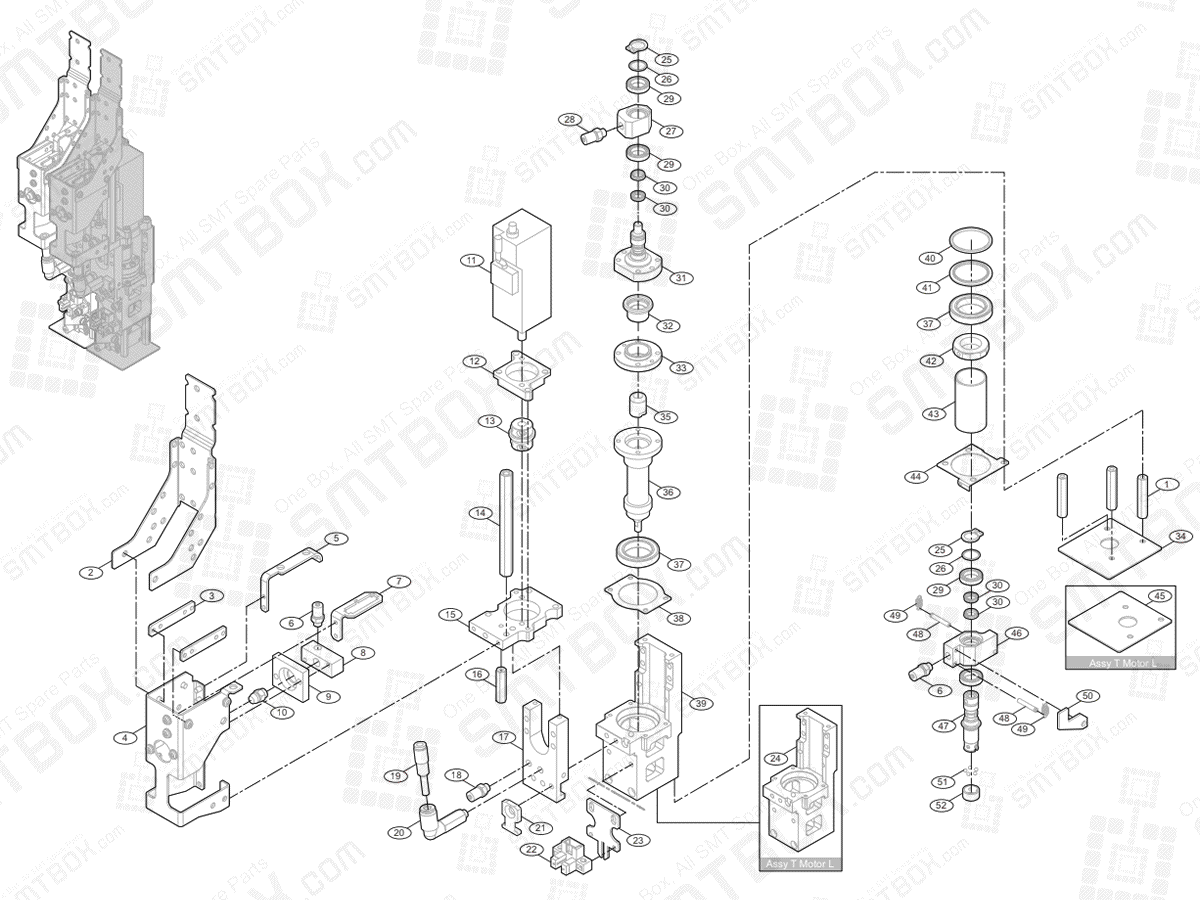

HPH(2/3) (Option) on Hanwha (Samsung Techwin) Excellent Modular EXCEN PRO (D) (M) (L)

HPH2 3 Option On Hanwha Samsung Techwin Excellent Modular Excen Pro D M L

#1. P/N: FC18-001389 | Part name: Spacer Asl 329E | Qty: 3

#2. P/N: FC09-002016A | Part name: Bracket Z Cable Spcc Pfznni W | Qty: 1

#3. P/N: FC30-001024A | Part name: Plate Nut Spcc | Qty: 2

#4. P/N: FC09-002015A | Part name: Bracket Z Stroke Spcc Pfznni W | Qty: 1

#5. P/N: FC29-001038A | Part name: Support Support Tube Grease Spcc | Qty: 1

#6. P/N: HP06-000218 | Part name: Fitting Nipple Miniature Nipple 4 M5 | Qty: 1

#7. P/N: FC09-001436A | Part name: Bracket Bracket Connecter Spcc | Qty: 1

#8. P/N: FC14-000227A | Part name: Joint Connect Terminal G Nipple A6063 T5 | Qty: 1

#9. P/N: FC09-002533A | Part name: Bracket Bracket 1 | Qty: 1

#10. P/N: FC28-000058 | Part name: Nipple A Mt6X1 | Qty: 1

#11. P/N: AM03-014266A | Part name: Cable Assy V1+ Hph T Motor (30W) | Qty: 1

#12. P/N: FC29-001029A | Part name: Holder Holder Motor A5056 H34 | Qty: 1

#13. P/N: MC22-000076 | Part name: Coupling Sakai Ra16C 5X5 | Qty: 1

#14. P/N: FC18-000736A | Part name: Spacer M4X75 | Qty: 1

#15. P/N: FC29-001015A | Part name: Holder Holder Motor T A5052 H34 | Qty: 1

#16. P/N: FC18-000178 | Part name: Spacer M3X23 | Qty: 1

#17. P/N: FC30-001019B | Part name: Plate Cover Plate | Qty: 1 | Remarks: FC30-001019A

#18. P/N: HP06-000218 | Part name: Fitting Nipple Miniature Nipple 4 M5 | Qty: 1

#19. P/N: HP04-900036 | Part name: Suction Filter Vyf44 M 50M | Qty: 1

#20. P/N: HP06-000292 | Part name: Fitting Kq2W04 M5 Elbow Onetouch Tap | Qty: 1

#21. P/N: FC18-903190 | Part name: Profile Mount Dia4.0 | Qty: 1

#22. P/N: EP19-000257 | Part name: Sensor Ee Sx971P C1 5Mm 24V | Qty: 1

#23. P/N: FC09-001437A | Part name: Bracket Bracket Pms Sus304 | Qty: 1

#24. P/N: FC09-002006B | Part name: Bracket Holder L | Qty: 1

#25. P/N: FC18-001080 | Part name: Ring Snap C Ring For Shaft 9 Stw 9 | Qty: 2

#26. P/N: FC18-000934 | Part name: Washer Flat Frs 9 11 0.5 | Qty: 2

#27. P/N: FC29-001027A | Part name: Housing Housing Bf A5052 H34 | Qty: 1

#28. P/N: HP06-000218 | Part name: Fitting Nipple Miniature Nipple 4 M5 | Qty: 1

#29. P/N: MC03-000187 | Part name: Bearing Ball Bearing 9 14 Radiul | Qty: 4

#30. P/N: HP07-000149 | Part name: Packing Y Packing | Qty: 4

#31. P/N: MC19-000303A | Part name: Shaft Shaft Bf A2017 T4 | Qty: 1

#32. P/N: RM04-000007 | Part name: Film Etc Bellowfram | Qty: 1

#33. P/N: FC29-001020A | Part name: Collar Collar Bf A2017 T4 | Qty: 1

#34. P/N: FC30-001022A | Part name: Plate Refrector R Spcc | Qty: 1 | Remarks: FC09-002007A

#35. P/N: FC29-001021A | Part name: Cap Cap Bf A5056 H34 | Qty: 1

#36. P/N: MC13-000240 | Part name: Spline Ball Lf6Sgcsm 61Lp | Qty: 1 | Old P/N: MC13-000181

#37. P/N: MC03-000181 | Part name: Bearing Ball 6803Zz Gp5Ns7 17 26 Shield | Qty: 2

#38. P/N: FC30-001270A | Part name: Plate Holder Plate | Qty: 1

#39. P/N: FC09-002007B | Part name: Bracket Holder R | Qty: 1 | Remarks: FC09-002007A

#40. P/N: HP12-000100 | Part name: Sealring O Ring | Qty: 1

#41. P/N: FC29-001023A | Part name: Pusher Pusher Bearing A5056 H34 | Qty: 1

#42. P/N: FC18-000447A | Part name: Nut Nut Spline Sus303 | Qty: 1

#43. P/N: FC18-000445A | Part name: Spacer Spacer Housing Sus304 | Qty: 1

#44. P/N: FC09-002014A | Part name: Bracket Spring Hook Spcc Pfznni W | Qty: 1

#45. P/N: FC30-001023A | Part name: Plate Refrector L Spcc | Qty: 1

#46. P/N: FC29-001025A | Part name: Housing Housing Nz Hldr A5052 H34 | Qty: 1

#47. P/N: FC39-000710B | Part name: Body Body Nz Hldr Skd11 | Qty: 1 | Remarks: FC39-000710A

#48. P/N: FC18-000935 | Part name: Pin Fastener | Qty: 2

#49. P/N: FC38-000062A | Part name: Spring Spring Nz Hldr Swp B | Qty: 2

#50. P/N: FC29-001036A | Part name: Dog Dog Cushion Spcc | Qty: 1

#51. P/N: J7055140A | Part name: Steel Ball [Dia2 Sus304] | Qty: 5

#52. P/N: J72550021C | Part name: Silicon Tube(Black) J72550021C | Qty: 1
