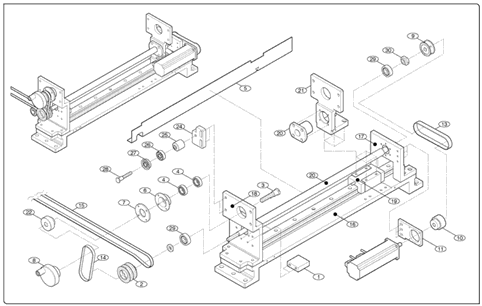

Exit Conveyor Assembly of Required Materials for Conveyor on Samsung SM321

Exit Conveyor Assembly of Required Materials for Conveyor on Samsung SM321
#1 P/N: J7053748A | Part Name: STOPPER-FRONT | Qty: 1
#2 P/N: J7153325A | Part Name: WIDTH PULLEY | Qty: 1
#3 P/N: J7053768A | Part Name: MANUAL SHAFT | Qty: 1
#4 P/N: J6601122A | Part Name: BEARING | Qty: 6 | Type: 6901ZZ
#5 P/N: J7053781A | Part Name: CONVEYOR CHIP COVER-R | Qty: 1
#6 P/N: J7053666A | Part Name: BEARING HOUSING SF | Qty: 3
#7 P/N: J7053034A | Part Name: BEARING NUT-SF | Qty: 3 | Type: 0135-641077
#8 P/N: J6402010A | Part Name: HANDLE | Qty: 1 | Type: HOK-50
#9 P/N: J7153330A | Part Name: PULLEY SHAFT | Qty: 1
10 P/N: J6609015B | Part Name: PULLEY-MOTOR | Qty: 1 | Type: P32-3M-9
11 P/N: J7053780A | Part Name: BRACKET-SERVO MOTOR | Qty: 1
12 P/N: J3108062A | Part Name: SERVO MOTOR | Qty: 1 | Type: MSMA012P1A01
13 P/N: J6602030A | Part Name: TIMING BELT | Qty: 1 | Type: 258-3M-9
14 P/N: J6602075A | Part Name: TIMING BELT | Qty: 1 | Type: 92XL-025
15 P/N: J6602074A | Part Name: TIMING BELT | Qty: 1 | Type: 025-XL-396-AJ
16 P/N: J7053788A | Part Name: SUPPORT-WIDE ADJUST | Qty: 1
17 P/N: J7053201A | Part Name: SCREW STAND | Qty: 1 | Type: 0145-641014
18 P/N: J7153404A | Part Name: FIX STAND | Qty: 1
19 P/N: J6607025A | Part Name: LM GUIDE (WIDTH) | Qty: 1 | Type: SBG20-SL-1-460-N
20 P/N: J6614006A | Part Name: LEAD SCREW | Qty: 1 | Type: DCM16 + 538.5L
21 P/N: J7053677A | Part Name: MOVE STAND | Qty: 1
22 P/N: J7153416A | Part Name: MANUAL PULLEY | Qty: 1
23 P/N: J7153326A | Part Name: WIDTH PULLEY COLLAR | Qty: 1
24 P/N: J7053660A | Part Name: TENSION BKT | Qty: 1
25 P/N: J7053661B | Part Name: WIDTH TENSION SPACER | Qty: 1
26 P/N: J6601109A | Part Name: BALL BEARING | Qty: 1 | Type: 608ZZ
27 P/N: J6601126A | Part Name: BALL BEARING | Qty: 1 | Type: F608ZZ
28 P/N: J7065362A | Part Name: TENSION BEARING PIN | Qty: 1
29 P/N: J6601008A | Part Name: BALL BEARING | Qty: 2 | Type: 6000ZZ
30 P/N: J7053194A | Part Name: BEARING NUT | Qty: 1 | Type: 0131-641016
