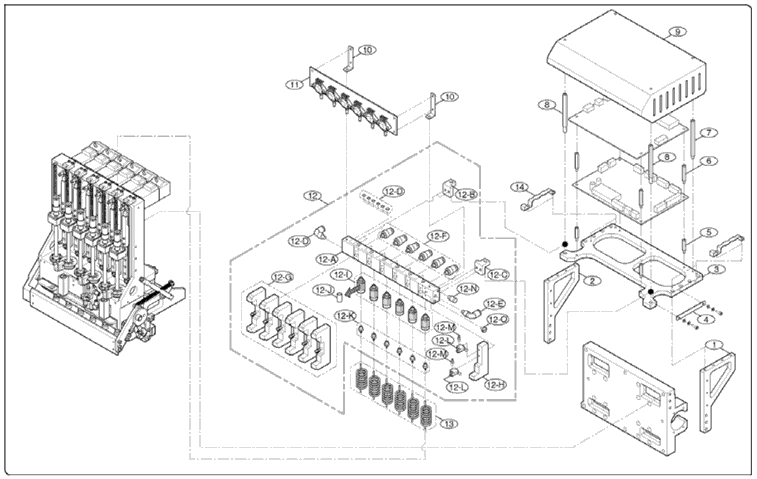

Carrier Assembly on Samsung Techwin SM321 SMT Component Placement Machine

#1 P/N: J7154099B | Part Name: RIGHT SIDE PLATE | Qty: 1 | Type: HARNESS-HEAD002
#2 P/N: J7154100B | Part Name: LEFT SIDE PLATE | Qty: 1
#3 P/N: J7154267A | Part Name: HARNESS PLATE | Qty: 1
#4 P/N: J7154105A | Part Name: SIDE CABLE TIE | Qty: | Qty: 2 | Type: HARNESS-HEAD013
#5 P/N: J6103023A | Part Name: HEX SUPPORT 20 | Qty: | Qty: 4 | Type: M3X20 (BOLT-NUT)
#6 P/N: J6103011A | Part Name: HEX SUPPORT 30 | Qty: | Qty: 4 | Type: M3X30 (BOLT-NUT)
#7 P/N: J7055660A | Part Name: HEAD COVER SUPPORT-R | Qty: 4
#8 P/N: J7055661A | Part Name: HEAD COVER SUPPORT-F | Qty: 1
#9 P/N: J7155569A | Part Name: HEAD TOP COVER | Qty: 1
#10 P/N: J7055662A | Part Name: VACUUM SENSOR BRACKET | Qty: 2
#11 P/N: J9060412A | Part Name: HEAD VACUUM SENSOR SUB BOARD | Qty: 1 | Type: REV 1.1
#12 P/N: J9055246D | Part Name: AIR MODULE | Qty: 1
#12-A P/N: J71551001A | Part Name: MANIFOLD | Qty: 1
#12-B P/N: J7155544A | Part Name: FOOT BRACKET-L | Qty: 1
#12-C P/N: J7155545A | Part Name: FOOT BRACKET-R | Qty: 1
#12-D P/N: J7155546A | Part Name: INSERT | Qty: 6
#12-E P/N: J6711260A | Part Name: ONE TOUCH FITTING | Qty: 2 | Type: FSE04-M5C
#12-F P/N: J6711261A | Part Name: ONE TOUCH FITTING | Qty: 6 | Type: FSC04-M5C
#12-G P/N: J6702048A | Part Name: SOLENOID VALVE | Qty: 6 | Type: VA01PEP34-1U-F
#12-H P/N: J6702049A | Part Name: SOLENOID VALVE | Qty: 1 | Type: RCS242-M3-D24NP
#12-I P/N: J9058090A | Part Name: FILTER ASSY | Qty: 6
#12-J P/N: J7458002A | Part Name: FILTER ELEMENT | Qty: 6 | Type: LF-M5-60-Z-ELEMENT
#12-K P/N: J6711262A | Part Name: MINI FITTING | Qty: 6 | Type: BC-03-M5
#12-L P/N: J6703039A | Part Name: SPEED CONTROLLER | Qty: 2 | Type: SPR-Z-M3N
#12-M P/N: J6711263A | Part Name: MINI FITTING | Qty: 2 | Type: BE-04-M3
#12-N P/N: J6705009A | Part Name: SILENCER | Qty: 1 | Type: AS-5
#12-O P/N: J6712016A | Part Name: PLUG | Qty: 1 | Type: N220 1900J
#13 P/N: J6713022B | Part Name: COIL TUBE(POLYURETHANE) | Qty: 6
#14 P/N: J7155571A | Part Name: TOP TIE MOUNT | Qty: 1
