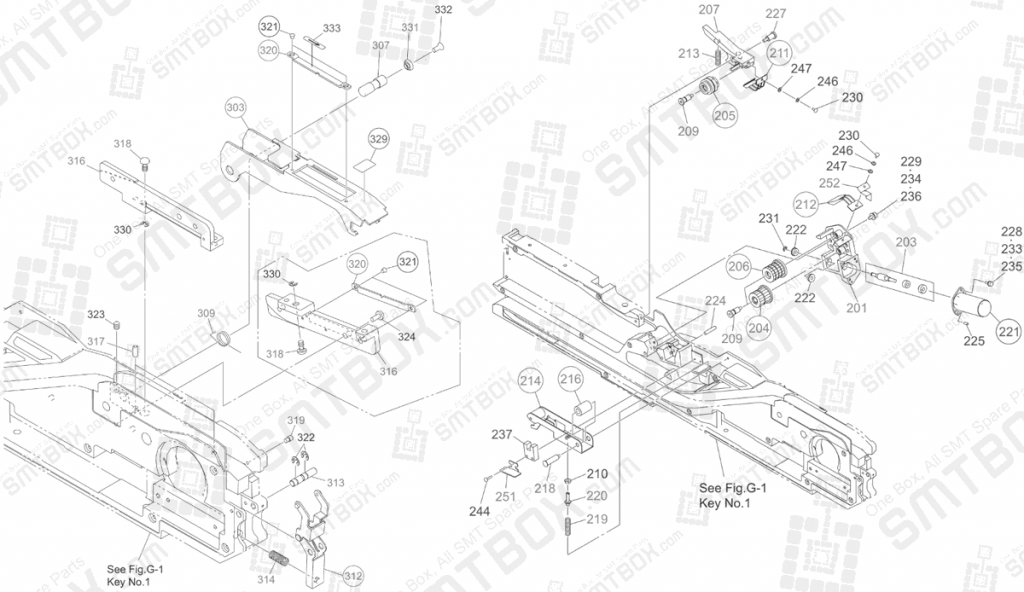

Cover Tape Winding Section and Suppressor Section on Yamaha SMT Tape Feeder Part List of GT-12161B GD-12161B

#201. P/N: 630 137 4932 | Base

#203. P/N: 630 126 6091 | Assy,Gear(Makitori)

#204. P/N: 630 135 2305 | Gear(Hasuba)

#205. P/N: 630 127 5055 | Gear(Hira-1)

#206. P/N: 630 135 1261 | Gear(Hira-2)

#207. P/N: 630 127 5079 | Lever(Kaijyo)

#209. P/N: 630 135 1254 | Pin,Locate(Siten-1)

#210. P/N: 411 141 0000 | Nut Hex

#211. P/N: 630 127 5093 | Cover(Makitori-1)

#212. P/N: 630 127 5109 | Cover(Makitori-2)

#213. P/N: 630 127 6601 | Spring,Comp

#214. P/N: 630 160 9508 | Assy,Lever(Makitori-L)

#216. P/N: 630 127 5147 | Roller(A)

#218. P/N: 630 127 5161 | Pin,Guide

#219. P/N: 630 127 5178 | Spring,Comp

#220. P/N: 630 126 6602 | Pin,Guide(Bane)

#221. P/N: 630 126 7715 | Motor,Dc

#222. P/N: 630 110 5390 | Bearing,Radial

#224. P/N: 630 126 5988 | Pin,Locate

#225. P/N: 630 126 6466 | Pin,Locate

#227. P/N: 630 160 9836 | Pin,Locate(Siten-2)

#228. P/N: 630 000 8494 | Bolt,Hex-Sct M2.5X6

#229. P/N: 630 000 7510 | Bolt,Hex-Sct M3X8

#230. P/N: 411 125 5403 | Scr Pan 2X4

#231. P/N: 411 000 9304 | Ring E

#233. P/N: 411 141 6606 | Washer Spr 2.5

#234. P/N: 411 141 2806 | Washer Spr

#235. P/N: 411 141 5708 | Washer F 2.5X5X0.5

#236. P/N: 411 141 3902 | Washer V 3X7X0.5

#237. P/N: 630 126 1621 | Sensor,Photo B03, ee-sx3144-p2

#244. P/N: 411 140 6300 | Scr Pan 2X8

#246. P/N: 411 141 2509 | Washer Spr

#247. P/N: 411 131 5305 | Washer F 2X4.3X0.3

#251. P/N: 630 129 3813 | Cover

#252. P/N: 630 150 2052 | Plate

#303. P/N: 630 166 8611 | Lever(Sup)

#307. P/N: 630 132 9185 | Pin,Guide(Sup)

#309. P/N: 630 158 3266 | Spring,Torsion

#312. P/N: 630 127 5338 | Assy,Hook(Front Hook)

#313. P/N: 630 129 2786 | Pin,Hinge(Front)

#314. P/N: 630 127 5406 | Spring,Comp

#316. P/N: 630 166 3500 | Chute

#317. P/N: 630 127 5437 | Pin,Locate(Chute)

#318. P/N: 630 127 5444 | Machine Screw

#319. P/N: 630 127 5451 | Pin,Locate

#320. P/N: 630 166 2695 | Plate(Sup)

#321. P/N: 630 166 4149 | Machine Screw

#322. P/N: 411 016 0203 | Ring E 2.5

#323. P/N: 630 008 2296 | Set Screw M4X4 Set

#324. P/N: 411 041 8908 | Scr Pan 3X6

#329. P/N: 630 130 2300 | Name Plate

#330. P/N: 411 000 9304 | Ring E

#331. P/N: 630 132 9208 | Washer

#332. P/N: 411 033 5700 | Scr Flt 2.5X6

#333. P/N: 630 166 9328 | Name Plate
