Air on Excellent Modular Excen Pro (D) Extension SMT

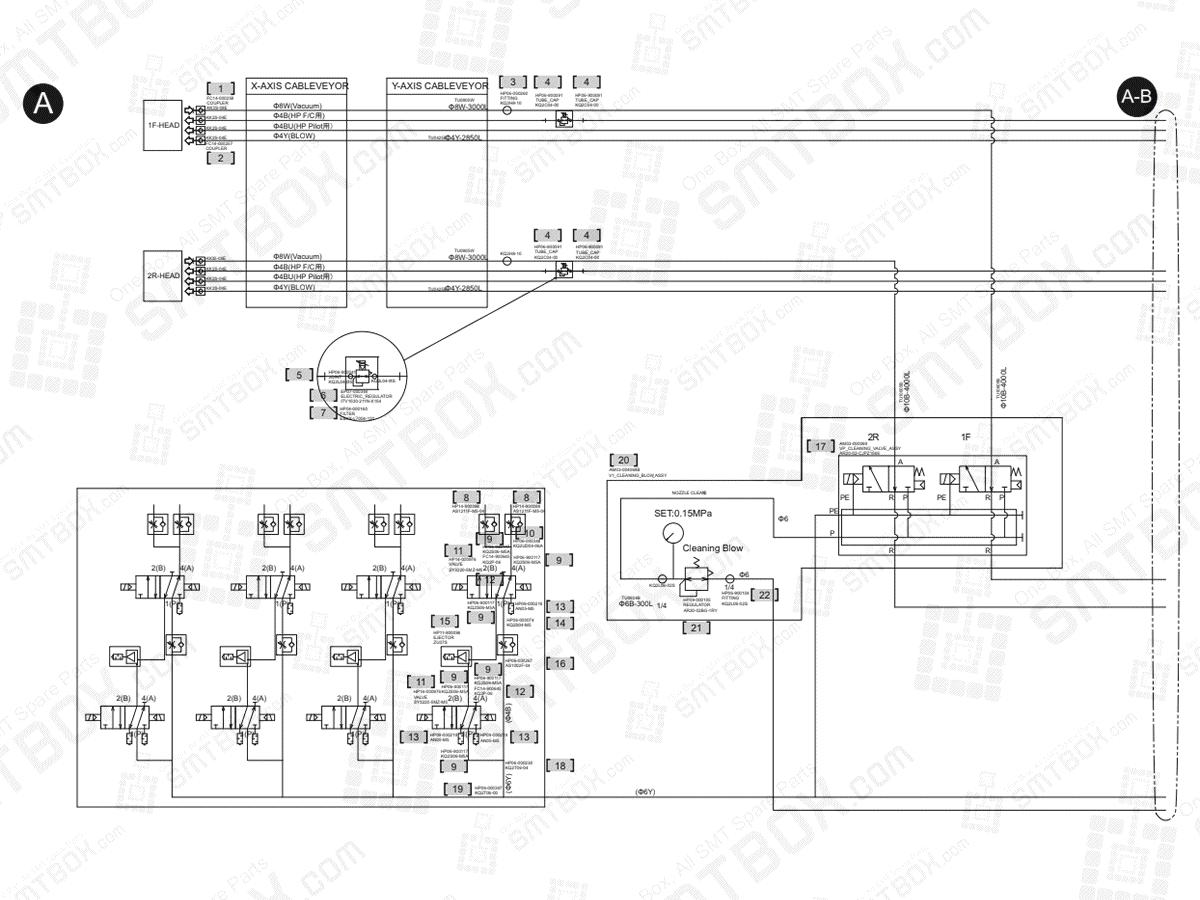

Air (2/5) on Hanwha (Samsung Techwin) Excellent Modular Excen Pro (D) Extension

#1. P/N: FC14-000258 | Part name: Coupler-Coupler Kk3S-08E Kk3S-08E | Qty: 1

#2. P/N: FC14-000257 | Part name: Coupler-Coupler Kk2S-04E Kk2S-04E | Qty: 3

#3. P/N: HP06-000260 | Part name: Fitting-Kq2H8-10 Kq2H8-10 Straight Type | Qty: 2

#4. P/N: HP06-900091 | Part name: Fitting Tube Cap Kq2C04-00A | Qty: 4

#5. P/N: HP06-900041 | Part name: Joint Kq2L04-01S | Qty: 4

#6. P/N: EP07-000344 | Part name: Regulator Electric-Itv1030-211N-X154 Smc | Qty: 2

#7. P/N: HP04-000160 | Part name: Filter Air Ebkx-L7004-120 Smc | Qty: 2

#8. P/N: HP14-900088 | Part name: Speed Controller[As1211F-M5-04] | Qty: 2

#9. P/N: HP06-900117 | Part name: Fitting Kq2S06-M5 | Qty: 24

#10. P/N: HP06-000348 | Part name: Fitting Kq2Ud04-06A Union One Touch 6-4 | Qty: 4

#11. P/N: HP14-000976 | Part name: Valve Solenoid Valve Tc Ad Pressure M5 | Qty: 8

#12. P/N: FC14-900645 | Part name: Plug Kq2P-06 | Qty: 8

#13. P/N: HP09-000219 | Part name: Silencer An05-M5 Thread | Qty: 12

#14. P/N: HP06-000074 | Part name: Fitting Straight Fitting Kq2S04-M5N Onet | Qty: 4

#15. P/N: HP11-900096 | Part name: Vacuum Generator Zu07S | Qty: 4

#16. P/N: HP06-000267 | Part name: Fitting As1002F-04 Speed Controller | Qty: 4

#17. P/N: AM03-000069 | Part name: Assy Air-Vp Clealing Valve Assy | Qty: 1

#18. P/N: HP06-000230 | Part name: Fitting Kq2T06-04 One Touch T 8 | Qty: 4

#19. P/N: HP06-000347 | Part name: Fitting Kq2T06-00A Tee One Touch 6 | Qty: 4

#20. P/N: AM03-004068B | Part name: Assy Air-V1 Cleanning Blow Assy | Qty: 1

#21. P/N: HP09-000105 | Part name: Regulator Regulator Ar20-02Bg-1Ry 0.2Mpa | Qty: 1

#22. P/N: HP06-900104 | Part name: Fitting Kq2L06-02S | Qty: 1

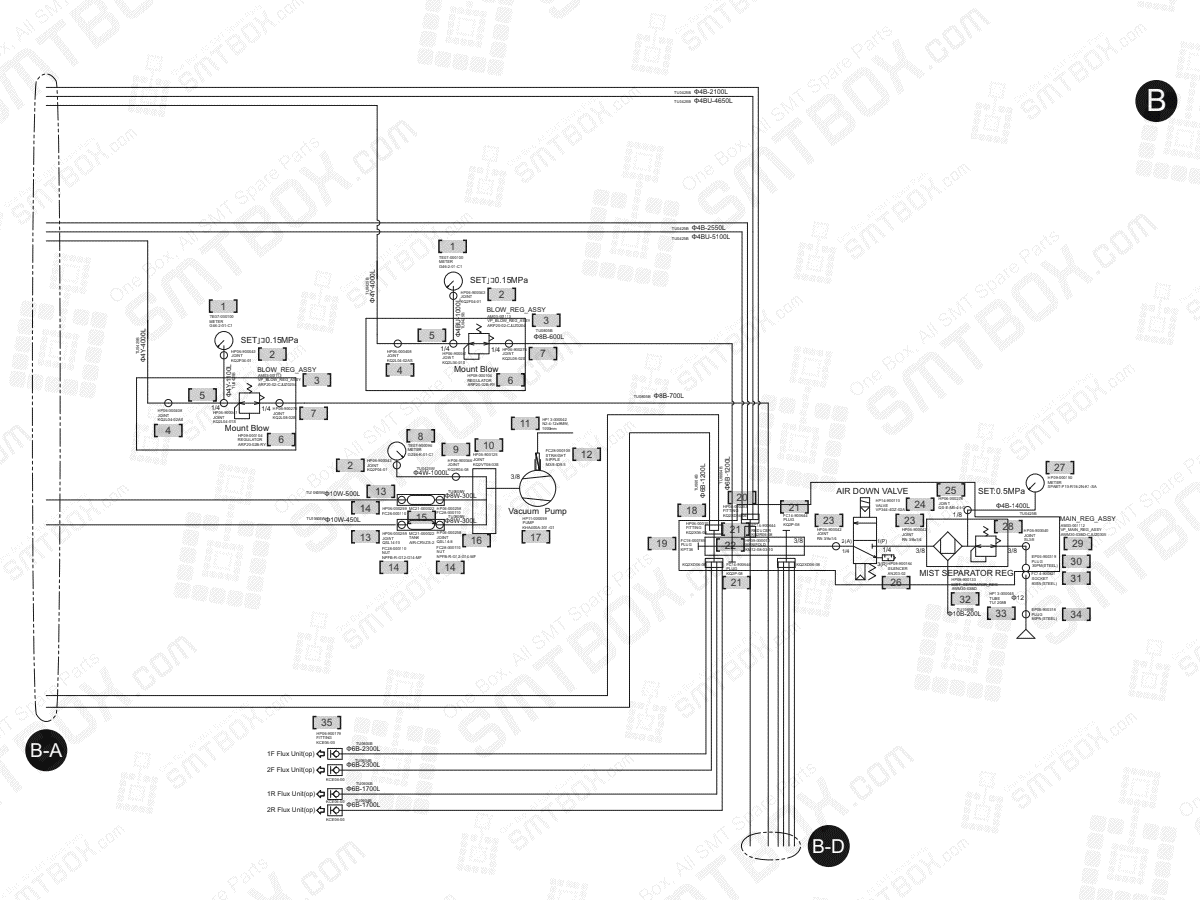

Air (3/5) on Hanwha (Samsung Techwin) Excellent Modular Excen Pro (D) Extension

#1. P/N: TE07-000100 | Part name: Gauge Pressure Meter | Qty: 1

#2. P/N: HP06-900043 | Part name: Joint Kq2F04-01 | Qty: 1

#3. P/N: AM03-001113 | Part name: Assy Air Mted Blowreg Arp20-02 Cjuz0204 | Qty: 1

#4. P/N: HP06-000408 | Part name: Fitting Kq2L04-02As | Qty: 1

#5. P/N: HP06-900041 | Part name: Joint Kq2L04-01S | Qty: 4

#6. P/N: HP09-000104 | Part name: Regulator Regulator Arp20-02B-Ry 0.2Mpa | Qty: 1

#7. P/N: HP06-900276 | Part name: Fitting [Kq2L08-02S] | Qty: 1

#8. P/N: TE07-900096 | Part name: Meter Gz46-K-01-C1 | Qty: 1

#9. P/N: HP06-900046 | Part name: Joint Kq2R04-08 | Qty: 2

#10. P/N: HP06-900125 | Part name: Fitting Kq2Vt08-03S | Qty: 2

#11. P/N: HP13-000042 | Part name: Tube Nylon Tube N2-4-12X9-Mw 12 Od12/Id9 | Qty: 2

#12. P/N: FC28-000105 | Part name: Nipple Straight Nipple M3/8-Id9.5 Brass | Qty: 1

#13. P/N: HP06-000259 | Part name: Fitting Qsl-14-10 Elbow Type Qsl-14-10 | Qty: 2

#14. P/N: FC28-000110 | Part name: Nipple Npfb-R-G12-G14-Mf | Qty: 4

#15. P/N: MC21-000022 | Part name: Tank Air Crvzs-2 | Qty: 2

#16. P/N: HP06-000258 | Part name: Fitting Qsl-14-8 Elbow Type Qsl-14-8 8 | Qty: 2

#17. P/N: HP11-000059 | Part name: Pump Pump Kha400A-301-G1 | Qty: 1

#18. P/N: HP06-000101 | Part name: Fitting Kq2X06-08 Onetouch ?6X?8 | Qty: 1

#19. P/N: FC18-000785 | Part name: Plug Kpt38 Sts Hex Rc3/8 10 Wht Rc3/8 Wh | Qty: 1

#20. P/N: HP06-000253 | Part name: Fitting Plug Kq2Xd04-06 | Qty: 1

#21. P/N: FC14-900644 | Part name: Plug Kq2P-08 | Qty: 1

#22. P/N: HP09-000012 | Part name: Manifold Manifold Km12-08-03-10 Et1 Etc. | Qty: 1

#23. P/N: HP06-900042 | Part name: Joint Rni3/8X1/4 | Qty: 1

#24. P/N: HP14-900110 | Part name: Valve Vp344-4Dz1-02A | Qty: 1

#25. P/N: HP06-000278 | Part name: Fitting Qs-E-M5-4-I-C Straight Fitting | Qty: 1

#26. P/N: HP09-900164 | Part name: Silencer [An20-02] | Qty: 1

#27. P/N: HP09-000150 | Part name: Components Electric Spabt P10-R18-2N-K1- | Qty: 1

#28. P/N: HP06-900040 | Part name: Joint Sl3/8 | Qty: 1

#29. P/N: AM03-001112 | Part name: Assy Air Mted Mainreg Awm3003Bdcjuz0183 | Qty: 1

#30. P/N: EP05-900319 | Part name: Plug 30Pm | Qty: 1

#31. P/N: FC14-900821 | Part name: Socket 80Sn | Qty: 1

#32. P/N: HP09-900133 | Part name: Mist Separator Reg Awm30-03Bd | Qty: 1

#33. P/N: HP13-000045 | Part name: Tube PneumaticAir Tube Mm Straight 12 8 | Qty: 1

#34. P/N: EP05-900318 | Part name: Plug 80Pn | Qty: 1

#35. P/N: HP06-900179 | Part name: Fitting Kce06-00 | Qty: 2

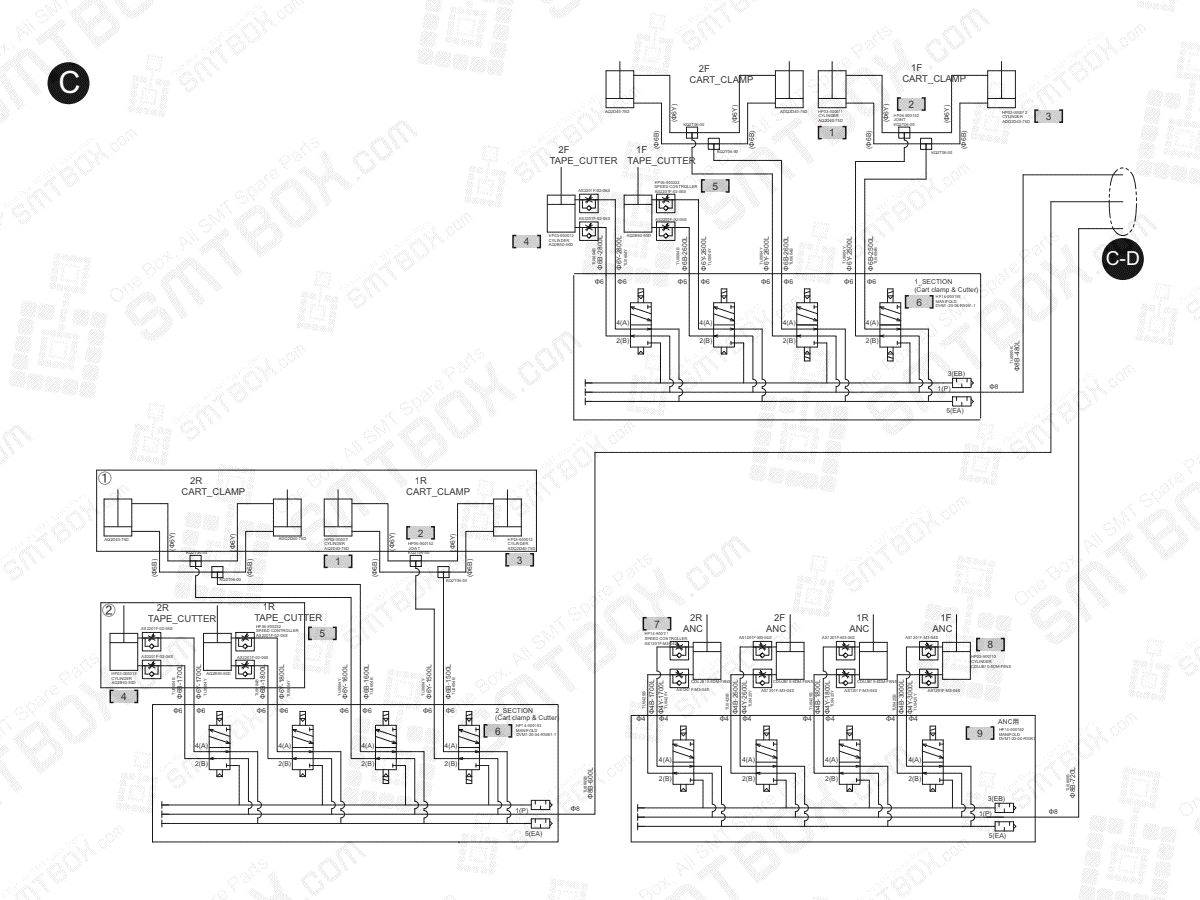

Air (4/5) on Hanwha (Samsung Techwin) Excellent Modular Excen Pro (D) Extension

#1. P/N: HP03-000011 | Part name: Cylinder Cylinder Aq2D40-75D 1Mpa 75 | Qty: 1

#2. P/N: HP06-900152 | Part name: T Union Kq2T06-00 | Qty: 1

#3. P/N: HP03-000012 | Part name: Cylinder Cylinder Adq2D40-75D 1Mpa 75 | Qty: 1

#4. P/N: HP03-000013 | Part name: Cylinder Cylinder Aq2B50-50D 1Mpa 50 | Qty: 1

#5. P/N: HP06-900232 | Part name: Spicon As2201F-02-06S | Qty: 2

#6. P/N: HP14-000193 | Part name: Valve Solenoid Solvalve Cc Cut | Qty: 1

#7. P/N: HP14-900111 | Part name: Speed Controller J67031032A | Qty: 2

#8. P/N: HP03-900110 | Part name: Cylinder Cduj10-8 J67011121A | Qty: 1

#9. P/N: HP14-002053 | Part name: Valve Solenoid Mted Solvalve Anc | Qty: 1

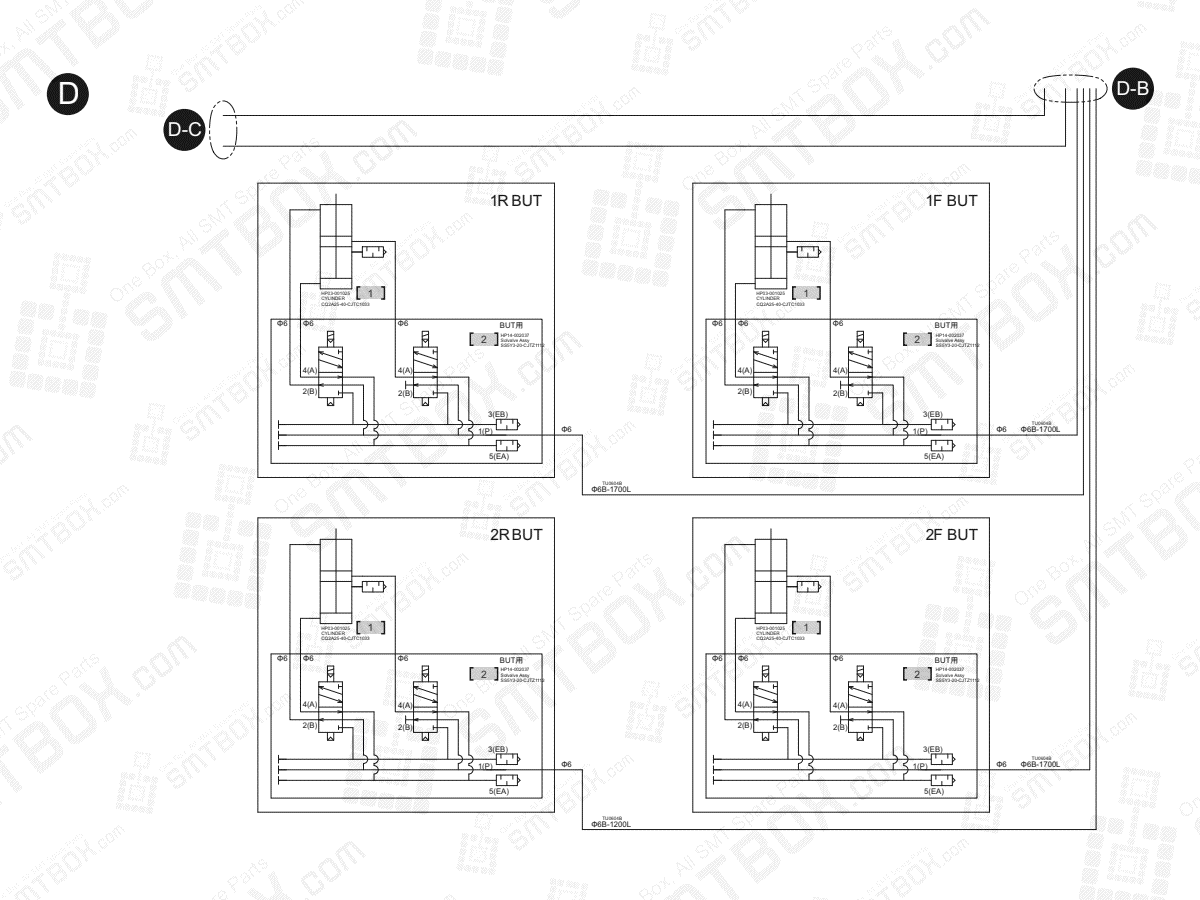

Air (5/5) on Hanwha (Samsung Techwin) Excellent Modular Excen Pro (D) Extension

#1. P/N: HP03-001025 | Part name: Cylinder Cq2A25-40-Cjtc1033 1.0Mpa 40Mm | Qty: 1

#2. P/N: HP14-002037 | Part name: Valve Solenoid Ss5Y3-20-Cjtz1112 | Qty: 1
