Having issues with Vision Type 72 HEMT (Supplied at 0 degrees) and Vision Type 73 HEMT (Supplied at 45 degrees) For Fuji NXT? Read our step-by-step SMT maintenance solution below. If you require replacement feeders, nozzles, or sensors, contact SMTBOX for OEM-compatible parts.

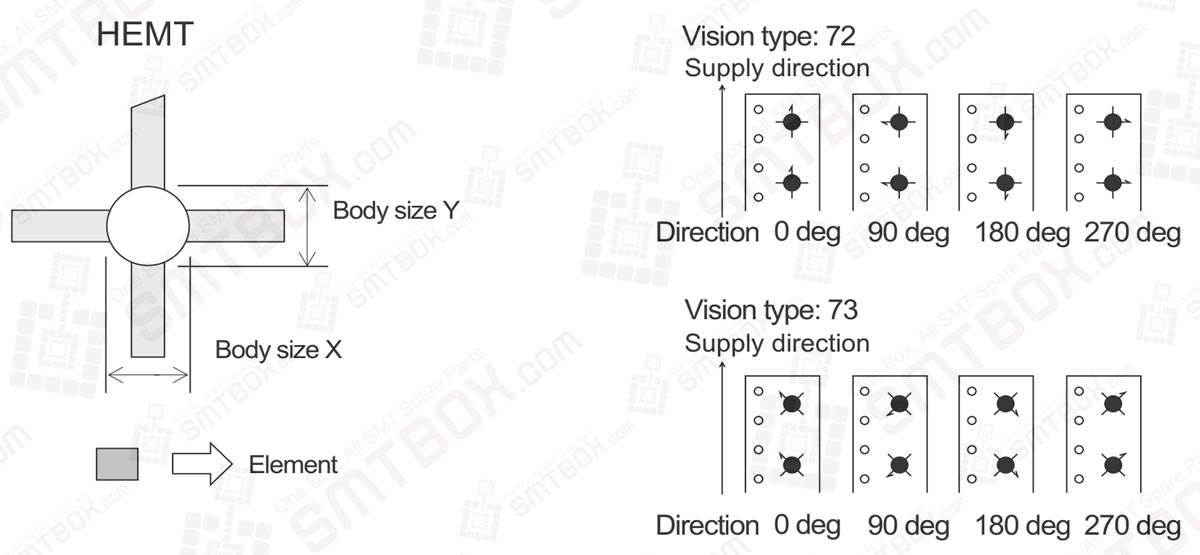

It is necessary to enter the body size and element information in part data.
The reference point for the part is the part center.
If the tip of a lead is not square by design then this information must be set in part data so that it is not detected as a defect.
Note that polarity inspection cannot be performed.
