The menu structure and the functions of each command of MMI(Man-Machine Interface), which serves as the application program for the operation of this machine, are briefly explained in this chapter. For detailed information on each menu, please refer to “Chapter 11. PCB Edit Menu” ~ “Chapter 12. Production Menu”.
2.1. Man-Machine Interface (MMI)

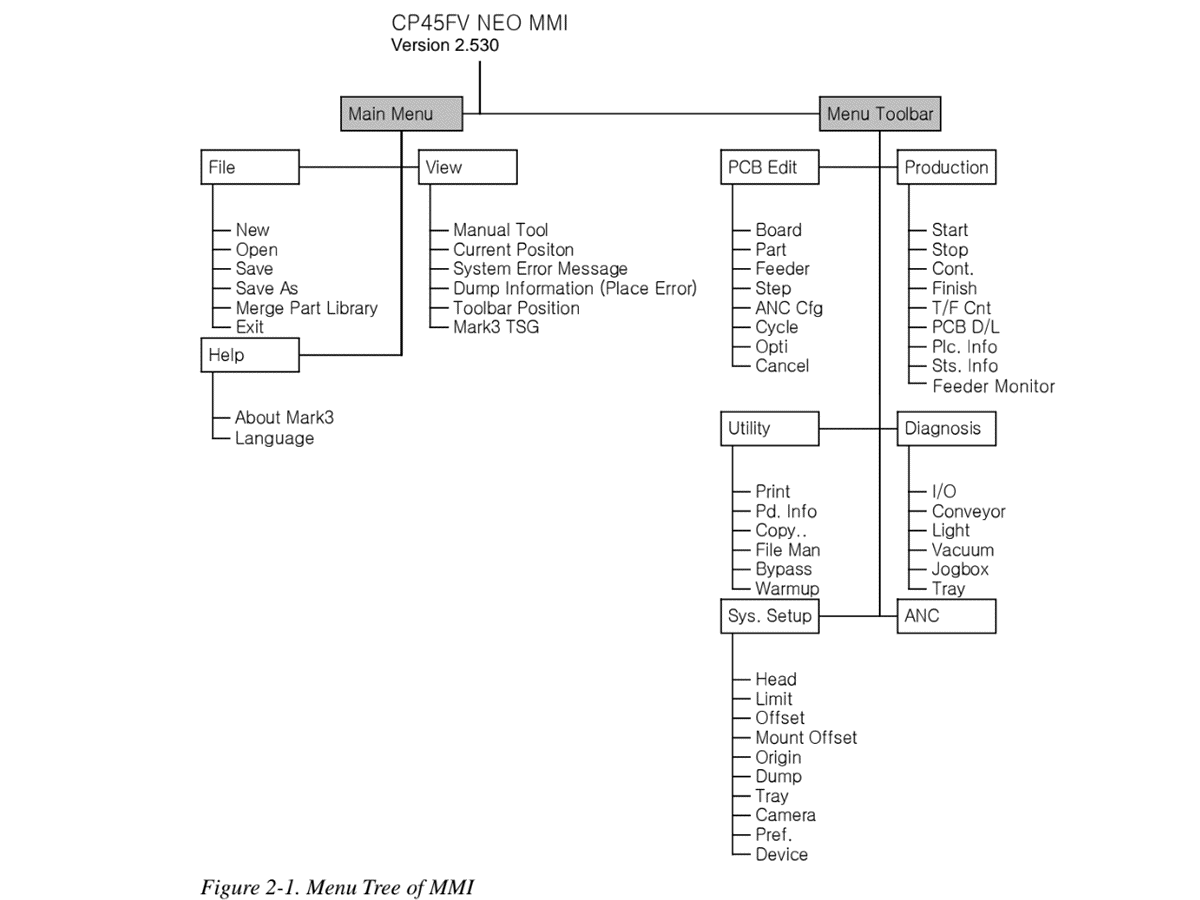

2.1.1. Menu tree
2.1.2. Summary of functions

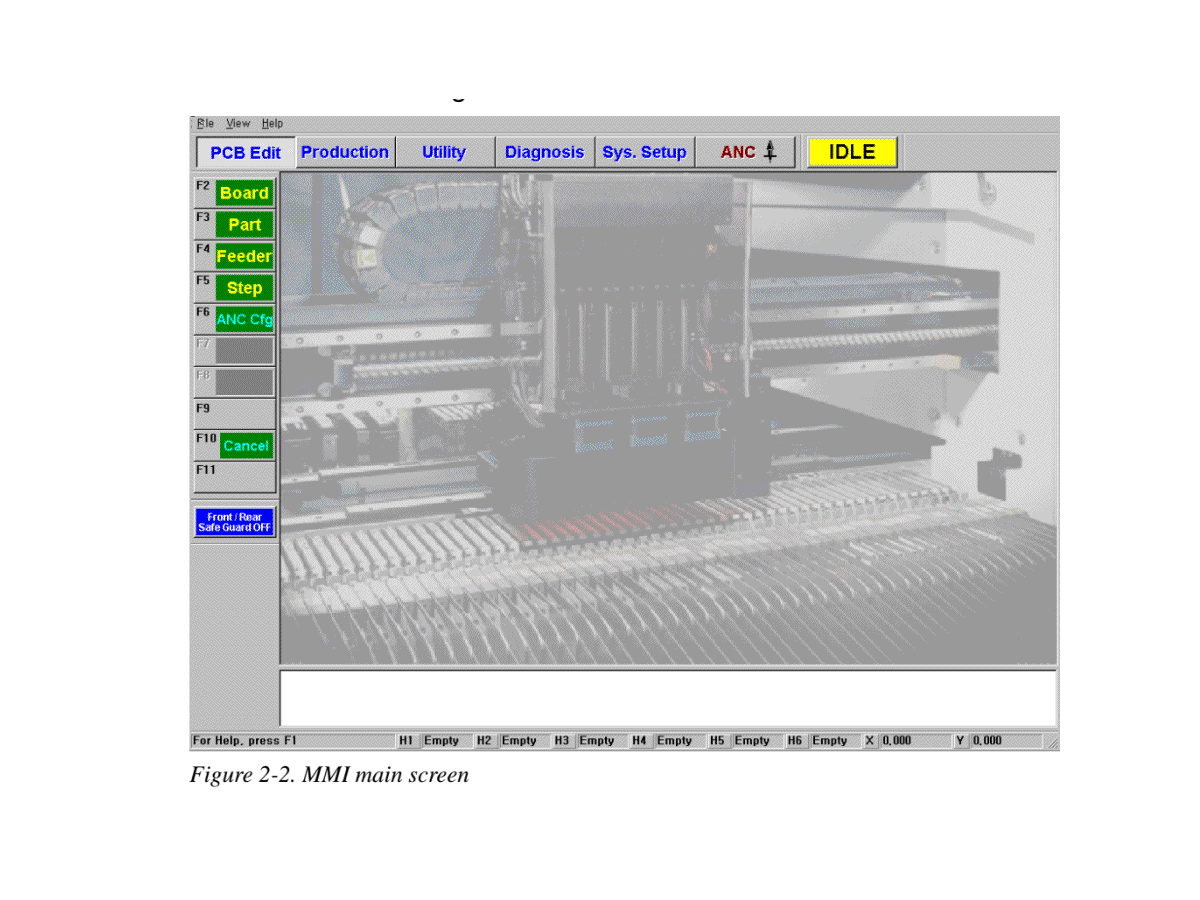

This section includes information on all the menus that are displayed on the MMI main screen.
22.214.171.124. Main menu submenus
126.96.36.199.1. File command submenus
Used to create a new PCB file.
Used to edit an existing PCB file.
Used to save an opened file.
Used to save an opened file under a different name.
Merge Part Library
Use it to compare the Part Library of another machine with that of current machine and merge.
Displays a list of files worked on recently.
Ends MMI session and goes back to Windows or terminates the operation of the machine.
188.8.131.52.2. View command submenus
Enables manual operation of machine.
Displays the current position and nozzle name of each axis in real time.
System Error Message
Checks the error message window, which is displayed when there is an machine error.
Dump Information (Place Error)
Displays the status of dumped parts during machine operation.
Tool bar Position
Sets the position of Menu Tool bar on the screen.
Shows the error occurred during machine operation.
184.108.40.206.3. Help command submenus
Displays the machine’s application program’s current version and miscellaneous information.
Selects the language to be used for the application program of this machine. Options available are “Default” and “English”, and the default language is Korean.
220.127.116.11. Main menu tool-bars
18.104.22.168.1. The submenu tool-bars of the PCB Edit menu tool-bar
Register various information on the board to be produced.
Register various information about the components to be placed.
Sets the data related to the Tape, Stick, and Tray Feeder.
Defines the step for placement operation.
Shows the nozzle information when the nozzles of the previous PCB file and current system ANC are different.
Checks the cycle by step.
Closes the dialog box for the Board, Part, Feeder, and Step.
22.214.171.124.2. The sub-menu tool-bars of the production menu tool-bar
Starts operation after downloading PCB.
Continues previous operation.
Finishes the downloaded operation completely.
Sets the position of the pocket to start picking up components from the Tray Feeder.
Transmits PCB operation data to the machine. It is possible only when the machine status is ‘Finish’.
Checks the number of pickups, placements, and pickup error rates by head, nozzle, and feeder.
Shows the quantity of remaining parts in the mounted tape feeder, enables setting up the quantity of remaining parts for part shortage warning, and allows monitoring of the errors related with tape feeder parts supply.Checks the number of pickups, placements, and pickup error rates by head, nozzle,and feeder.
Shows the quantity of remaining parts in the mounted tape feeder, enables setting up the quantity of remaining parts for part shortage warning, and allows monitoring of the errors related with tape feeder parts supply.
126.96.36.199.3. The sub-menu tool-bars of the Utility menu tool-bar
Used to print a PCB file or system data.
Displays various production management data for the machine(total time, placement information, and error information).
Use it to copy the existing PCB file data to other PCB files.
Use it to copy, delete, rename and clear the files related to MMI.
Use it to bypass a PCB on the conveyor without placement operation.
Warms up the driving axis after power supply.
188.8.131.52.4. The submenu tool-bars of the Diagnosis menu tool-bar
I / O
Check the I/O status.
Checks the Stopper, Backup Table, Hole/Edge Fixture, and Conveyor Flow.
Checks the Camera Light.
Checks the Vacuum of each head
Checks the Jogbox function.
Checks the Tray Feeder function.
184.108.40.206.5. The submenu tool-bars of the Sys. Setup menu tool-bar
Displays and sets the status of Head Block.
Sets the position limit for each axis to move.
Sets the offset value of the actual position of each device from the reference value of the installation position.
Able to set up the placement offset for each head.
Sets the origin of each component of the machine.
Sets the data related to the Dump Box.
Sets the data related to the Tray Feeder.
Sets various data on the Camera and executes camera calibration.
Sets various options necessary for machine operation.
Manages data related to the Tape, Stick, and Nozzle.
220.127.116.11.6. ANC menu tool-bar
Register various information on ANC(Auto Nozzle Changer).
18.104.22.168. Methods for selecting a command
22.214.171.124.3. Help command submenus
The methods for selecting a command are as follows;
When the icon is displayed, click on the desired icon.
Display pull down menu and click on the command.
When the pull down menu is displayed, enter the underlined letter of each command using the keyboard.
Use shortcut keys. When the command is underlined, press Alt + the underlined letter, and the cursor moves to that position or executes the command.
For the command that is marked Ctrl (or Alt)+□ after the pull down menu command, shortcut keys can be used. The shortcut key is a method to select a command directly without using the cursor by pressing Ctrl (or Alt) key together with the designated key simultaneously. In this manual, shortcut key is indicted by a “[ ]” after the command. Example: New [Ctrl+N]
