Service Part List of Calibration Jig For Hanwha Techwin SME Feeder

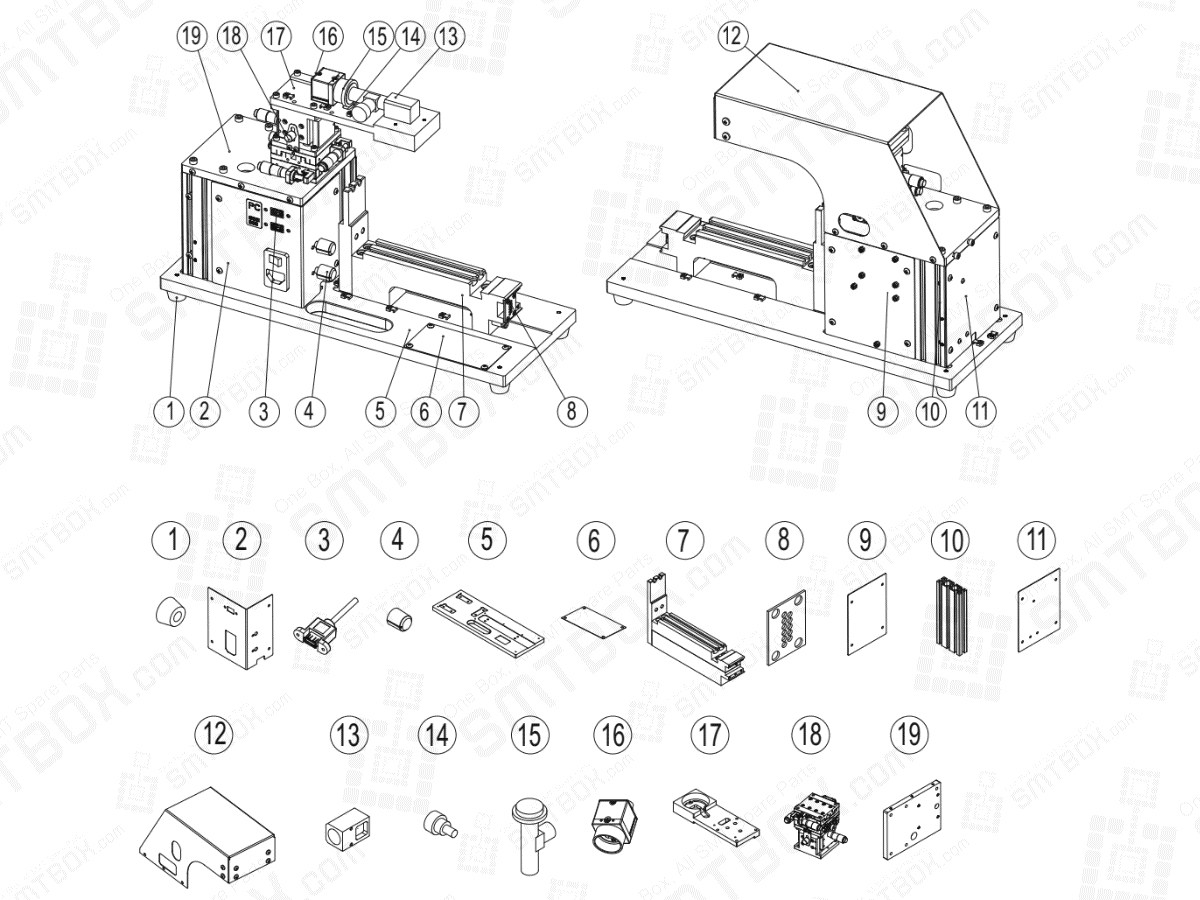

Service Part List of Calibration Jig For Hanwha Techwin SME Feeder side a
20
Oct

#1 P/N: FC28-000168 | Part name: Rubber Leg | Qty: 4

#2 P/N: FC15-004764B | Part name: Panel Edge | Qty: 1

#3 P/N: FC14-002137 | Part name: Usb2Usb Holder | Qty: 2

#4 P/N: FC28-000180 | Part name: Knob | Qty: 2

#5 P/N: FC05-001195B | Part name: Base-C | Qty: 1

#6 P/N: J90991065A | Part name: Ce Rohs Plate Assy | Qty: 1

#7 P/N: AM03-021347B | Part name: Sme Feeder Base Assy-C | Qty: 1

#8 P/N: FC15-004762B | Part name: Feeder Board Cover-C | Qty: 1 | Remarks: Cover

#9 P/N: FC15-004765B | Part name: Panel Side-C | Qty: 1

#10 P/N: FC29-007787B | Part name: Upper Base Support-C | Qty: 3

#11 P/N: FC15-004766B | Part name: Panel Smps | Qty: 1

#12 P/N: AM03-021620B | Part name: Upper Base Cover Assy | Qty: 1

#13 P/N: EP12-001004 | Part name: Mirror Box | Qty: 1

#14 P/N: EP13-001028 | Part name: Sme8 Jig Coaxial Light | Qty: 1

#15 P/N: EP14-001017 | Part name: Coaxial Lens-C | Qty: 1

#16 P/N: PT02-001033 | Part name: Camera-C | Qty: 1

#17 P/N: FC09-007331B | Part name: Camera Bracket-C | Qty: 1

#18 P/N: AM03-001101 | Part name: Xyz Stage-C | Qty: 1

#19 P/N: FC05-001196B | Part name: Upper Base-C | Qty: 1

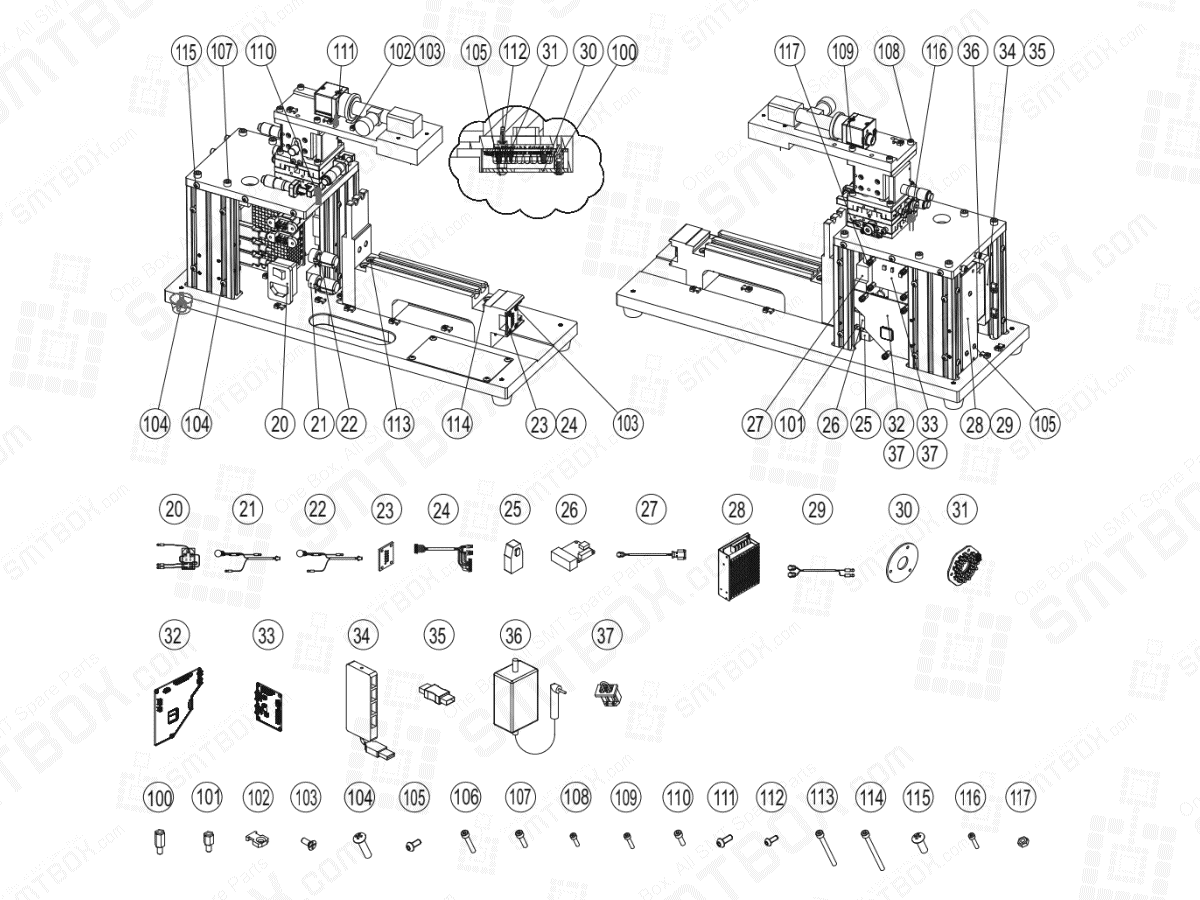

Service Part List of Calibration Jig For Hanwha Techwin SME Feeder side b

#20 P/N: AM03-020515A | Part Name: Smps Switch Cable Assy-C | Qty: 1

#21 P/N: AM03-020517A | Part Name: Fiducial Light Cable Ass’y | Qty: 1

#22 P/N: AM03-020516A | Part Name: Coaxial Light Cable Ass’y | Qty: 1

#23 P/N: AM03-020451A | Part Name: Feeder Base Board 1Slot | Qty: 1 | Remarks: Board

#24 P/N: AM03-021615B | Part Name: Feeder It Smps Can If Cable Assy

#25 P/N: EP10-003281 | Part Name: 5Pin2Usb Gender | Qty: 1

#26 P/N: EP10-003239 | Part Name: Can Pro-C | Qty:1

#27 P/N: AM03-020514A | Part Name: Feeder Can Cable Assy-C | Qty: 1

#28 P/N: EP06-001071 | Part Name: Smps-C | Qty: 1

#29 P/N: AM03-020513B | Part Name: Feeder Smps Cable Assy-C | Qty: 1

#30 P/N: FC15-000883A | Part Name: Fiducial Diffuser | Qty: 1

#31 P/N: AM03-012380A | Part Name: Board-Fiducial-Ill | Qty:1

#32 P/N: AM03-024827A | Part Name: Feeder Jig Main Board | Qty:1

#33 P/N: J90600366C | Part Name: It Slave Board Assy | Qty: 1

#34 P/N: MC14-001095 | Part Name: Next-204Uhp | Qty:1

#35 P/N: EP02-001115 | Part Name: Usb2Usb Ff Gender | Qty: 1

#36 P/N: AM03-024768A | Part Name: Sme Feeder Jig Adaptor Cable | Qty:1

#37 P/N: AM03-024767A | Part Name: Clamp Sw Short Cable Ass’y | Qty: 1

#100 P/N: FC29-900605 | Part Name: Hex Supprort | Qty: 3 | Remarks: M3L10B5

#101 P/N: FC29-900554 | Part Name: Hex Supprort | Qty: 2 | Remarks: M3L7B5

#102 P/N: FC18-903189 | Part Name: Tie Mount | Qty: 8

#103 P/N: FC18-902827 | Part Name: Flat Head Socket Screw | Qty: 12 | Remarks: M3L8

#104 P/N: FC18-004889 | Part Name: Truss Head Screw | Qty: 16 | Remarks: M4L12

#105 P/N: FC18-902806 | Part Name: Button Head Socket Screw | Qty: 16 | Remarks: M3L6

#106 P/N: FC18-902765 | Part Name: Socket Head Cap Screw | Qty: 0 | Remarks: M5L30

#107 P/N: FC18-902761 | Part Name: Socket Head Cap Screw | Qty: 2 | Remarks: M5L20

#108 P/N: FC18-902745 | Part Name: Socket Head Cap Screw | Qty: 2 | Remarks: M4L15

#109 P/N: FC18-902748 | Part Name: Socket Head Cap Screw | Qty: 2 | Remarks: M4L20

#110 P/N: FC18-902757 | Part Name: Socket Head Cap Screw | Qty: 1 | Remarks: M5L15

#111 P/N: FC18-901902 | Part Name: Button Head Socket Screw | Qty: 0 | Remarks: M3L8

#112 P/N: FC18-901892 | Part Name: Button Head Cap Screw | Qty: 2 | Remarks: M2.5X6

#113 P/N: FC18-901877 | Part Name: Socket Head Cap Screw | Qty: 1 | Remarks: M5L50

#114 P/N: FC18-901878 | Part Name: Socket Head Cap Screw | Qty: 2 | Remarks: M5L60

#115 P/N: FC18-004888 | Part Name: Truss Head Screw | Qty: 2 | Remarks: M4L8

#116 P/N: FC18-902741 | Part Name: Socket Head Cap Screw | Qty: 4 | Remarks: M4L10

#117 P/N: FC18-900895 | Part Name: Hex Nut | Qty: 16 | Remarks: M3

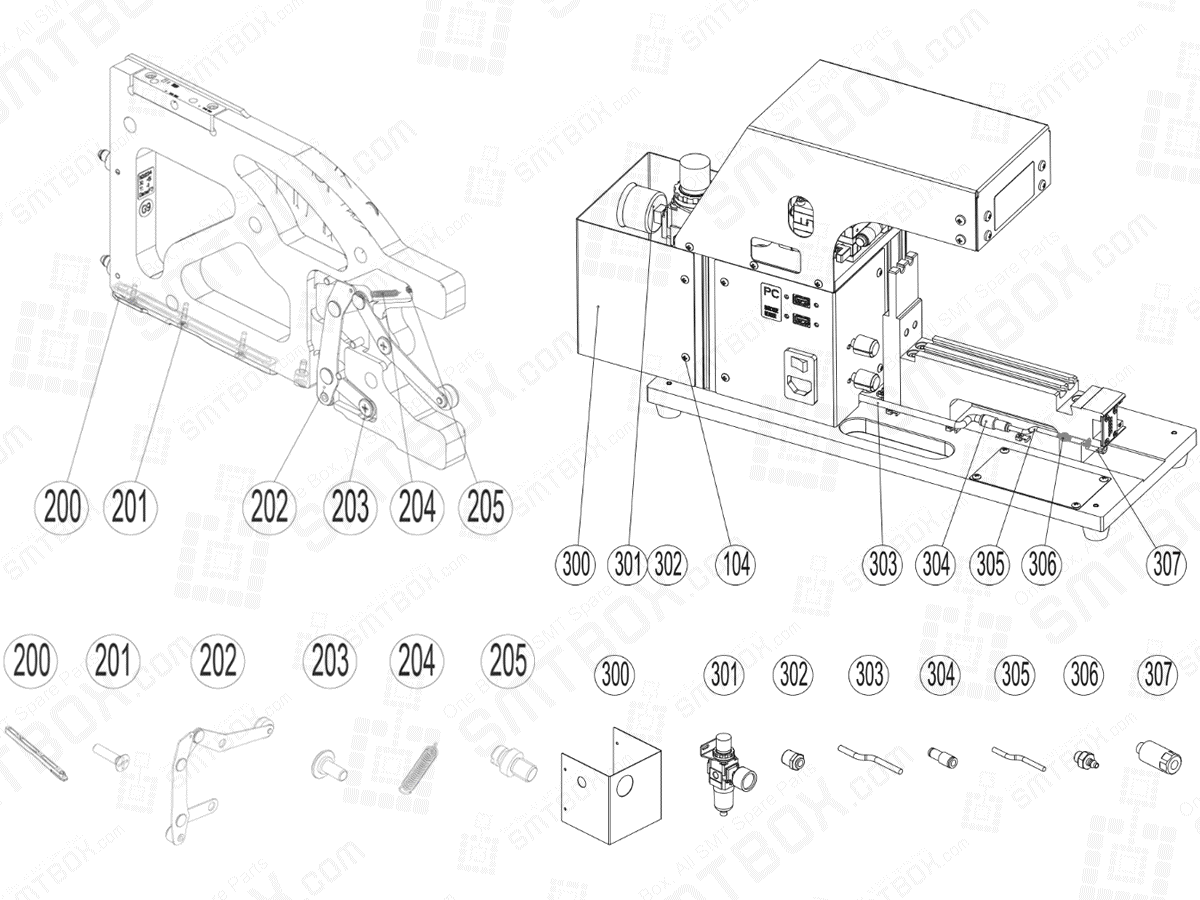

Service Part List of Calibration Jig For Hanwha Techwin SME Feeder side c

#200 P/N: GD03-000023A | Part Name: Install Guide | Qty: 1

#201 P/N: FC18-901932 | Part Name: Flat Head Cap Screw | Qty: 3 | Remarks: M3X12

#202 P/N: AM03-012040A | Part Name: Sme Master Toogle Assy | Qty: 1

#203 P/N: J70653935A | Part Name: T Link1 Hinge | Qty: 2

#204 P/N: J7066040A | Part Name: Toggle Spring | Qty: 1

#205 P/N: J70661204A | Part Name: Locker Spg Shaft

#300 P/N: FC15-005702A | Part Name: Panel Regulator | Qty: 1

#301 P/N: HP09-001061 | Part Name: Sm Jig Regulator | Qty: 1

#302 P/N: HP06-001144 | Part Name: Fitting | Qty: 2

#303 P/N: HP13-000079 | Part Name: Tube | Qty: 1

#304 P/N: HP06-000348 | Part Name: Fitting | Qty: 1

#305 P/N: HP13-000027 | Part Name: Tube | Qty: 1

#306 P/N: HP06-900252 | Part Name: Barb Fitting | Qty: 1

#307 P/N: FC14-002115 | Part Name: Coupler Feeder Base | Qty: 1
