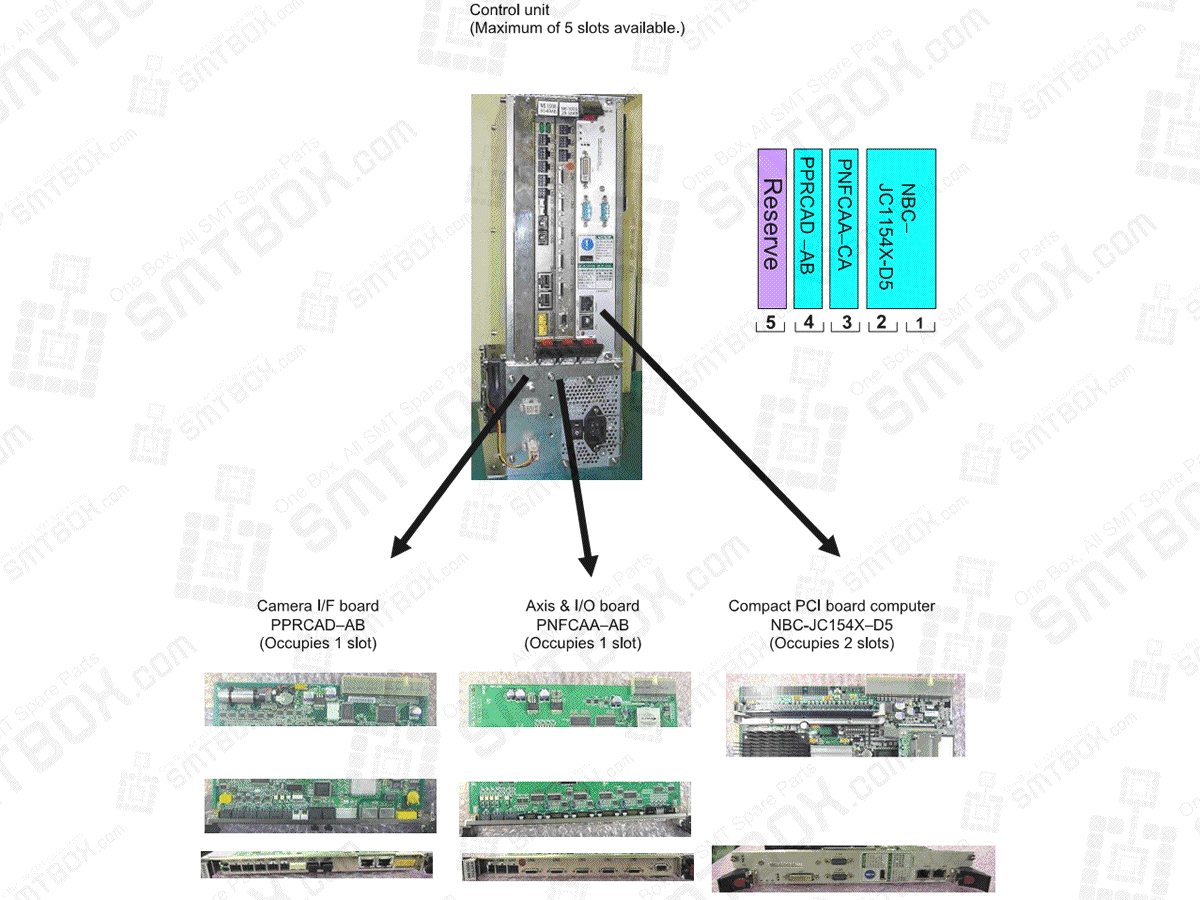

Control Unit
Name: Control unit (Model: PBXCAB-AA Part No.: N610067516AB)

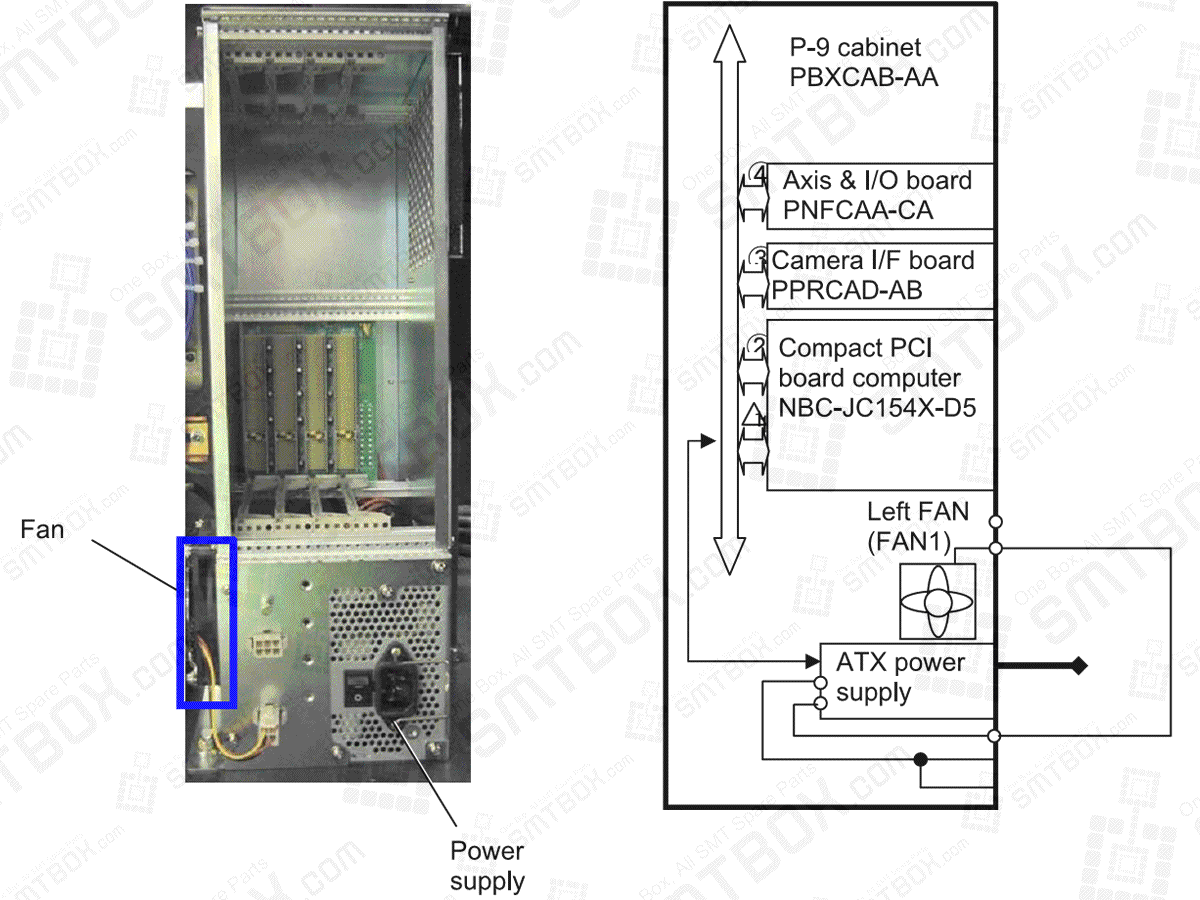

The cabinet consists of the following control elements:
Power Supply: PCSF-200P-X253. Part No.: N510037010AA
Fan: 109P0812HHD04. Part No.: N610078579AA
Backplane board: NBC-7153-01. Part No.: N510037011AA
