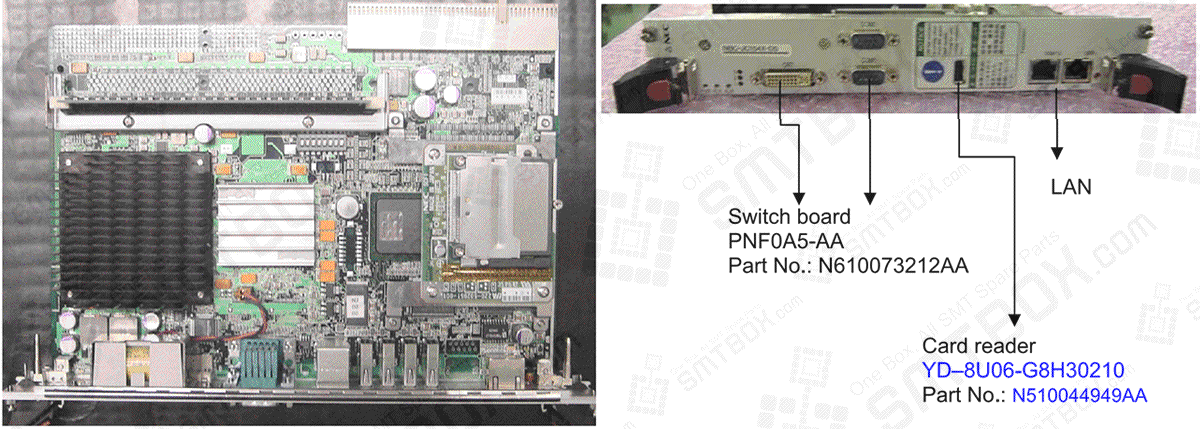

Name: Compact PCI board computer (Model: NBC-JC154X-D5// Part No.: N510029992AA)
Basic specifications
CPU: Intel Celeron M Processor
Main Memory: DIMM 256MB
CF card: 128MB x 2 pcs.
Switch board PNFOA5-AA Part No.: N610073212AA
Card reader YD-8U06-G8H30210 Part No.: N510044949AA
LAN
NOTED
Do not replace the battery when power is ON. Doing so can cause electric shock or malfunction.
Remarks
The battery on the PCI board computer keeps the clock and BIOS settings.
If an unexpected accident occurs due to deteriorated battery, a battery warning is given.
Even if the battery for the compact PCI board computer is deteriorated, the machine can be started but the clock will be reset.
The battery can be purchased on the market so it is not registered as a service part.
Maintenance
This compact PCI board computer has a battery.

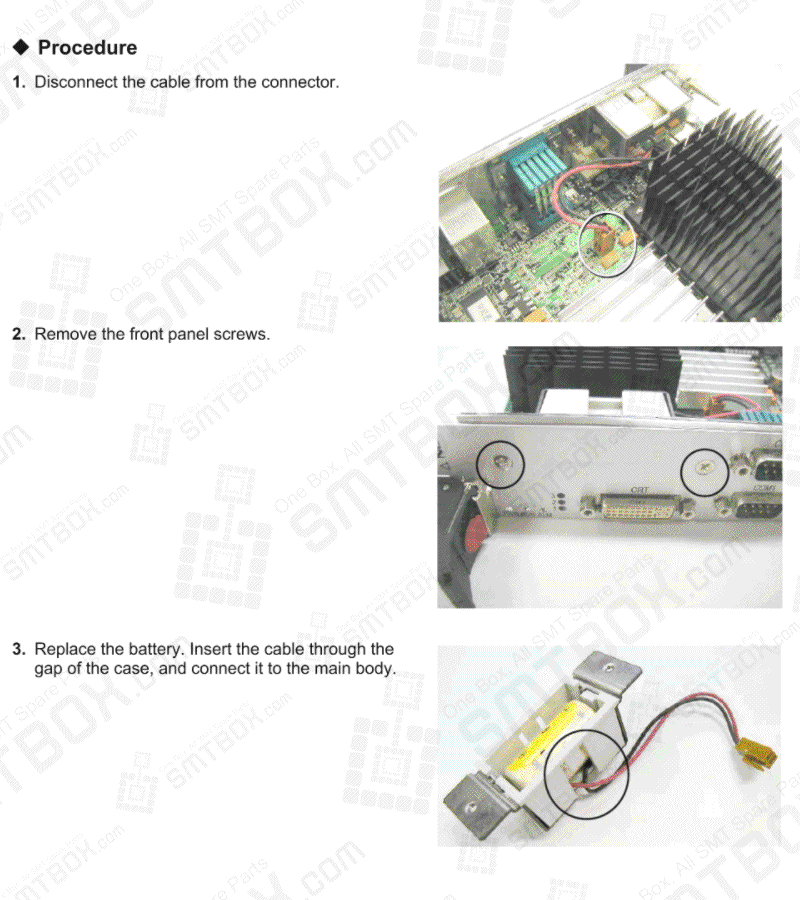

Basically, it lasts more than 10 years with power off. However, in case of unexpected accidents, replacement procedure is given below.
Lithium battery, BR-3AC2P (Panasonic) or equivalent.
