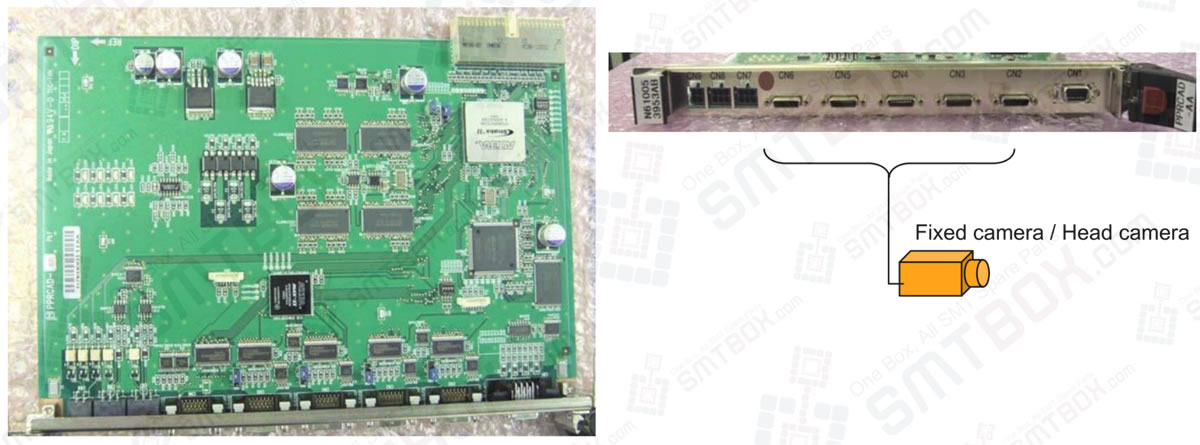

Name: Camera VF board (Model: PRCAD-AA Part No.: N610053953AB)
Basic Specifications
This board interfaces with the recognition modules such as cameras and line sensors.
It has no CPU. As the recognition monitor function, the board transfers the image data captured by cameras to the CPU board (NBC JC154X-D5) via the internal bus.
The data is superimposed on the control panel display by the CPU board.
