What is Yamaha YV88X Philips Assembleon EMERALD-X 61F 62F 63F 64F 65F 66F SMD SMT Nozzle?
Looking for Yamaha YV88X Philips Assembleon EMERALD-X 61F 62F 63F 64F 65F 66F SMD SMT Nozzle? This SMT spare part (SKU: EMERALD-X, Brand: Philips) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.

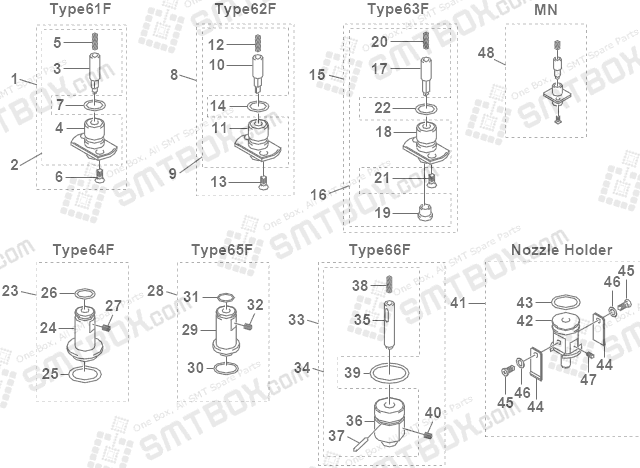

Yamaha YV88X Philips Assembleon EMERALD X 61F 62F 63F 64F 65F 66F SMD SMT Nozzle Selection
| No. | Part No. | Part Name | Q’ty | Remarks |
|---|---|---|---|---|
| 1 | KV7-M71N1-A0X | NOZZLE 61F ASSY. | 2 | TYPE 61F |
| 2 | KV7-M71N1-B0X | NOZZLE 61F SUB ASSY. | 1 | |
| 3 | KV7-M71N1-00X | BODY,NOZZLE 1 | 1 | |
| 4 | KV7-M71L1-01X | HOLDER,NOZZLE | 1 | |
| 5 | KV7-M71M5-00X | SPRING, NOZZLE | 1 | |
| 6 | KV7-M71M6-01X | SCREW,NOZZLE | 6 | Reserve4 |
| 7 | KV7-M71S2-00X | O-RING | 5 | SS-038,Reserve4 |
| 8 | KV7-M71N2-A0X | NOZZLE 62F ASSY. | 2 | TYPE 62F |
| 9 | KV7-M71N2-B0X | NOZZLE 62F SUB ASSY. | 1 | |
| 10 | KV7-M71N2-00X | BODY,NOZZLE 2 | 1 | |
| 11 | KV7-M71L1-01X | HOLDER,NOZZLE | 1 | |
| 12 | KV7-M71M5-00X | SPRING, NOZZLE | 1 | |
| 13 | KV7-M71M6-01X | SCREW,NOZZLE | 6 | Reserve4 |
| 14 | KV7-M71S2-00X | O-RING | 5 | SS-038,Reserve4 |
| 15 | KV7-M71N3-A0X | NOZZLE 63F ASSY. | 2 | TYPE 63F |
| 16 | KV7-M71N3-B0X | NOZZLE 63F SUB ASSY. | 1 | |
| 17 | KV7-M71N3-00X | BODY,NOZZLE 3 | 1 | |
| 18 | KV7-M71L1-01X | HOLDER,NOZZLE | 1 | |
| 19 | KV7-M71M3-00X | PAD,NOZZLE | 1 | |
| 20 | KV7-M71M5-00X | SPRING, NOZZLE | 1 | |
| 21 | KV7-M71M6-01X | SCREW,NOZZLE | 6 | Reserve4 |
| 22 | KV7-M71S2-00X | O-RING | 5 | SS-038,Reserve4 |
| 23 | KV7-M71N4-A0X | NOZZLE 64F ASSY. | 2 | TYPE 64F |
| 24 | KV7-M71N4-00X | BODY, NOZZLE 4 | 1 | |
| 25 | KG7-M711D-C0X | O-RING P4 : B-P4 | 5 | Reserve4 |
| 26 | KV7-M71S2-00X | O-RING | 5 | SS-038,Reserve4 |
| 27 | 92A08-03005 | SET SCREW Reserve2 M3X5 | 3 | |
| 28 | KV7-M71N5-A0X | NOZZLE 65F ASSY. | 2 | TYPE 65F |
| 29 | KV7-M71N5-00X | BODY, NOZZLE 5 | 1 | |
| 30 | KG2-M7199-01X | O-RING 1-B(P7) | 5 | Reserve4 |
| 31 | KV7-M71S2-00X | O-RING | 5 | SS-038,Reserve4 |
| 32 | 92A08-03005 | SET SCREW Reserve2 M3X5 | 3 | |
| 33 | KV7-M71N6-A0X | NOZZLE 66F ASSY. | 2 | |
| 34 | KV7-M71N6-B0X | NOZZLE 66F SUB ASSY. | 1 | |
| 35 | KV7-M71N6-00X | BODY,NOZZLE 6 | 1 | |
| 36 | KV7-M71L2-00X | HOLDER,NOZZLE 6 | 1 | |
| 37 | KV7-M71M7-00X | PIN,NOZZLE FLOAT | 1 | |
| 38 | KV7-M71M5-00X | SPRING, NOZZLE | 1 | |
| 39 | KV7-M71S4-00X | 0-RING | 5 | SS-038,Reserve4 |
| 40 | 92A08-03003 | SET SCREW M3X3 | 3 | |
| 41 | KV7-M71M0-A0X | NOZZLE HOLDER ASSY. | 2 | |
| 42 | KV7-M71M0-00X | HOLDER,NOZZLE SP | 1 | |
| 43 | KV7-M71S4-00X | 0-RING (SS-065) | 5 | Reserve4 |
| 44 | KG7-M7137-A0X | LEAF SPRING | 4 | Reserve2 |
| 45 | KG7-M7169-00X | SCREW | 4 | Reserve2 |
| 46 | KG7-M7170-00X | WASHER | 4 | Reserve2 |
| 47 | 92A08-03003 | SET SCREW M3X3 | 3 | Reserve2 |
| 48 | KV8-M87WK-A0X | NOZZLE F73WK ASSY. | 1 |
The Yamaha YV88X Philips Assembleon EMERALD-X 61F 62F 63F 64F 65F 66F SMD SMT Nozzle (SKU: EMERALD-X) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive KNS Assembleon SMT Nozzle, KNS Assembleon SMT Spare parts, Yamaha SMD Nozzle, Yamaha SMT Spare Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Yamaha YV88X Philips Assembleon EMERALD-X 61F 62F 63F 64F 65F 66F SMD SMT Nozzle?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
