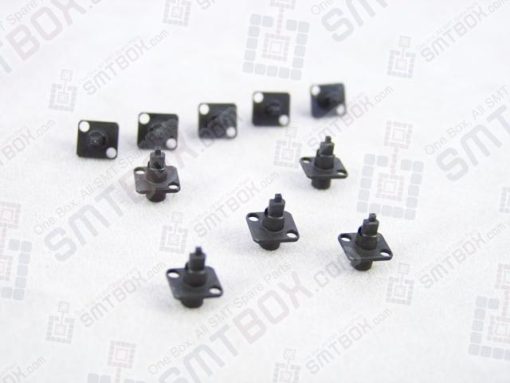

What is Yamaha YV100XF 71F 72F 73F F73WK SMT SMD Nozzle?
Looking for Yamaha YV100XF 71F 72F 73F F73WK SMT SMD Nozzle? This SMT spare part (SKU: YV100XF, Brand: Yamaha) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.

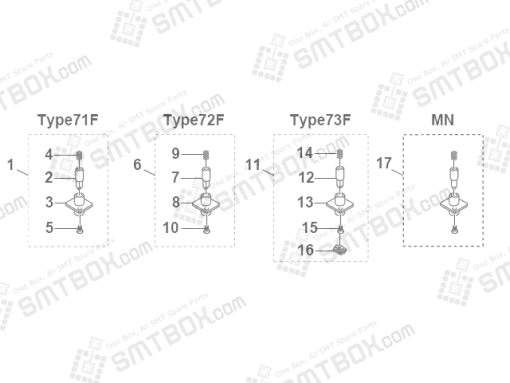

Yamaha YV100XF 71F 72F 73F F73WK SMT SMD Nozzle Selection(FNC)
| No. | Part No. | Part Name | Q’ty | Remarks |
|---|---|---|---|---|
| 1 | KV8-M71N1-A0X | NOZZLE 71F ASSY. | 1 | – |
| 2 | KV8-M71U1-00X | NOZZLE 1 | 1 | TYPE71 |
| 3 | KV8-M71U6-00X | HOUSING,NOZZLE | 1 | – |
| 4 | KV8-M71U7-00X | SPRING | 1 | – |
| 5 | KV8-M71U5-00X | SCREW | 2 | – |
| 6 | KV8-M71N2-A0X | NOZZLE 72F ASSY. | 1 | – |
| 7 | KV8-M71U2-00X | NOZZLE 2 | 1 | TYPE72 |
| 8 | KV8-M71U6-00X | HOUSING,NOZZLE | 1 | |
| 9 | KV8-M71U7-00X | SPRING | 1 | |
| 10 | KV8-M71U5-00X | SCREW | 2 | |
| 11 | KV8-M71N3-A0X | NOZZLE 73F ASSY. | 1 | |
| 12 | KV8-M71U3-00X | NOZZLE 3,SHAFT | 1 | TYPE73 |
| 13 | KV8-M71U6-00X | HOUSING,NOZZLE | 1 | |
| 14 | KV8-M71U7-10X | SPRING | 1 | |
| 15 | KV8-M71U5-00X | SCREW | 2 | |
| 16 | KV8-M71U4-00X | NOZZLE 3,PAD | 1 | |
| 17 | KV8-M87WK-A0X | NOZZLE F73WK ASSY. | 1 |
The Yamaha YV100XF 71F 72F 73F F73WK SMT SMD Nozzle (SKU: YV100XF) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive Yamaha SMD Nozzle, Yamaha SMT Spare Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Yamaha YV100XF 71F 72F 73F F73WK SMT SMD Nozzle?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
