What is Yamaha YG200 201A 202A 203A 206A 209A SMT SMD Nozzle?
Looking for Yamaha YG200 201A 202A 203A 206A 209A SMT SMD Nozzle? This SMT spare part (SKU: YG200, Brand: Yamaha) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.

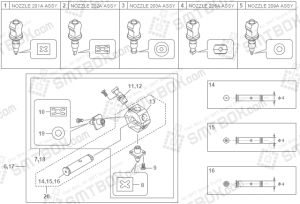

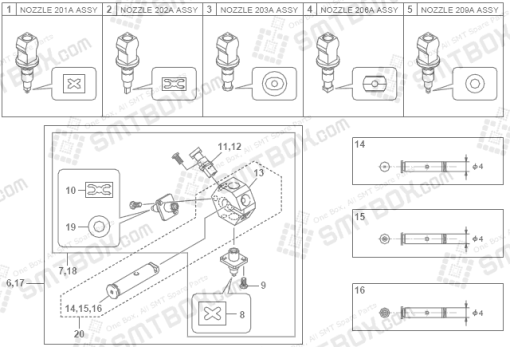

Yamaha YG200 201A 202A 203A 206A 209A SMT SMD Nozzle Selection
| No. | Part No. | Part Name | Q’ty | Remarks |
|---|---|---|---|---|
| 1 | KGT-M7710-A0X | NOZZLE 201A ASSY. | 1 | Type 201A |
| 2 | KGT-M7720-A0X | NOZZLE 202A ASSY. | 1 | Type 202A |
| 3 | KGT-M7730-A1X | NOZZLE 203A ASSY. | 1 | Type 203A |
| 4 | KGT-M7760-A0X | NOZZLE 206A ASSY. | 1 | Type 206A |
| 5 | KGT-M7790-A0X | NOZZLE 209A ASSY. | 1 | Type 209A |
| 6 | KV8-M711N-A0X | NOZZLE & SHAFT ASSY. | 1 | |
| 7 | KV8-M71U0-01X | NOZZLE ASSY. | 1 | 71/ 72/ 73F |
| 8 | KV8-M71N1-A0X | NOZZLE 71F ASSY. | 1 | |
| 9 | KV8-M71U5-00X | SCREW | 2 | |
| 10 | KV8-M71N2-A0X | NOZZLE 72F ASSY. | 1 | |
| 11 | KV8-M71N3-A0X | NOZZLE 73F ASSY. | 1 | |
| 12 | KV8-M87XD-A0X | NOZZLE 73F-D ASSY. | 1 | Op. |
| 13 | KV8-M71U8-00X | BLOCK, NOZZLE | 1 | |
| 14 | KV8-M71R1-10X | SHAFT 1 | 1 | |
| 15 | KV8-M71R1-20X | SHAFT 1 | 1 | |
| 16 | KV8-M71R1-30X | SHAFT 1 | 1 | |
| 17 | KV8-M712N-A0X | NOZZLE & SHAFT ASSY. | 1 | |
| 18 | KV8-M71U0-10X | NOZZLE ASSY. | 1 | 71/ 79/ 73F |
| 19 | KV8-M71N9-A0X | NOZZLE 79F ASSY. | 1 | |
| 20 | KV8-M713N-A0X | BLOCK & NOZZLE ASSY | 1 |
The Yamaha YG200 201A 202A 203A 206A 209A SMT SMD Nozzle (SKU: YG200) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive Yamaha SMD Nozzle, Yamaha SMT Spare Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Yamaha YG200 201A 202A 203A 206A 209A SMT SMD Nozzle?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
