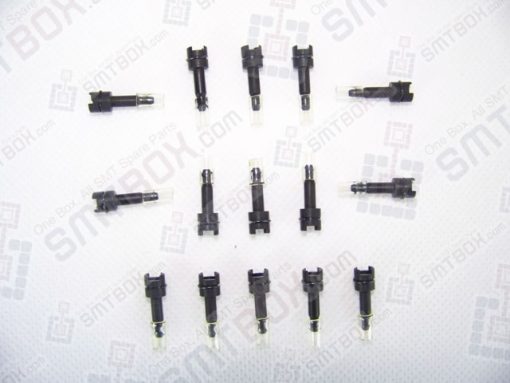

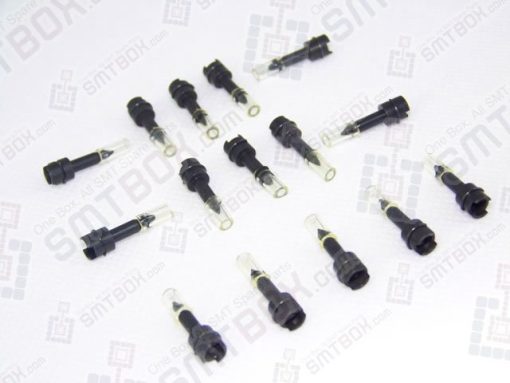

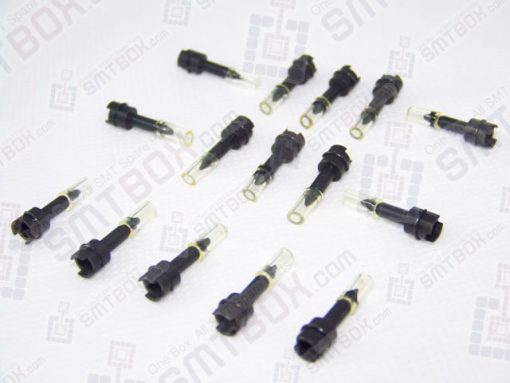

What is Panasonic Panasert HT MSR VVS VS S M Melf-M L LL LLL type nozzle?
Looking for Panasonic Panasert HT MSR VVS VS S M Melf-M L LL LLL type nozzle? This SMT spare part (SKU: 10467S0001AC, Brand: Panasonic) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
We offer Panasonic Panasert HT MSR VVS VS S M Melf-M L LL LLL type nozzle. Please contact sales@smtbox.com
Part Number: 10467S0001AC 104687872004 10467S0002AC 1046710181 10467S0003AC 1046710182 10467S0010AA 104687871504 10467S0001 AC104678027402 10467S0010AA 104678027502 10468S0004AC 104687871004 10468S0003AC 104687870505 10468S0009 104687870006
| Item | Description | Picture |

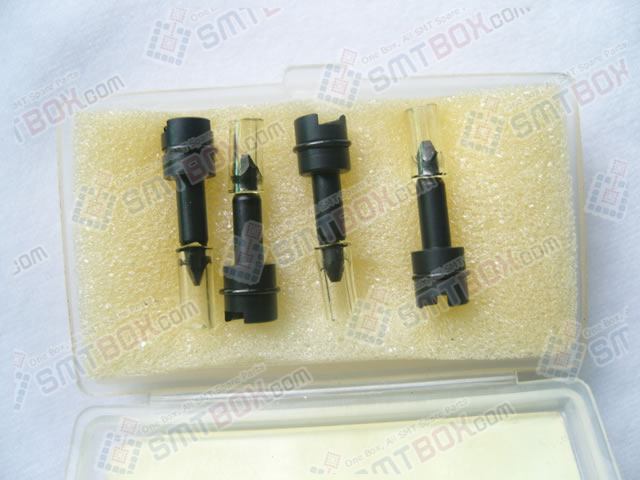

| Pos.01 | Panasonic Panasert HT MSR Nozzle VS Type 10468S0003AC 104687870505 |  |

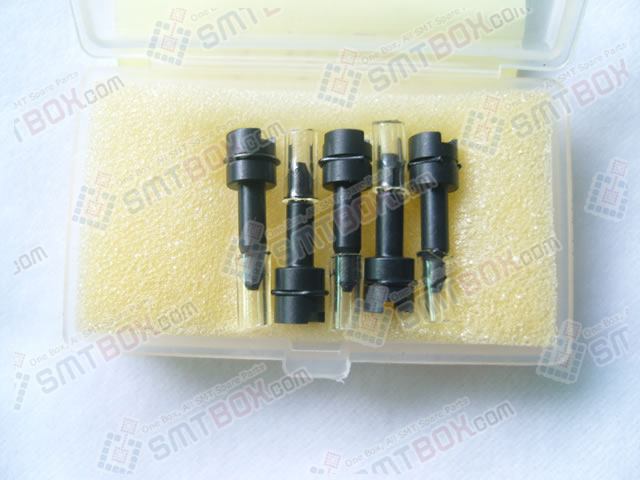

| Pos.02 | Panasonic Panasert HT MSR Nozzle S Type 10468S0004AC 104687871004 |  |

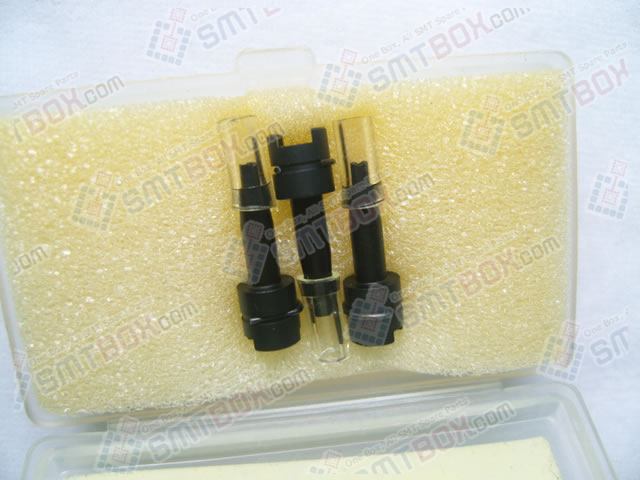

| Pos.03 | Panasonic Panasert HT MSR Nozzle Melf M Type 10467S0010AA 104678027502 |  |

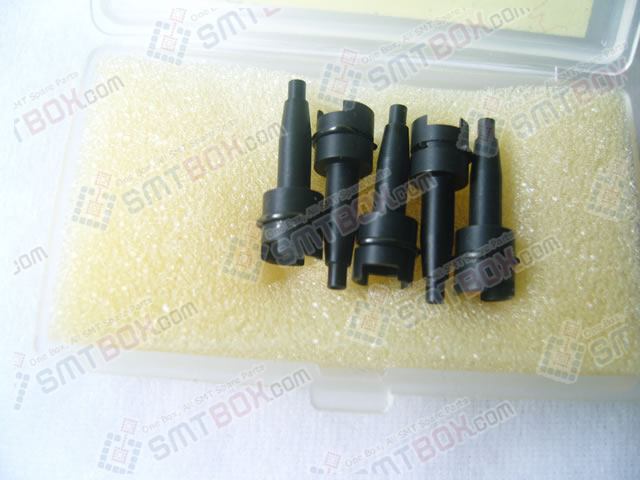

| Pos.04 | Panasonic Panasert HT MSR Nozzle M Type 10467S0010AA-104687871504 |  |

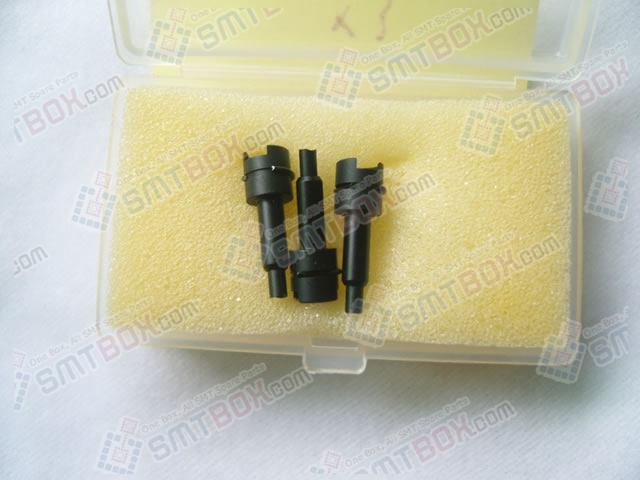

| Pos.05 | Panasonic Panasert HT MSR Nozzle Melf L Type 10467S0001-AC104678027402 |  |

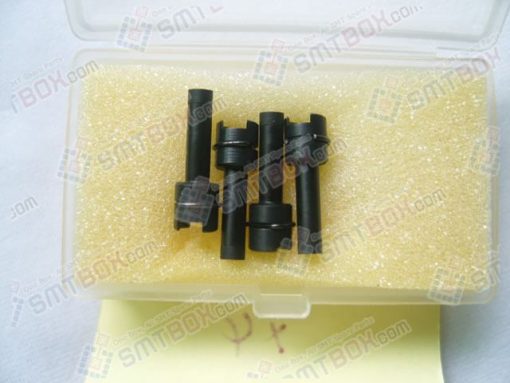

| Pos.06 | Panasonic Panasert HT MSR Nozzle L Type 10467S0001AC-104687872004 |  |

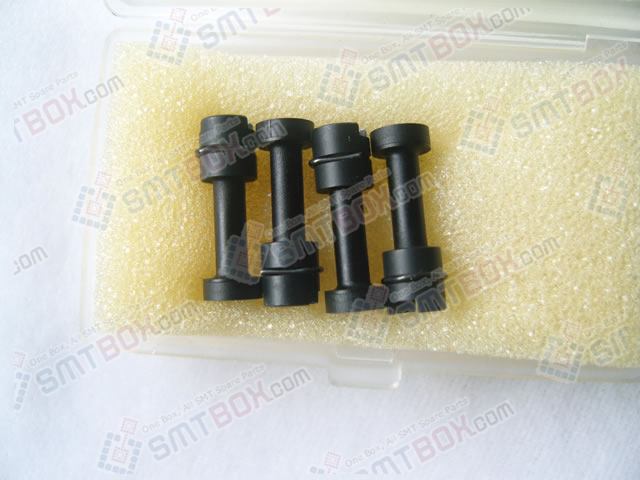

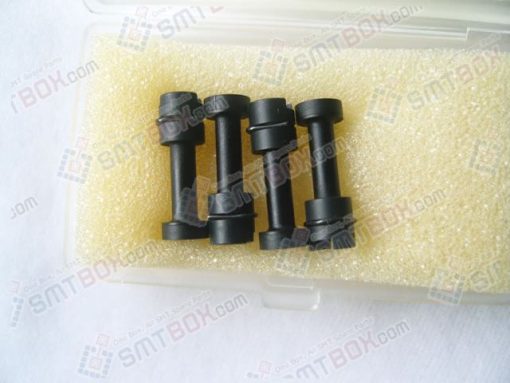

| Pos.07 | Panasonic Panasert HT MSR Nozzle LL Type 10467S0002AC-1046710181 |  |

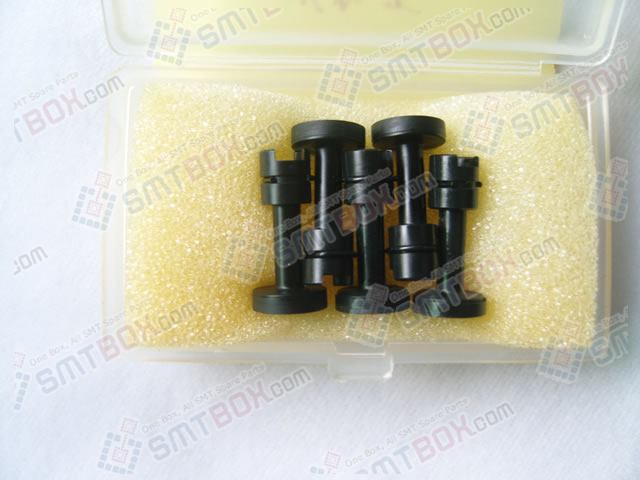

| Pos.08 | Panasonic Panasert HT MSR Nozzle LLL Type 10467S0003AC-1046710182 |  |

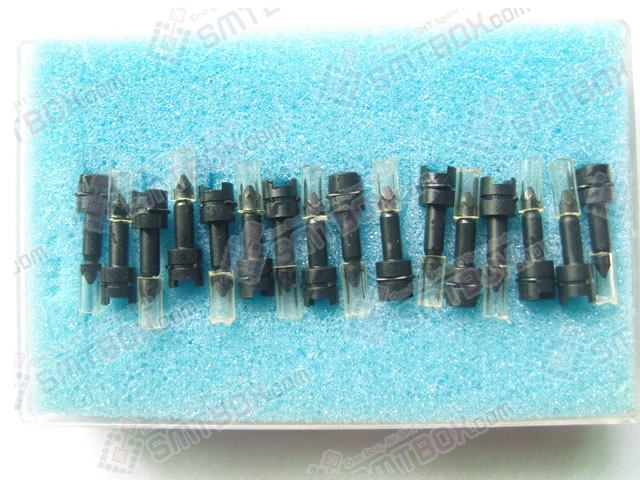

| Pos.09 | Panasonic Panasert HT MSR Nozzle VVS Type 10468S0009-104687870006 |  |
The Panasonic Panasert HT MSR VVS VS S M Melf-M L LL LLL type nozzle (SKU: 10467S0001AC) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive Panasonic SMT Nozzle, Panasonic SMT Spare Parts, Thru-hole Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Panasonic Panasert HT MSR VVS VS S M Melf-M L LL LLL type nozzle?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
