What is Panasonic KME Panasert CM301 Series SMD Nozzle for Multi-functional head?
Looking for Panasonic KME Panasert CM301 Series SMD Nozzle for Multi-functional head? This SMT spare part (SKU: head, Brand: Panasonic) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
Nozzle for Multi-functional head CM301-D CM301-DU CM301-DS MODULE NUMBER 101PC1M0000
| NO | PART NUMBER | PART NAME | TYPE | Q’TY | RANK | REMARKS |
|---|---|---|---|---|---|---|

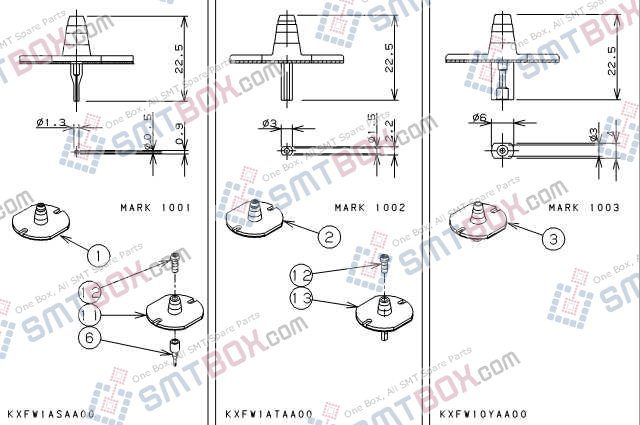

| 1 | KXFW1ASAA00 | NOZZLE No.1001 | N/A | 1 | N/A | N/A |
| 2 | KXFW1ATAA00 | NOZZLE No.1002 | N/A | 1 | N/A | N/A |
| 3 | KXFW10YAA00 | NOZZLE No.1003 | N/A | 1 | N/A | N/A |

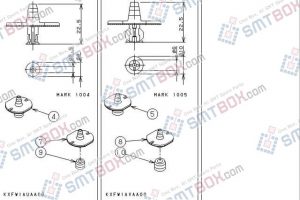

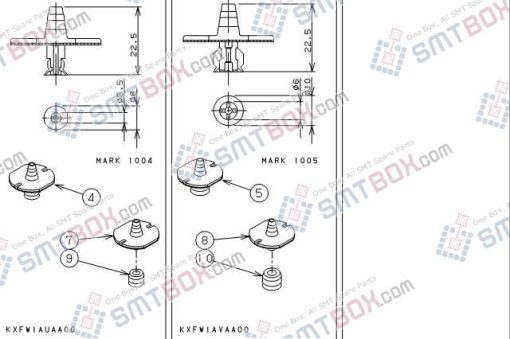

| 4 | KXFW1AUAA00 | NOZZLE No.1004 | N/A | 1 | N/A | N/A |
| 5 | KXFW1AVAA00 | NOZZLE No.1005 | N/A | 1 | N/A | N/A |
| 6 | KXFA1FGAA00 | NOZZLE | N/A | 1 | N/A | N/A |
| 7 | KXFW1H0AA00 | NOZZLE | N/A | 1 | N/A | N/A |
| 8 | KXFW1H1AA00 | NOZZLE | N/A | 1 | N/A | N/A |
| 9 | KXF07QUAA00 | PAD | KP-8-N | 1 | N/A | N/A |
| 10 | KXF07QVAA00 | PAD | KP-10-N | 1 | N/A | N/A |
| 11 | KXFW1GYAA00 | REFLECTOR | N/A | 1 | N/A | N/A |
| 12 | KXFA1AFAA00 | BOLT | N/A | 1 | N/A | N/A |
| 13 | KXFW1GZAA00 | NOZZLE | N/A | 1 | N/A | N/A |
The Panasonic KME Panasert CM301 Series SMD Nozzle for Multi-functional head (SKU: head) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive Panasonic SMT Nozzle, Panasonic SMT Spare Parts, Thru-hole Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Panasonic KME Panasert CM301 Series SMD Nozzle for Multi-functional head?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
