What is Panasonic KME Panasert CM201 CM202 Series SMD Nozzle for High-speed head?
Looking for Panasonic KME Panasert CM201 CM202 Series SMD Nozzle for High-speed head? This SMT spare part (SKU: head-dup-191, Brand: Panasonic) is a high-precision component for SMT pick-and-place machines. Contact SMTBOX for competitive bulk prices, global delivery options, and fast RFQ turnaround.
Nozzle for High-speed head CM201-D CM202-D CM201-DU CM202-DU CM201-DH CM202-DH CM202-DHU CM201-DS CM202-DS CM202-DK MODULE NUMBER 101VC0M0000/101WC0M0000/101XC0M0000 101SC0M0000/101TC0M0000/101UC0M0000
| NO | PART NUMBER | PART NAME | TYPE | Q’TY | RANK | REMARKS |
|---|---|---|---|---|---|---|

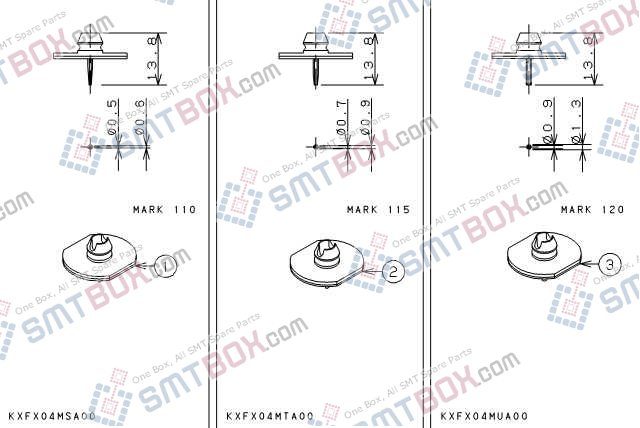

| 1 | KXFX04MSA00 | NOZZLE No.110 | N/A | 1 | N/A | N/A |
| 2 | KXFX04MTA00 | NOZZLENo.115 | N/A | 1 | N/A | N/A |
| 3 | KXFX04MUA00 | NOZZLENo.120 | N/A | 1 | N/A | N/A |

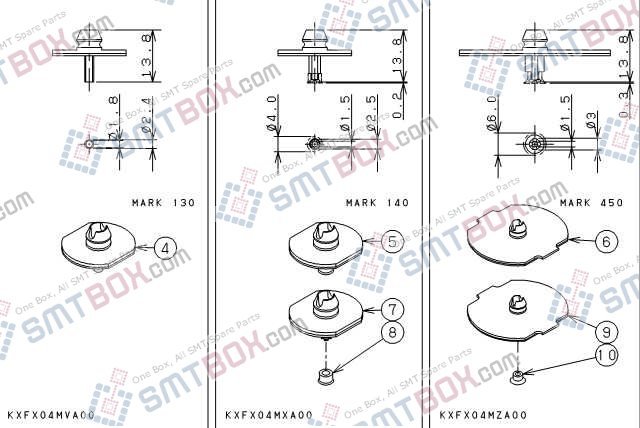

| 4 | KXFX04MVA00 | NOZZLENo.130 | N/A | 1 | N/A | N/A |
| 5 | KXFX04MXA00 | NOZZLENo.140 | N/A | 1 | N/A | N/A |
| 6 | KXFX04MZA00 | NOZZLENo.450 | N/A | 1 | N/A | N/A |
| 7 | KXFX04MWA00 | NOZZLE | N/A | 1 | N/A | N/A |
| 8 | KXFB0106A00 | PAD | N/A | 1 | N/A | N/A |
| 9 | KXFX04MYA00 | NOZZLE | N/A | 1 | N/A | N/A |
| 10 | KXFB0109A00 | PAD | N/A | 1 | N/A | N/A |
Nozzle for High-speed head CM201-D CM202-D CM201-DU CM202-DU CM201-DH CM202-DH CM202-DHU CM201-DS CM202-DS CM202-DK MODULE NUMBER 100YC0M0000
| NO | PART NUMBER | PART NAME | TYPE | Q’TY | RANK | REMARKS |
|---|---|---|---|---|---|---|

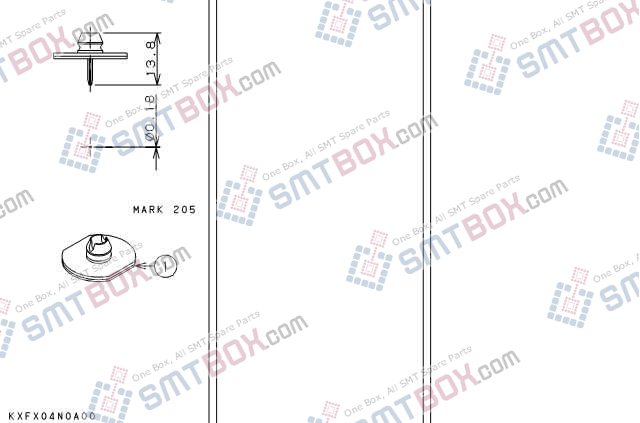

| 1 | KXFX04N0A00 | NOZZLE No.205 | N/A | 1 | N/A | N/A |
The Panasonic KME Panasert CM201 CM202 Series SMD Nozzle for High-speed head (SKU: head-dup-191) is a premium-grade SMT spare component manufactured for high-speed pick and place machines. Designed for maximum durability and precision, this part is part of our extensive Panasonic SMT Nozzle, Panasonic SMT Spare Parts, Thru-hole Parts inventory. It ensures seamless integration and high efficiency on active PCB assembly lines.
How to use Panasonic KME Panasert CM201 CM202 Series SMD Nozzle for High-speed head?
For optimal performance and durability, this component should be installed and calibrated by a certified SMT maintenance engineer. Regularly check the alignment, wear patterns, and vacuum suction parameters (for nozzles) to prevent component mispicks and ensure high assembly yields.
- Power down your mounter and disconnect the vacuum line.
- Clean the nozzle shaft or feeder mounting slot with ESD-safe cleaning alcohol.
- Carefully align the new component and tighten to the manufacturer's torque specifications.
- Perform a test cycle and verify the component alignment using mounter diagnostics before resuming full production.
