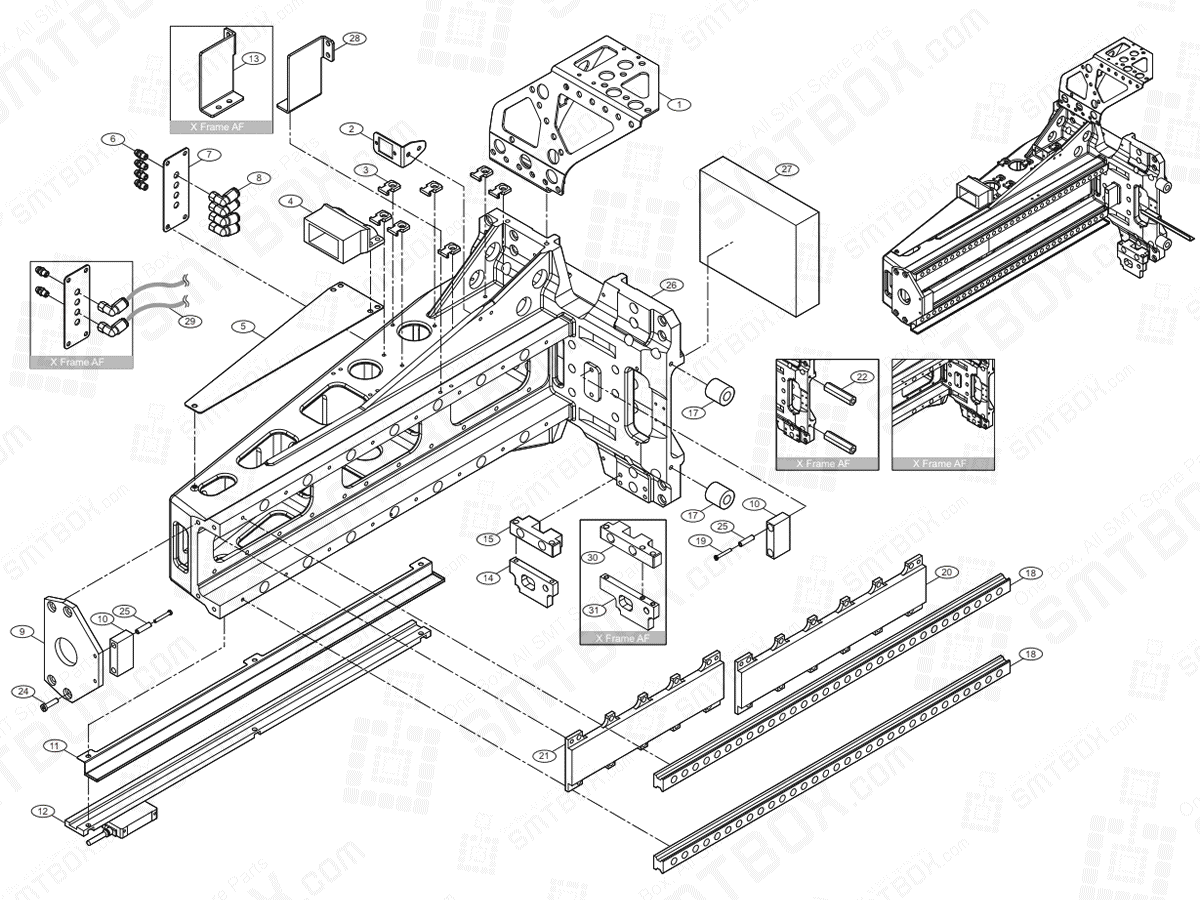

X Frame(2/2) on Hanwha (Samsung Techwin) Excellent Modular EXCEN PRO (D) (M) (L)

X FRAME2 2 On Hanwha Samsung Techwin Excellent Modular Excen Pro D M L

#1. P/N: FC09-001925B | Part name: Bracket Cableveyor Bkt B | Qty: 1 | Old P/N: FC 09-001925A

#2. P/N: FC09-001927A | Part name: Bracket Y Scale Cn Bkt | Qty: 1

#3. P/N: FC18-903199 | Part name: Anchor Mount Ctam1 M4 | Qty: 7

#4. P/N: EP03-000066 | Part name: Cableveyor X Cableveyor | Qty: 1

#5. P/N: FC36-000039A | Part name: Sheet Tefron Sheet | Qty: 1

#6. P/N: FC28-900355 | Part name: Grease Nipple C Mt6 | Qty: 4

#7. P/N: FC09-001926A | Part name: Bracket Y Nipple Plate | Qty: 1

#8. P/N: HP06-900079 | Part name: Elbow Union Female Kq2Lf04 M6 | Qty: 4

#9. P/N: FC30-000903A | Part name: Plate X Stopper Plt | Qty: 1

#10. P/N: J72541046A | Part name: X Stopper Root B J72541046A | Qty: 2

#11. P/N: FC28-000346B | Part name: Pan Oil Pan | Qty: 1 | Old P/N: FC 28-000346A(~#98, ~JULY 2015)

#12. P/N: EP19-000422 | Part name: Position Sensor Linear Linear Scale | Qty: 1 | Old P/N: EP19-000173(~#98, ~JULY 2015) Pair part: FC09-001820B, FC28-000346B

#13. P/N: FC09-001829A | Part name: Bracket Transport Bkt B | Qty: 1

#14. P/N: FC09-001923B | Part name: Bracket Mounting Y Scale Head Plt | Qty: 1 | Old P/N: FC 09-001923A

#15. P/N: FC09-001819B | Part name: Bracket Y Scale Head Bkt | Qty: 1 | Old P/N: FC 09-001819A

#17. P/N: FC29-001285A | Part name: Stopper Y Stopper Root | Qty: 1

#18. P/N: MC13-000149 | Part name: Lm Guide X Lm Guide W15 H13 L480 | Qty: 2

#19. P/N: FC18-90186838 | Part name: Socket Head Cap Screw M4*20 (Ni/Zn) | Qty: 2

#20. P/N: EP08-001001 | Part name: Motor Electric Linear\Motor Magnet | Qty: 1 | Old P/N: EP 08-000058

#21. P/N: EP08-001002 | Part name: Motor Electric Linear Motor Magnet | Qty: 1 | Old P/N: EP 08-000057

#22. P/N: FC29-001286A | Part name: Stopper Stopper | Qty: 2

#22. P/N: RM01-003743A | Part name: Bar Mted Y002A Stopper Hex Bar Al6061 | Qty: 4 | Reference: H950

#24. P/N: FC18-902026 | Part name: Lower Head Cap Screw Cbs5 10 | Qty: 1

#25. P/N: FC18-903149 | Part name: Spacer | Qty: 2

#26. P/N: FC39-000870C | Part name: X Frame A | Qty: 1 | Old P/N: FC 39-000870B

#26. P/N: FC39-000871C | Part name: X Frame B | Qty: 1 | Old P/N: FC 39-000871B

#27. P/N: EP08-000059 | Part name: Motor Electric Linear Motor Core Cdm30 4 | Qty: 1

#28. P/N: FC09-001828A | Part name: Bracket Transport Bkt A | Qty: 1

#29. P/N: HP13-900090 | Part name: Air Tube Tu0425C 2 | Qty: 1 | Reference: meter (UPPER:0.4m, LOWER:0.55m)

#30. P/N: FC09-007420A | Part name: Bracket Mted X002A Y Scale H Bkt | Qty: 1 | Reference: EXCEN PRO(D)

#31. P/N: FC30-004789A | Part name: Plate Mted X001A Y Scale Head Plt | Qty: 1 | Reference: EXCEN PRO(D)
