Universal Instrument UIC FlexJet Head Assembly 47541107 T47541107

The FlexJet Head Assembly is a high-speed 7-spindle flexible placement head. This head is capable of gang picking components up to 12mm square, inspecting components on the fly using on-board vision cameras, correcting the theta angle with rotation, and placing components in sequential order.

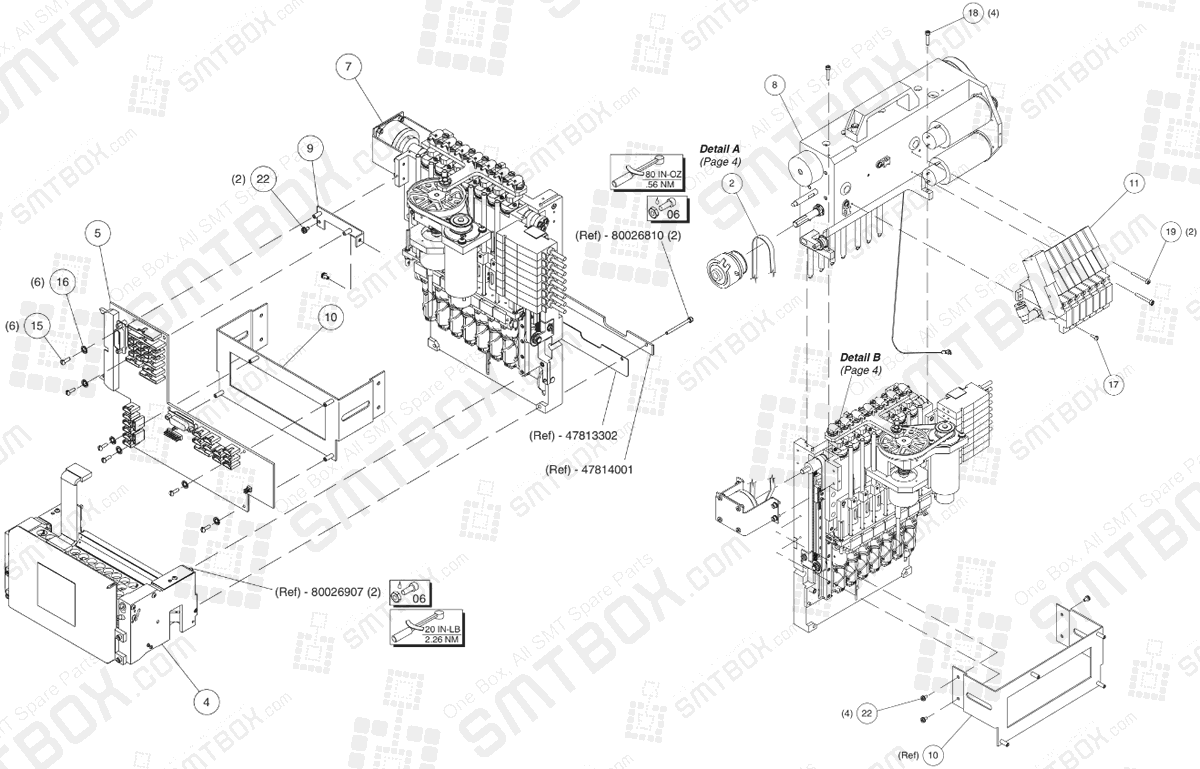

Universal Instrument UIC FlexJet Head Assembly 47541107 T47541107-side-a

#1 P/N: 13881000 | Ident Plate

#2 P/N: 40659579 | Belt, Timing

#3 P/N: 45854818 | Label, Head

#4 P/N: 47443405 | Camera Asm, 2.6 Oth

#5 P/N: 47467503 | Pc Bd, Head Control Asm

#6 P/N: 47480902 | Clamp, Belt 7 Ea

#7 P/N: 47541204 | Platform Assy

#8 P/N: 47541305 | Z-Axis Index Housing Assy

#9 P/N: 47546401 | Bracket

#10 P/N: 47546501 | Bracket

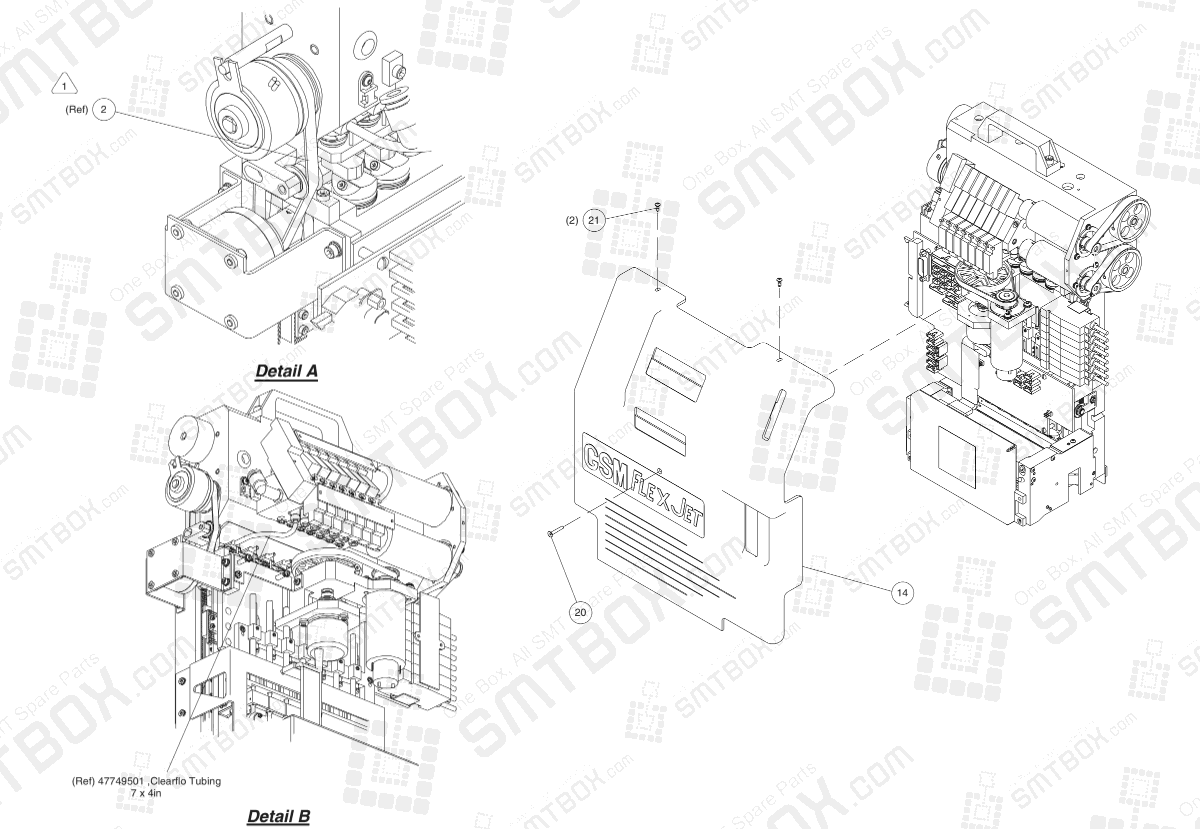

Universal Instrument UIC FlexJet Head Assembly 47541107 T47541107-side-b

#11 P/N: 47561902 | Assy, Manifold

#12 P/N: 47586101 | Belt, Timing Altered

#13 P/N: 47586201 | Belt, Timing Altered

#14 P/N: 47804001 | Gsm Flexjet,Cover

#15 P/N: 80008407 | Phms 4-40 X 1/2

#16 P/N: 80019002 | Itlw #4

#17 P/N: 80026803 | Mshcs M3 X 8mm

#18 P/N: 80026806 | Mshcs M3 X 16mm

#19 P/N: 80026809 | Mshcs M3 X 30mm

#20 P/N: 80028905 | Mscs M3 X 20mm

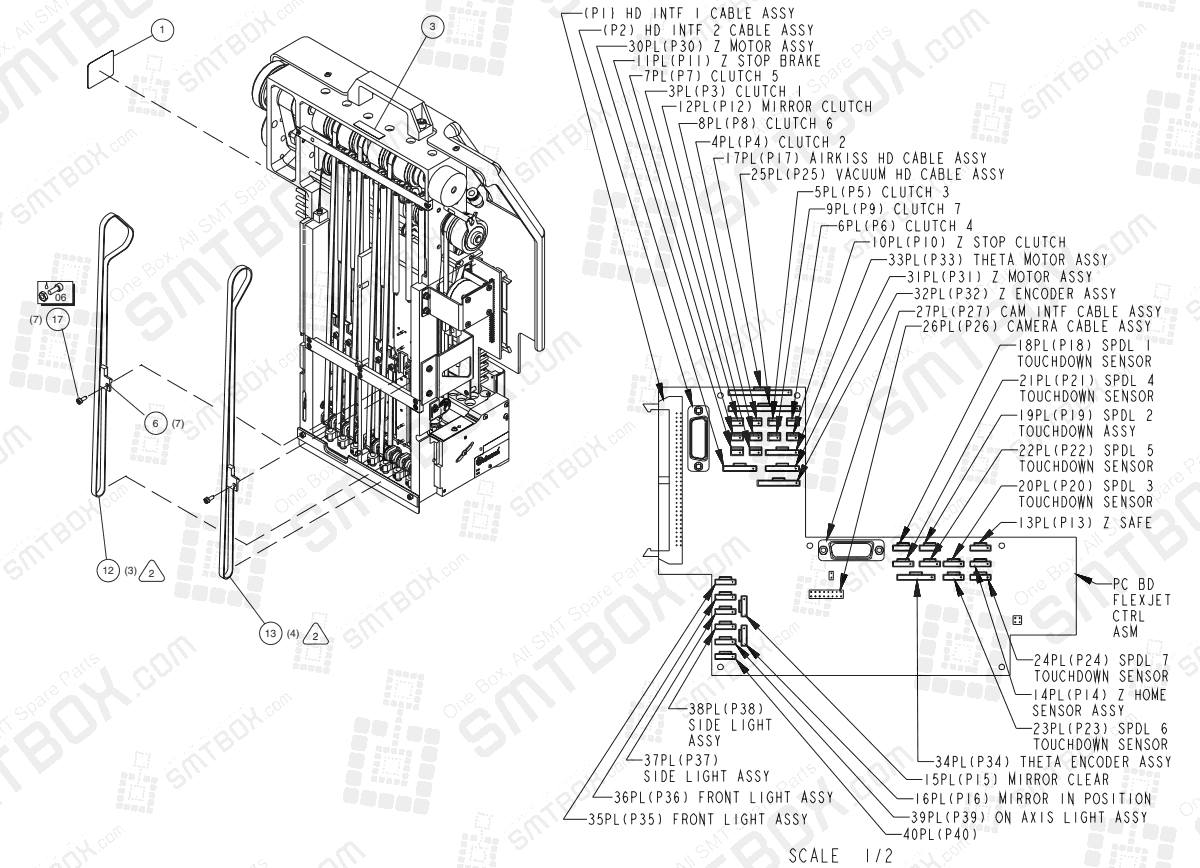

Universal Instrument UIC FlexJet Head Assembly 47541107 T47541107-side-c

#21 P/N: 80029801 | Msbhs M3 X 8mm

#22 P/N: 80060201 | Pph/Itlw M3X6mm

#23 P/N: 30885705 | Tubing, Poly 1/4 Od-Blue

#24 P/N: 47571101 | Label, Flexjet Hd

#25 P/N: 47612101 | Airkiss Hd Cable Assy

#26 P/N: 47612201 | Vacuum Hd Cable Assy

#27 P/N: 47749501 | Tubing, Clearflo

#28 P/N: T47541107 | Flex Jet Head Assy

Note:
1. Adjust belt tension until .050 inch (0.127 cm/1.27 mm) of deflection is achieved with 2 oz. of force.
2. Adjust belt tension until .200 inch (0.508 cm/5.08mm) of deflection is achieved with 2 oz. of force.
3. Set brake gap to .015 inch (0.038 cm/0.38 mm).
