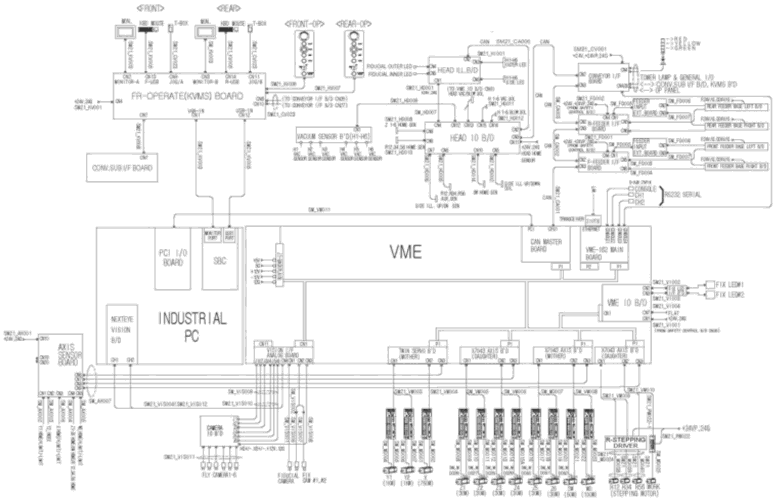

System Wiring Diagram of Samsung Techwin SM321 SMT Component Placer

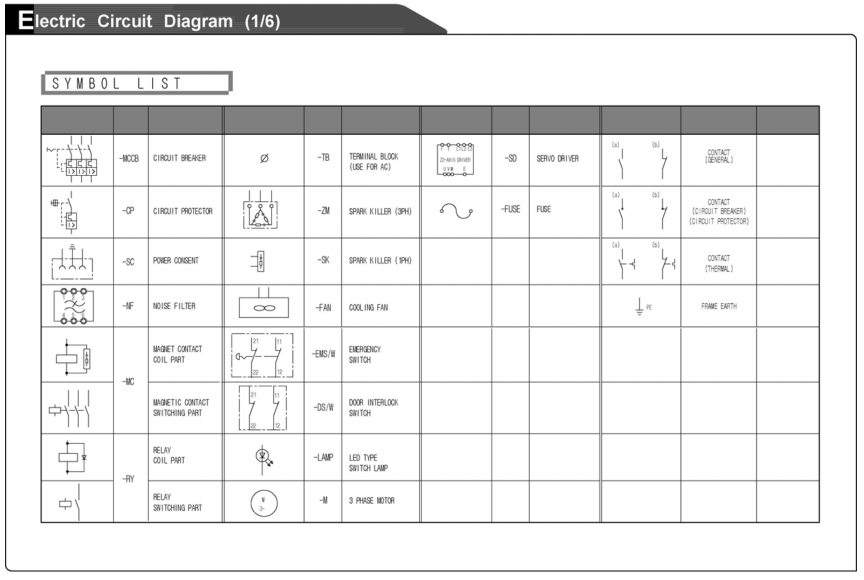

For more Electric Circuit Diagram of SM321, please feel free to contact us.

#1 P/N: J9080658C | Part Name: MAIN POWER CABLE ASS’Y | Type: SM_PW001

#2 P/N: J9080659A | Part Name: MAIN POWER INPUT CABLE ASS’Y | Type: SM_PW002

#3 P/N: J9080660C | Part Name: MCCB_NF1 CABLE ASS’Y | Type: SM_PW003

#4 P/N: J9080661A | Part Name: NF1_MAIN SWIT H CABLE ASS’Y | Type: SM_PW004

#5 P/N: J9083146A | Part Name: MAIN SWITCH_TRANS CABLE ASS’Y SM21-PW005

#6 P/N: J9080663A | Part Name: TRANS_CP1,2,3 CABLE ASS’Y | Type: SM_PW006

#7 P/N: J9080664A | Part Name: CP1,2_TB1 CABLE ASS’Y | Type: SM_PW007

#8 P/N: J9080665A | Part Name: CP3_TB1_MC2 CABLE ASS’Y | Type: SM_PW008

#9 P/N: J9080666A | Part Name: MC1,2_TB1 CABLE ASS’Y | Type: SM_PW009

#10 P/N: J9080667A | Part Name: FRONT MONITOR/PC POWER CABLE ASS’Y | Type: SM_PW010

#11 P/N: J9080668B | Part Name: TB1_PS#1,PS#2 POWER CABLE ASS’Y | Type: SM_PW011

#12 P/N: J9080669A | Part Name: FAN POWER CABLE ASS’Y | Type: SM_PW012

#13 P/N: J9080670A | Part Name: FAN(SERVO) POWER CABLE ASS’Y | Type: SM_PW013

#14 P/N: J9080672A | Part Name: Z1,Z2 SERVO POWER CABLE ASS’YSM_PW015

#15 P/N: J9080673A | Part Name: Z3,Z4 SERVO POWER CABLE ASS’Y | Type: SM_PW016

#16 P/N: J9080674A | Part Name: Z5,Z6 SERVO POWER CABLE ASS’Y | Type: SM_PW017

#17 P/N: J9080675A | Part Name: SW,WD SERVO POWER CABLE ASS’Y | Type: SM_PW018

#18 P/N: J9080676A | Part Name: X,Y2 SERVO POWER CABLE ASS’Y | Type: SM_PW018

#19 P/N: J9080677A | Part Name: Y1 SERVO POWER CABLE ASS’Y | Type: SM_PW020

#20 P/N: J9083147A | Part Name: CONVEYOR PACK B/D CABLE ASS’Y SM21-PW021

#21 P/N: J9083148A | Part Name: STEPPING DRIVER POWER CABLE ASS’Y SM21-PW022

#22 P/N: J9083149A | Part Name: DC24V MAIN POWER CABLE ASS’Y SM21-PW025

#23 P/N: J9083150A | Part Name: TRANSFORMER INPUT EXT.CABLE ASS’Y SM21-PW030
