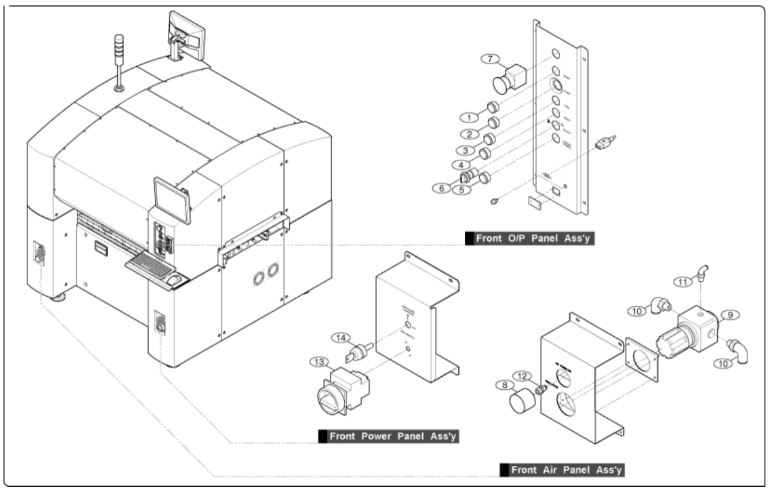

Front Function Panel Assembly on Samsung Techwin SM321 SMT Component Placer

Front Function Panel Assembly on Samsung Techwin SM321 SMT Component Placer

#1 P/N: J3403085A | Part Name: READY SWITCH ASS’Y | Qty: 1 | Type: 61-1100.0(CLEAR) | Remarks: Front, Rear Common

#2 P/N: J3403078A | Part Name: START SWITCH ASS’Y | Qty: 1 | Type: 61-1100.0(GREEN) | Remarks: Front, Rear Common

#3 P/N: J3403079A | Part Name: STOP SWITCH ASS’Y | Qty: 1 | Type: 61-1100.0(RED) | Remarks: Front, Rear Common

#4 P/N: J3403080A | Part Name: RESET SWITCH ASS’Y | Qty: 1 | Type: 61-1100.0(YEL) | Remarks: Front, Rear Common

#5 P/N: J3403086A | Part Name: FEEDER CHANGE SWITCH ASS’Y | Qty: 1 | Type: 61-1100.0(CLEAR) | Remarks: Front, Rear Common

#6 P/N: J3403081A | Part Name: SELECT SWITCH ASS’Y | Qty: 1 | Type: 61- 8520.12(SELECT) | Remarks: Front, Rear Common (OPTION)

#7 P/N: J3403082A | Part Name: EMERGENCY SWITCH ASS’Y | Qty: 1 | Type: 704.075.2(EM) | Remarks: Front, Rear Common

#8 P/N: J9080794A | Part Name: AIR INDICATOR CABLE ASS’Y | Qty: 1 | Type: SM-CV026

#9 P/N: J6709012A | Part Name: REGULATOR | Qty: 1 | Type: TAR4000-04

#10 P/N: J1301187 | Part Name: ELBOW FITTING | Qty: 2 | Type: PL12-04

#11 P/N: J6711028A | Part Name: ELBOW FITTING | Qty: 1 | Type: KQ2L04-01

#12 P/N: J6711116A | Part Name: BULKHEAD UNION FITTING | Qty: 1 | Type: KQ2E04-01S

#13 P/N: J3406005A | Part Name: LOAD SWITCH | Qty: 1 | Type: PI-25

#14 P/N: J9080745B | Part Name: SAFEGUARD OVERRIDE KEY SW CABLE | Qty: 1 | Type: SM-SC008
