Sub Part List of Hanwha Samsung Techwin 16mm SMN tape feeder SM DECAN NonIT SBFB33110K IT SBFB33010K

SMN 16MM Pneumatic Tape Feeder For SM/Decan Series

16MM NONIT P/N: SBFB33110K
16MM IT P/N: SBFB33010K

#A-1. P/N: J90650210B | Probe Cable Assy 1216 It

#A-1. P/N: J90650281B | Probe Cable Assy 1216 Nonit

#A-2. P/N: J90651436A | Sprocket Assy

#A-3. P/N: J90651471A | Cylinder Assy

#A-4 LEVER ASSY

#1. P/N: J70652192A | LINK2

#2. P/N: J1301303 | E-RING DIA5 (SUS)

#3. P/N: J90651437A | PUSHER LEVER ASSY

#4. P/N: J90651438A | CROSS LEVER ASSY

#A-5 DRAIN ASSY

#1. P/N: J1301023 | E-Ring Dia3 (Sus)

#2. P/N: J90651481A | Pusher Link Assy

#3. P/N: J90650197B | Swing Link Assy

#4. P/N: J90651442A | Drain Link Assy

#A-6. P/N: J90650295B | Toggle Assy

#1. P/N: J70650999B | T Link4

#2. P/N: J70650998B | T Link3

#3. P/N: J70650996B | T Link1

#4. P/N: J70660002C | T Link2 Shaft2

#5. P/N: J70660029B | T Link3 Shaft1

#6. P/N: J70660007C | T Link1 Shaft2

#7. P/N: J1301023 | E Ring3 Dia3 (Sus)

#8. P/N: J1301149 | E Ring4 Dia4 (Sus)

#9. P/N: J90650181B | T Link2 Assy

#10-1. P/N: J90650206B | T Link 5 Assy

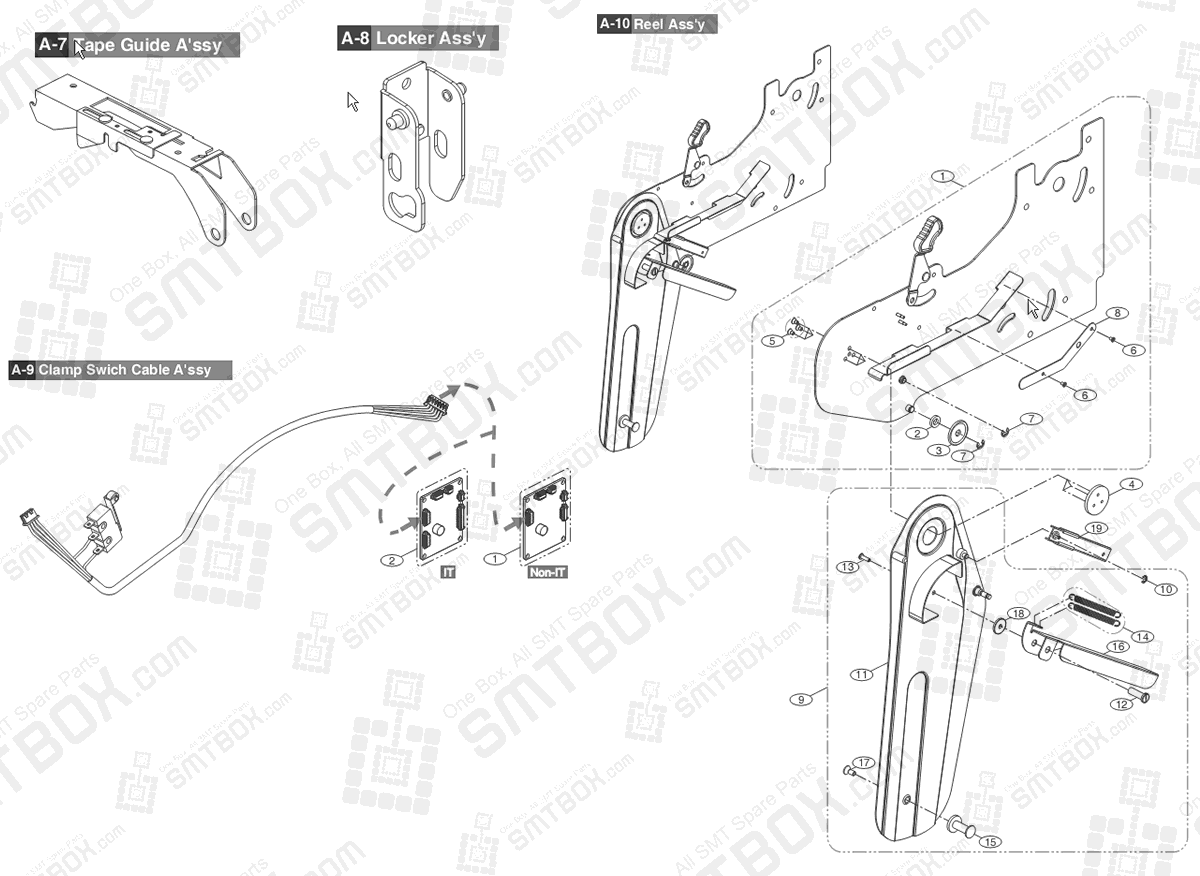

#A-7. P/N: J90651446A | Tape Guide Assy

#A-8. P/N: J90651448A | Locker Assy

#A-9. P/N: J90651480A | Clamp Switch Cable Assy

#1. P/N: J90600367C | Nonit Pcb Assy 105

#2. P/N: J90600366B | It Slave Pcb Assy

#A-10 REEL PLATE ASSY

#1. P/N: J90651443A | Reel Plate Assy

#2. P/N: J7265131A | Amper

#3. P/N: J7065802A | Amper Washer

#4. P/N: J7066079A | Eel Plate Shaft

#5. P/N: J1301158 | Flat Head Cap Screw M3*5 (Sus)

#6. P/N: J7066047A | Flat Head Cap Screw-H4.4

#7. P/N: J1301149 | E-Ring Dia4 (Sus)

#8. P/N: J70652289A | Cable Cover

#9. P/N: J90651476A | Reel Arm Plate Assy

#10. P/N: J1301023 | E-Ring Dia3 (Sus)

#11. P/N: J70652268A | Reel Arm Plate

#12. P/N: J70652597A | Reel Brake Pin

#13. P/N: J6004301050 | Button Head Cap Screw M3*10(Sus)

#14. P/N: J70660084B | Reel Lever Spring

#15. P/N: J7065825A | Reel Arm Post

#16. P/N: J70652276A | Reel Brake

#17. P/N: J6006401059 | Flat Head Cap Screw M4 X 10Mm

#18. P/N: J70652557A | Reel Brake Spacer

#19. P/N: J9065092A | Reel Stopper Assy

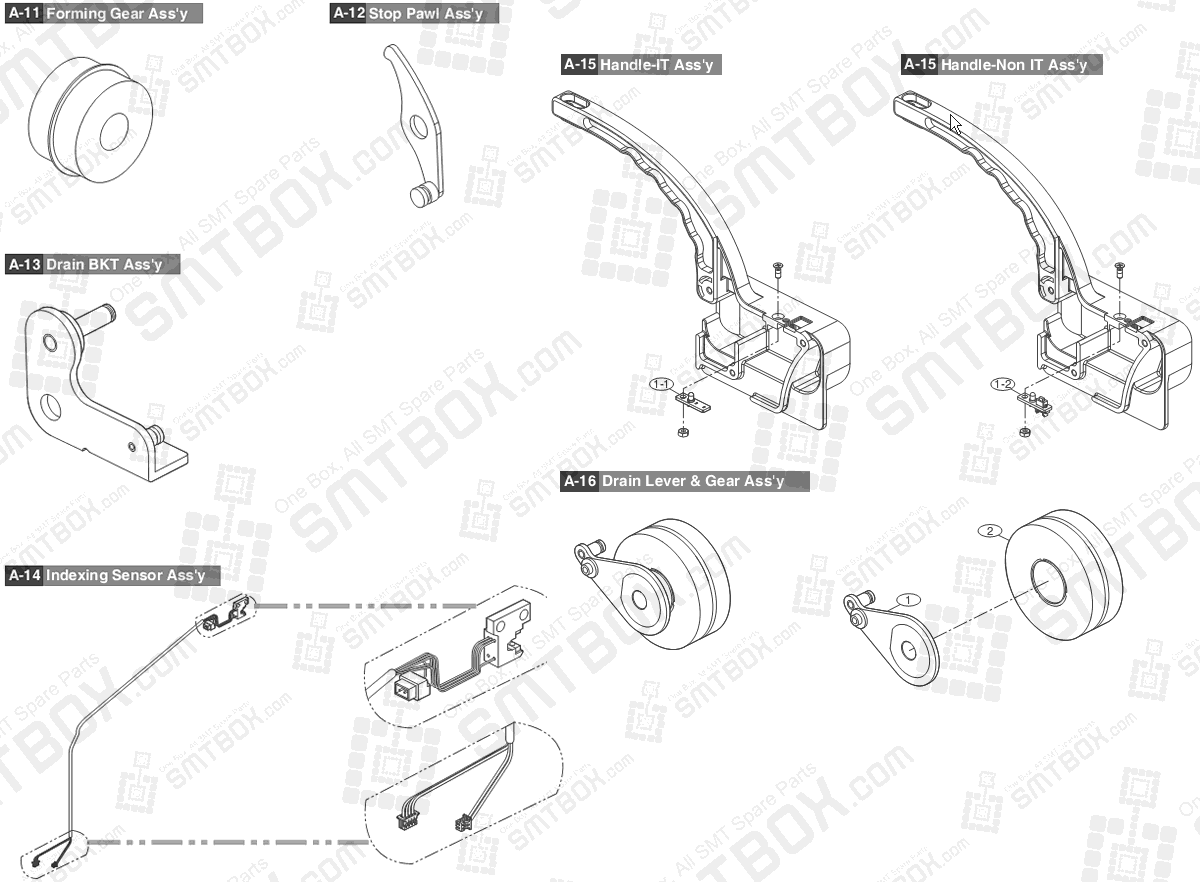

#A-11. P/N: J9065203A | Forming Gear Assy

#A-12. P/N: J90651543A | Stop Pawl Assy

#A-13. P/N: J90650204B | Drain Bkt Assy

#A-14. P/N: J91671830A | Indexing Sensor Assy

#A-15. P/N: J90651544A | Handle It Assy

#1-1. P/N: J90650176C | Feeding Switch Assy It 105

#1-1. P/N: J90651545A | Handle Non It Assy

#1-2. P/N: J90650280C | Feeding Switch Assy Nonit 105

#A-16 DRAIN LEVER & GEAR ASSY

#1. P/N: J90651440A　| 16mm Drain Lever Assy

#2. P/N: J90651542A| Rain Gear Assy
