Sub Part List Hanwha SM DECAN SME SMT Feeder 24mm

SME 24mm IT Electric Tape Feeder P/N: SBFB51105K
SME 24mm NONIT Electric Tape Feeder P/N: SBFB34100K

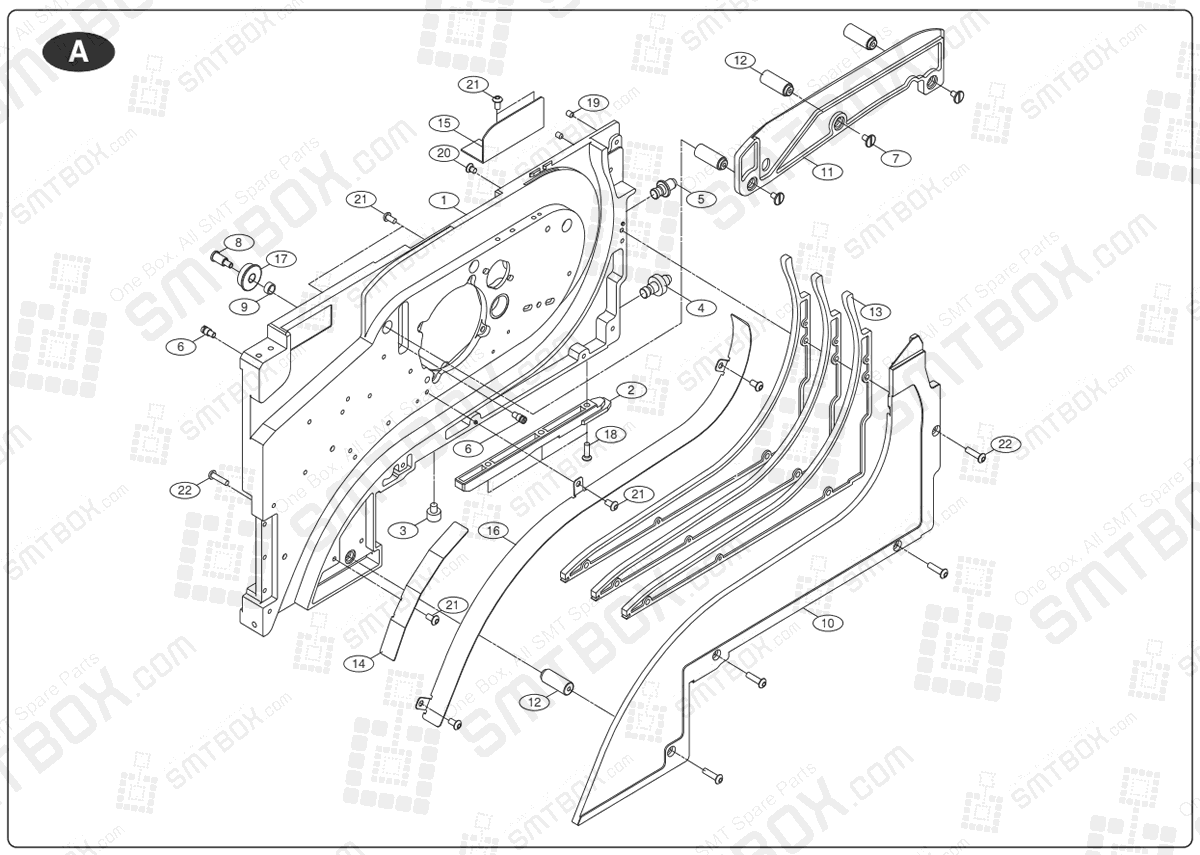

Sub 1 Mechanical Part List of SME 24mm Samsung Techwin SM DECAN Serials IT / NONIT SMT Feeder

#A P/N: S90000003A | Main Frame Assy

#1 P/N: S71000002A | Feeder Main Body

#2 P/N: J70650978C | Install Guide

#3 P/N: S70000001A | Btm Loc’ Pin

#4 P/N: J70650948B | Location Flange

#5 P/N: S70000002A | Front Guide Pin

#6 P/N: S70000003A | Vinyl Moving Spring Shaft 2

#7 P/N: S70000004A | Idle Fix Bolt

#8 P/N: S70000005A | Tension Roller Bolt

#9 P/N: S70000006A | Tension Roller Washer

#10 P/N: S71000004A | Side Frame Btm

#11 P/N: S71000005A | Side Frame Top

#12 P/N: S70000013A | Feeder Spacer Shaft-24

#13 P/N: S72000001A | Frame Spacer-24

#14 P/N: S70000014A | Tape Bottom Cover-24

#15 P/N: S70000015A | Tape Support Plate 2 ? 24

#16 P/N: S70000016A | Tape Path Cover-24

#17 P/N: S66010003A | Bearing

#18 P/N: S60060005A | Fhcs

#19 P/N: S60100001A | Set Screw

#20 P/N: S60060003A | Fhcs

#21 P/N: S60050001A | Bhcs

#22 P/N: S60050004A | Bhcs

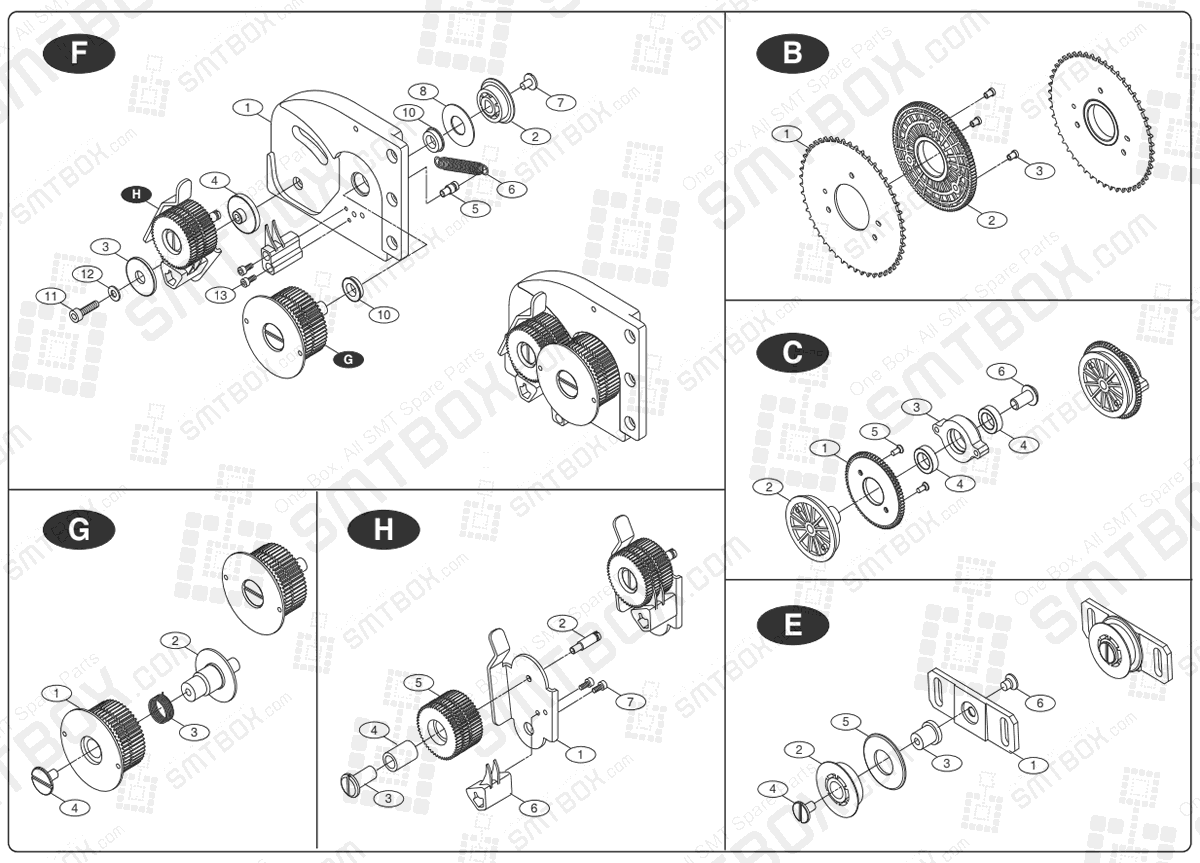

Sub 2 Mechanical Part List of SME 24mm Samsung Techwin SM DECAN Serials IT / NONIT SMT Feeder

#B P/N: S90000007A | Sprocket Assy

#C P/N: S90000009A | Idle Gear Assy

#1 P/N: S70000114A | Idle Gear

#2 P/N: S72000005A | Idle Gear Pulley

#3 P/N: S70000033A | Idle Bearing Holder

#4 P/N: S66010004A | Bearing

#5 P/N: S60060001A | Fhcs

#6 P/N: S60050006A | Bhcs

#D P/N: S90000011A | Motor Assy

#E P/N: S90000012A | Tension Pulley Assy

#1 P/N: S72000007A | Tension Pulley Block

#2 P/N: S72000008A | Tension Pulley

#3 P/N: S70000035A | Tension Pulley Shaft

#4 P/N: S70000004A | Idle Fix Bolt

#5 P/N: S72000009A | Pulley Flange

#6 P/N: S60060007A | Fhcs

#F P/N: S90000014A | Vinyl Discharge Assy

#1 P/N: S72000010A | Discharge Frame

#2 P/N: S72000011A | Vinyl Fix Roller Pulley

#3 P/N: S70000037A | Support Clamp Washer

#4 P/N: S70000038A | Moving Handle Support

#5 P/N: S70000003A | Vinyl Moving Spring Shaft 2

#6 P/N: S70000040A | Vinyl Moving Roller Spring

#7 P/N: S70000004A | Idle Fix Bolt

#8 P/N: S72000009A | Pulley Flange

#9 P/N: S72000014A | Vinyl Separator 1

#10 P/N: S66010005A | Bearing

#11 P/N: S60010002A | Shcs

#12 P/N: S60420001A | Flat Washer

#13 P/N: S60010001A | Shcs

#G P/N: S90000019A | Vinyl Exit Roller Assy

#1 P/N: S72000019A | Torque Limit Gear 24

#2 P/N: S70000045A | Torque Limit Shaft 24

#3 P/N: S70000046A | Torque Limit Spring 24

#4 P/N: S70000044A | Torque Limit Shaft Bolt

#H P/N: S90000024A | Vinyl Exit Moving Assy

#1 P/N: S70000051A | Moving Roller Handle

#2 P/N: S70000052A | Vinyl Moving Spring Shaft 1

#3 P/N: S70000054A | Vinyl Moving Roller Shaft-24

#4 P/N: S71000017A | Vinyl Moving Roller Sleeve 24

#5 P/N: S72000025A | Vinyl Gear C 24

#6 P/N: S72000026A | Vinyl Separator 2 24

#7 P/N: S60010001A | Shcs

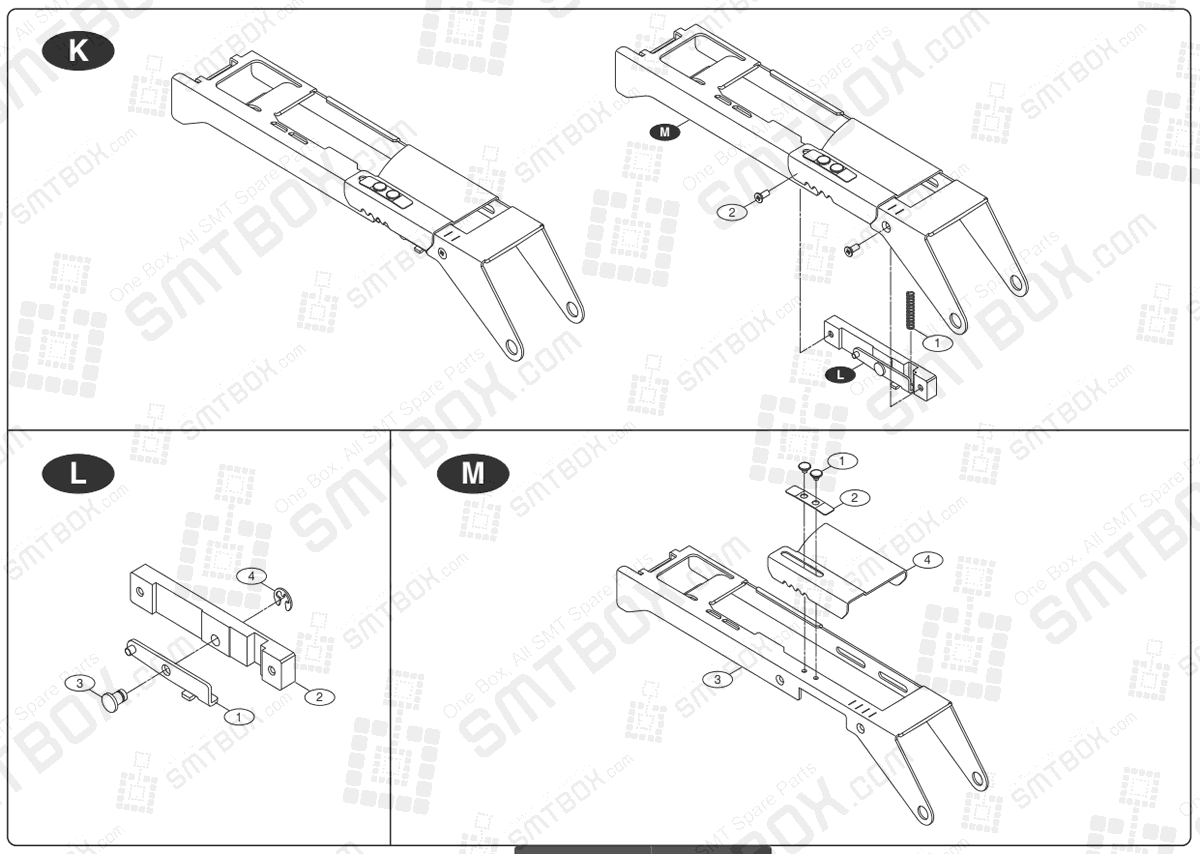

Sub 3 Mechanical Part List of SME 24mm Samsung Techwin SM DECAN Serials IT / NONIT SMT Feeder

#I P/N: S90000028A | Sprocket Sensor Assy

#1 P/N: S70000058A | Sprocket Sensor Holder

#2 P/N: S32120001A | Sprocket Sensor

#3 P/N: S91000001A | Sprocket Sensor Cable

#4 P/N: S60010001A | Shcs

#J P/N: J90651523A | Locker Assy

#K P/N: S90000032A | Tape Guide Assy

#1 P/N: S70000059A | Vinyl Cover Lever Spring

#2 P/N: S60060001A | Fhcs

#L P/N: S90000036A | Vinyl Adt. Assy

#1 P/N: S90000037A | Vinyl Cover Lever Assy

#2 P/N: S70000062A | Vinyl Adt. Block

#3 P/N: S70000063A | Vinyl Cover Lever Shaft

#4 P/N: S60710001A | Snap Ring

#M P/N: S90000040A | Tape Guide Shutter Assy

#1 P/N: S70000064A | Vinyl Cover Guide Pin

#2 P/N: S70000065A | Vinyl Cover Spring Plate

#3 P/N: S70000069A | Tape Guide 24

#4 P/N: S90000046A | Vinyl Moving Cover Assy

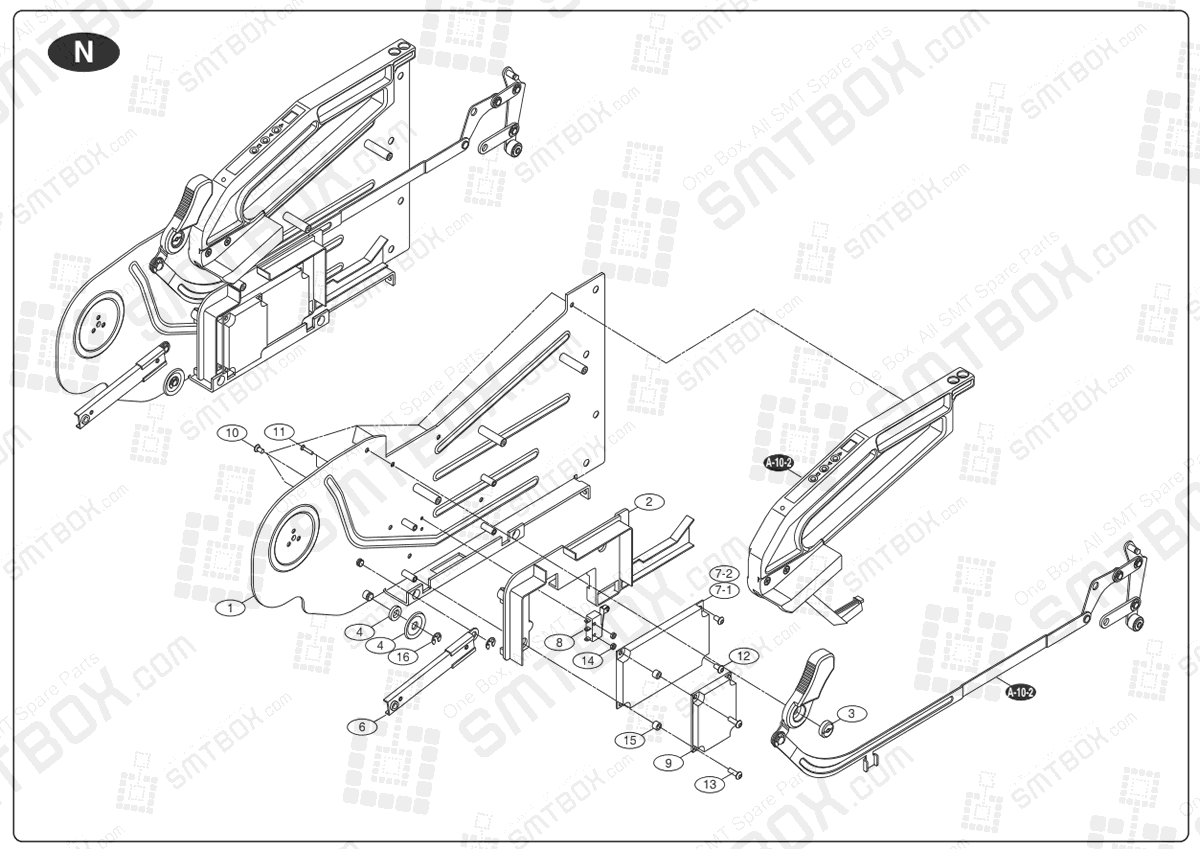

Sub 4 Mechanical Part List of SME 24mm Samsung Techwin SM DECAN Serials IT / NONIT SMT Feeder

#N P/N: S90000052A | Aux. Assy

#1 P/N: S71000021A | Aux. Plate

#2 P/N: S72000033A | Link Cover

#3 P/N: S70000080A | Grip Nut

#4 P/N: J7265131A | Damper

#5 P/N: J7066315A | Damper Washer

#6 P/N: J9065092A | Stopper Assy

#7-1 P/N: S91000002A | Main Board(It)

#7-2 P/N: S91000009A | Main Board(Non-It)

#8 P/N: S91000007A | Limit Switch Cable Assy

#9 P/N: J90600366B | It Slave Pcb Assy

#10 P/N: S60060004A | Fhcs

#11 P/N: S60060002A | Fhcs

#12 P/N: S60050001A | Bhcs

#13 P/N: S60050003A | Bhcs

#14 P/N: S60250001A | Nut

#15 P/N: S61190002A | Support

#16 P/N: S60710003A | Snap Ring

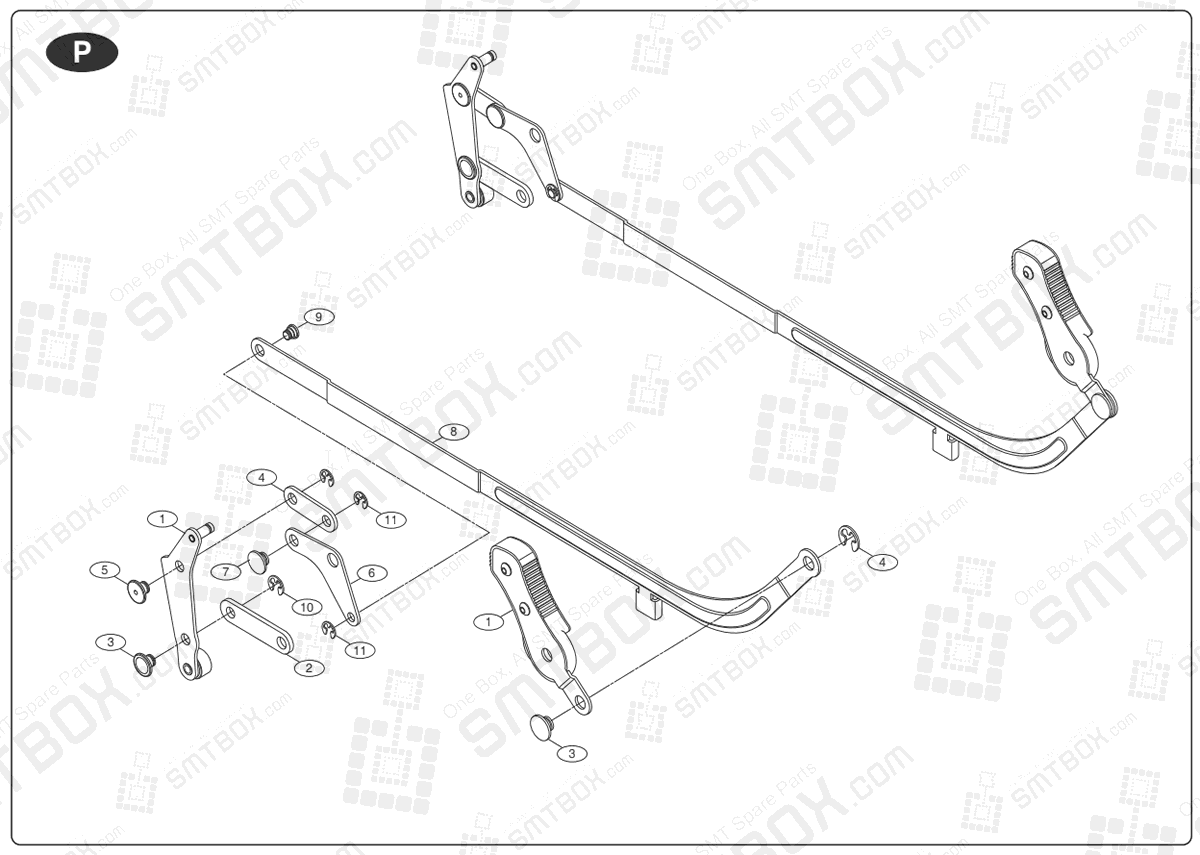

Sub 5 Mechanical Part List of SME 24mm Samsung Techwin SM DECAN Serials IT / NONIT SMT Feeder

#O P/N: S90000056A | Feeder Clamp Assy

#1 P/N: J90651524A | Clamp Lever Assy

#2 P/N: S90000057A | T Link Assy

#2-1 P/N: S90000058A | T Link2 Assy

#2-2 P/N: J70650996B | T Link1

#2-3 P/N: J70660007C | T Link1 Shaft2

#2-4 P/N: J70652737A | T Link3

#2-5 P/N: J70660002C | T Link2 Shaft 2

#2-6 P/N: J70652736A | T Link4

#2-7 P/N: J70660029B | T Link3 Shaft1

#2-8 P/N: S70000084A | T Link5

#2-9 P/N: J70652727A | T Link4 Pin

#2-10 P/N: S60710003A | Snap Ring

#2-11 P/N: S60710002A | Snap Ring

#3 P/N: S70000083A | T Link5 Shaft 1

#4 P/N: S60710004A | Snap Ring

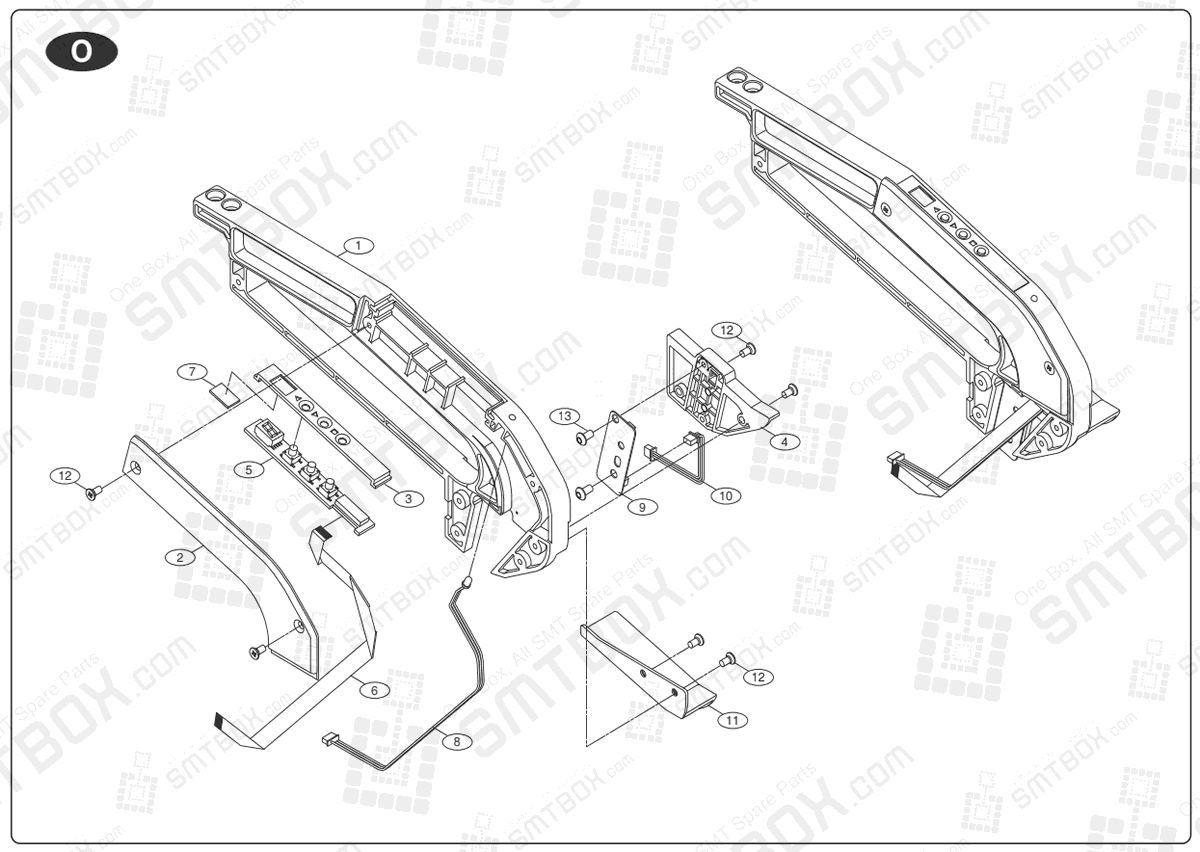

Sub 6 Mechanical Part List of SME 24mm Samsung Techwin SM DECAN Serials IT / NONIT SMT Feeder

#P P/N: S90000061A | Handle Assy

#1 P/N: S72000034A | Feeder Handle

#2 P/N: S72000035A | Control Board Cover

#3 P/N: S72000036A | Control Switch Cover

#4 P/N: S72000037A | Splicing D/T Holder

#5 P/N: S91000003A | Switch Board Assy

#6 P/N: S91000004A | Switch Board Cable AssY

#7 P/N: S72000051A | Fnd Glass

#8 P/N: S91000005A | It Led Cable Assy

#9 P/N: S91000010A | Splice Board Assy

#10 P/N: S91000006A | Splicing Sensor Cable ASSY

#11 P/N: S72000040A | Splicing Guide 24

#12 P/N: S60060004A | Fhcs

#13 P/N: S60050001A | Bhcs

#Q P/N: J90651884A | 24Mm Reel Arm Plate AsSY

#R P/N: J91672414A | Probe Cable Assy-Nonit

#S P/N: S91000008A | It Board If Cable Assy

#T P/N: S90000010A | Drop Gear Assy
