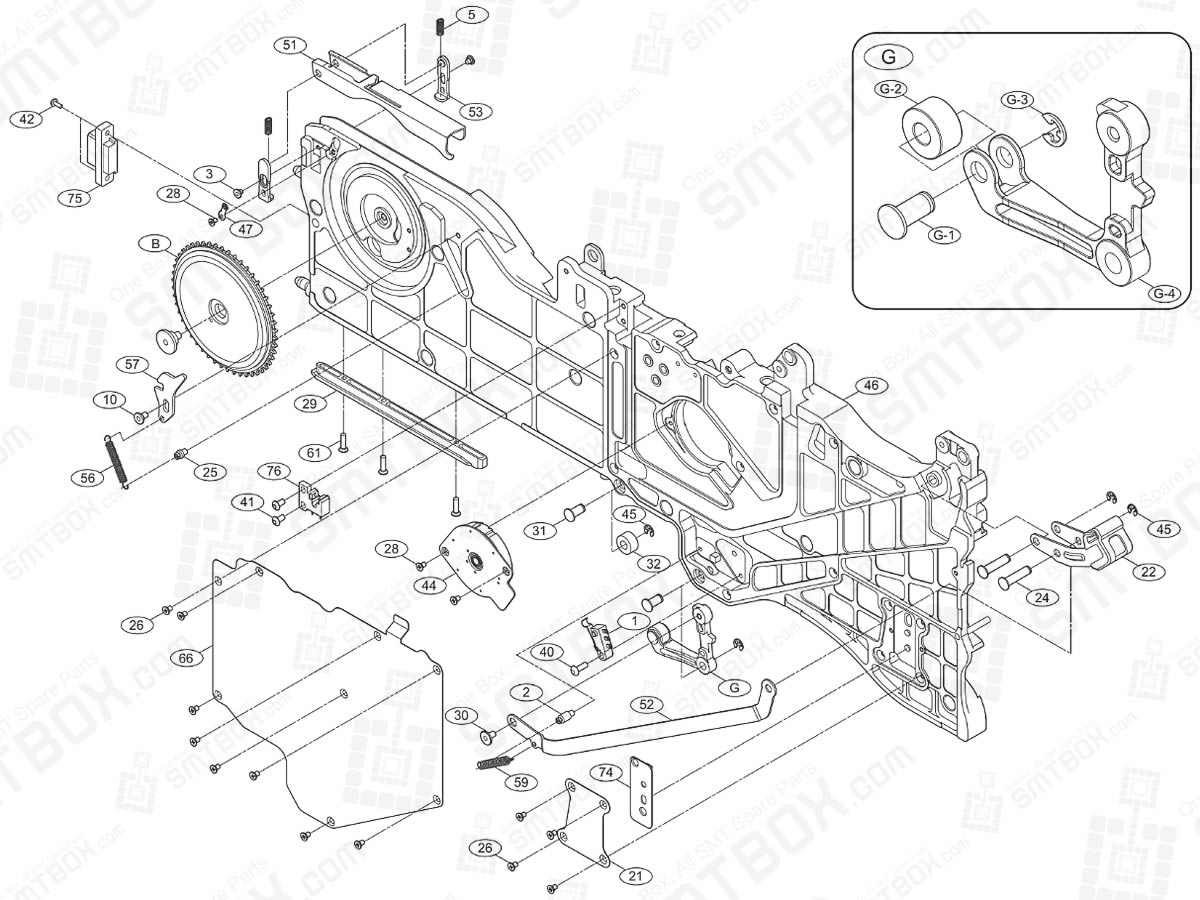

EXPLODED ILLUSTRATION Hanwha EXCEN SM DECAN Series V Feeder F.A.S.T. 12mm Auto Loading Auto Splicing Smart Electric Feeder PN MF2-1131/CO is below:
#A. P/N: AM03-003847A | V Second Gear Assy-L
#B. P/N: AM03-003845A | V Sprocket Assy-L
#C. P/N: AM03-003840A | V D-Follower Assy 12
#D. P/N: AM03-003839A | V D-Tensioner Assy 12
#E. P/N: AM03-003752A | Index Sensor Assy Vl
#F. P/N: AM03-003749A | Ui Assy Vl
#G. P/N: AM03-001557A | Clamp V Assy
#G-1. P/N: J70653553A | Clamping Roller
#G-2. P/N: J70653554A | Clamp Block Shaft
#G-3. P/N: J1301023 E | Ring(3)
#G-4. P/N: FC07-000294A | CLAMP BLOCK
#1. P/N: AM03-000613A | Clamp Switch Harness Assy Vl
#2. P/N: MC19-000194A | V Clamp Spring Shaft-L
#3. P/N: MC19-000193A | V Locker Front Shaft-L
#4. P/N: MC19-000192A | V D-Stage Gear1 Shaft-L
#5. P/N: FC38-000044A | V Locker Front Spring-L
#6. P/N: MC19-000190A | V Motor Gear Shaft-L
#7. P/N: MC19-000189A | V Sprocket Shaft-L
#8. P/N: MC19-000182A | V D-Gear Shaft 1216
#9. P/N: MC19-000179A | V D-Tensioner Hinge 1216
#10. P/N: MC19-000171A | V Locker Lever Shaft-L
#11. P/N: MC11-000244A | V Drain Stage Gear3-L
#12. P/N: MC11-000243A | V Motor Gear-L
#13. P/N: MC11-000233A | V Drain Gear 1216
#14. P/N: J91741316A | Smv_Feeder_Main_Board
#15. P/N: J90651597A | D-Box Link2 L Assy
#16. P/N: J70652749A | Vinyl Cutter
#17. P/N: FC09-000865A | Clamp Hook
#18. P/N: J71651465A | Main Led Light
#19. P/N: J70661461A | D-Stage Gear2
#20. P/N: GD03-000049A | D-STAGE GEAR1
#21. P/N: J70661281A | Splicing Board Cover-L
#22. P/N: J70661259A | Clamp Lever
#23. P/N: J70661257A | Spring Holder
#24. P/N: J70661254A | Clamp Roller Shaft
#25. P/N: J70661204A | Locker Spg Shaft
#26. P/N: J7066047A | Flat Head Cap Screw
#27. P/N: J70653940A | Flat Tapping Screw 3X7-2
#28. P/N: J70653926A | Pan Cap Screw
#29. P/N: J70653560A | Install Guide
#30. P/N: MC19-000174A | Clamp Link Shaft1
#31. P/N: J70653554A | Clamp Block Shaft
#32. P/N: J70653553A | Clamping Roller
#33. P/N: J70661291A | D-Tensioner L Spring
#34. P/N: J70661292A | D-Follower L Spring
#35. P/N: J70652830A | Flanged Shaft
#36. P/N: J64091017A | Magnet
#37. P/N: J70661295A | Clamp Hook Spring
#38. P/N: J6006301536 | Flat Head Cap Screw
#39. P/N: J6006300850 | Flat Head Cap Screw
#40. P/N: J6005300838 | Button Head Socket Screw
#41. P/N: J6005300538 | Button Head Socket Screw
#42. P/N: J6004250650 | Button Head Cap Screw
#43. P/N: J31021028A | Index Motor-L
#44. P/N: EP08-000819A | V Drain Motor-L
#45. P/N: J1301023 | E-Ring
#46. P/N: FC39-000483A | Main Body 12Mm
#47. P/N: FC38-000047A | V Tape Guide Spring Plate-L
#48. P/N: FC35-000034A | V D-Tensioner Roller 1216
#49. P/N: FC29-000716A | V Handle Right-L
#50. P/N: FC29-000715A | V Handle Left-L
#51. P/N: FC29-000696A | V Tape Guide 12
#52. P/N: FC28-000220A | V Clamp Link-L
#53. P/N: FC28-000218A | V Locker Front-L
#54. P/N: FC28-000215A | V D-Box Door 1216
#55. P/N: FC28-000212A | V D-Box Link1 1216
#56. P/N: FC38-000056A | V Locker Lever Spring 12
#57. P/N: FC24-000013A | V Rear Locker-L
#58. P/N: FC18-000303A | V Drain Lever Pin-L
#59. P/N: FC38-000046A | V Clamp Return Spring-L
#60. P/N: J70661293A | Clamp Spring
#61. P/N: FC18-000693 | Flat Head Cap Screw
#62. P/N: FC18-000705 | Tapping Screw
#63. P/N: FC18-000704 | Tapping Screw
#64. P/N: FC18-000700 | Button Head Cap Screw 8
#65. P/N: FC15-000576A | V Drain Cover-L
#66. P/N: FC15-000575A | V Left Cover-L
#67. P/N: FC15-000574A | V Right Cover2-L
#68. P/N: FC15-000573A | V Right Cover1-L
#69. P/N: FC09-000952A | V D-Gear Bkt2 1216
#70. P/N: FC09-000949A | V D-Gear Bkt 1216
#71. P/N: FC07-000313A | V Splicing Right Block 12
#72. P/N: FC07-000312A | V Splicing Left Block-L
#73. P/N: FC07-000309A | V Support Block Drain-L
#74. P/N: AM03-001550A | Vfsb Large
#75. P/N: AM03-000616A | Main Connector Harness Assy Vl
#76. P/N: AM03-000614A | Drain Sensor Harness Assy Vl
