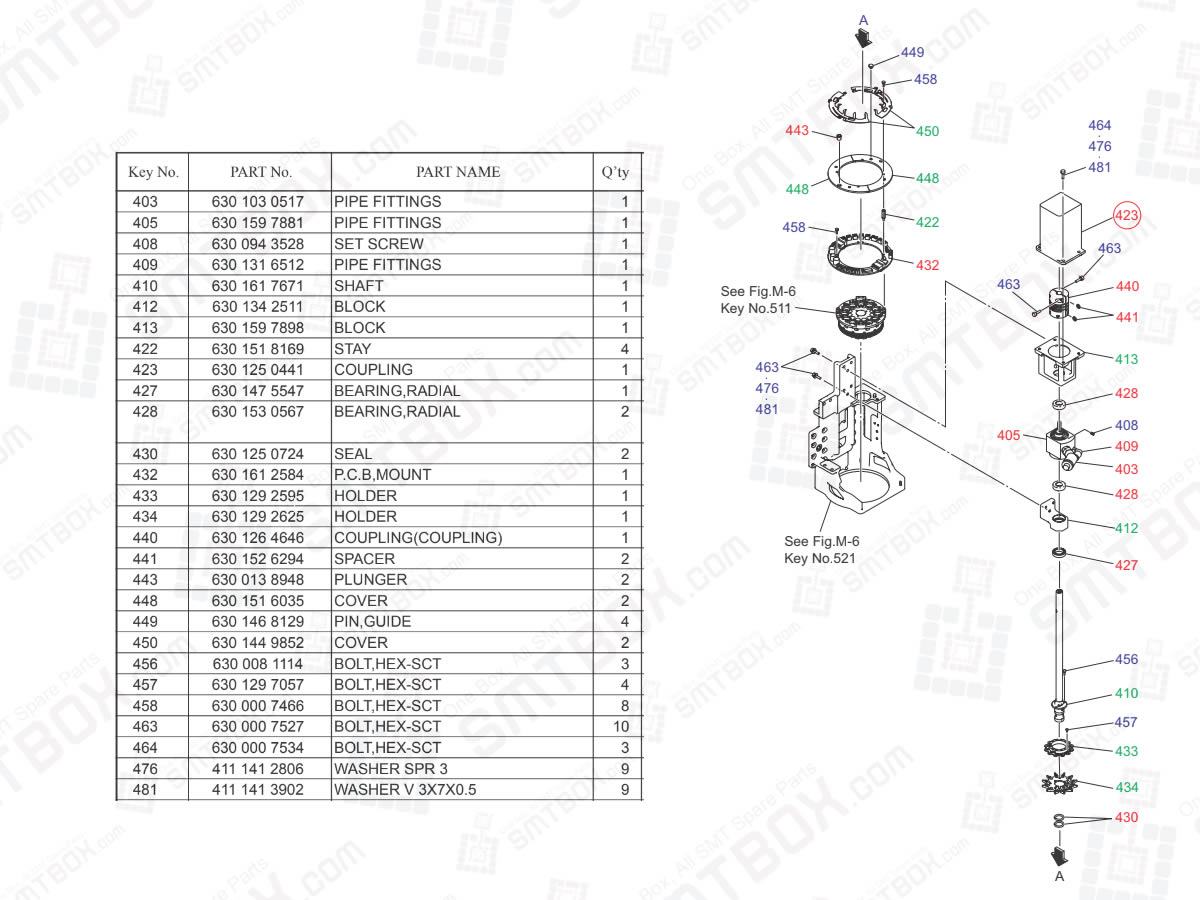

Shaft Rotation Section For Head Section on Yamaha Hitachi Chip Mounting System HH-G300 High Speed Head Unit

Shaft Rotation Section For Head Section on Yamaha Hitachi Chip Mounting System HH-G300 High Speed Head Unit

#403. P/N: 630 103 0517 | Pipe Fittings Kq2K08-01S

#405. P/N: 630 159 7881 | Pipe Fittings

#408. P/N: 630 094 3528 | Set Screw

#409. P/N: 630 131 6512 | Pipe Fittings Kq2L04-M5

#410. P/N: 630 161 7671 | Shaft

#412. P/N: 630 134 2511 | Block

#413. P/N: 630 159 7898 | Block

#422. P/N: 630 151 8169 | Stay Bsu-2012

#423. P/N: 630 125 0441 | Coupling -U37 S38Hl2-2P-X

#427. P/N: 630 147 5547 | Bearing Radial 6701Zz

#428. P/N: 630 153 0567 | Bearing Radial L-1790Zz Rp0P25Ly121

#430. P/N: 630 125 0724 | Seal Co 0007A

#432. P/N: 630 161 2584 | P.C.B Mount -U04 #Ub73 Ver.1

#433. P/N: 630 129 2595 | Holder

#434. P/N: 630 129 2625 | Holder

#440. P/N: 630 126 4646 | Coupling(Coupling)

#441. P/N: 630 152 6294 | Spacer Wasb6-3-1

#443. P/N: 630 013 8948 | Plunger Ebp5

#448. P/N: 630 151 6035 | Cover

#449. P/N: 630 146 8129 | Pin Guide

#450. P/N: 630 144 9852 | Cover

#456. P/N: 630 008 1114 | Bolt Hex-Sct M2X8

#457. P/N: 630 129 7057 | Bolt Hex-Sct M1.6X3

#458. P/N: 630 000 7466 | Bolt Hex-Sct M2X6

#463. P/N: 630 000 7527 | Bolt Hex-Sct 10 M3X10

#464. P/N: 630 000 7534 | Bolt Hex-Sct M3X12

#476. P/N: 411 141 2806 | Washer Spr

#481. P/N: 411 141 3902 | Washer V 3X7X0.5

Notice) The Key No. 423 (with a circle) is an important maintenance component. Because high-grade technique is required for the replacement of this component, consult our service personnel.
