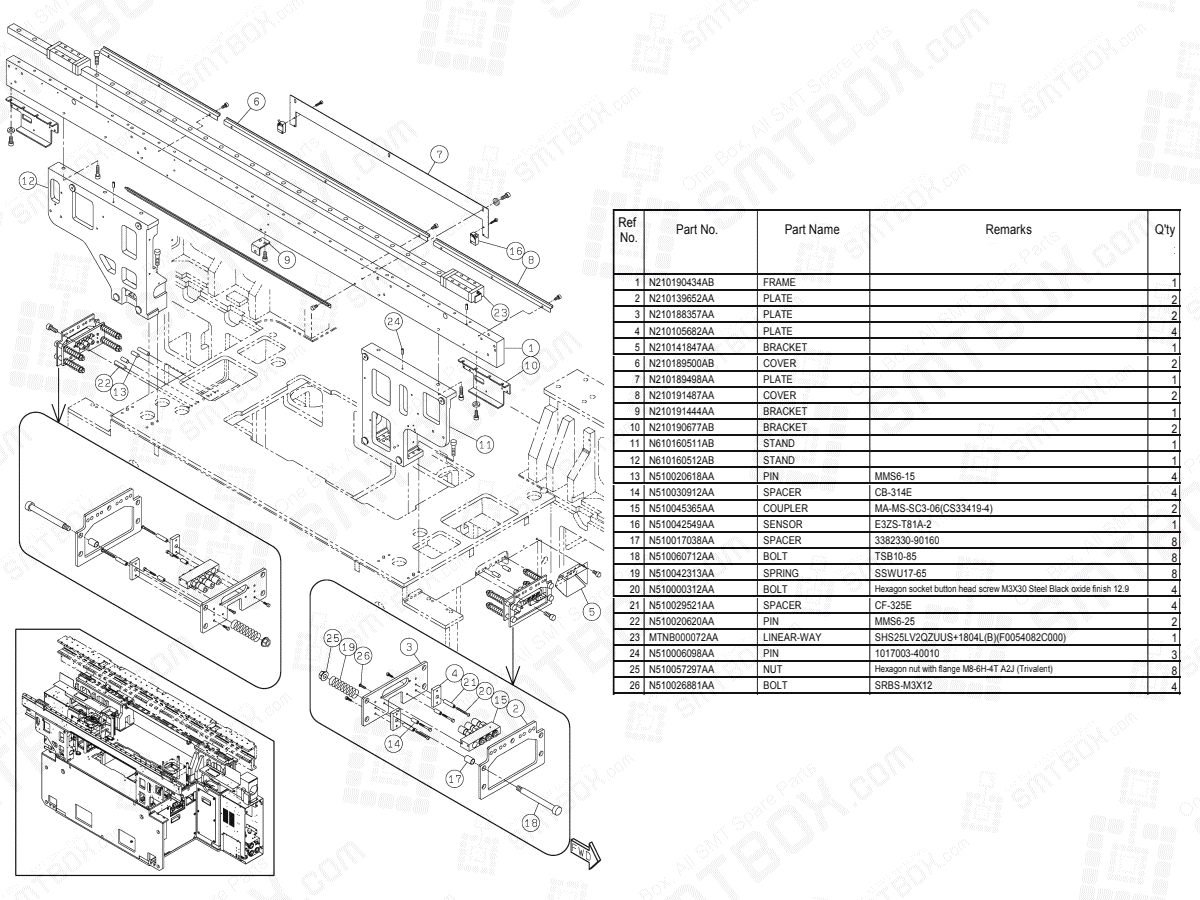

#1 P/N: N210190434AB | Part name: Frame | Qty: 1
#2 P/N: N210139652AA | Part name: Plate | Qty: 2
#3 P/N: N210188357AA | Part name: Plate | Qty: 2
#4 P/N: N210105682AA | Part name: Plate | Qty: 4
#5 P/N: N210141847AA | Part name: Bracket | Qty: 1
#6 P/N: N210189500AB | Part name: Cover | Qty: 2
#7 P/N: N210189498AA | Part name: Plate | Qty: 1
#8 P/N: N210191487AA | Part name: Cover | Qty: 2
#9 P/N: N210191444AA | Part name: Bracket | Qty: 1
10 P/N: N210190677AB | Part name: Bracket | Qty: 2
11 P/N: N610160511AB | Part name: Stand | Qty: 1
12 P/N: N610160512AB | Part name: Stand | Qty: 1
13 P/N: N510020618AA | Part name: Pin | Remarks: MMS6-15 | Qty: 4
14 P/N: N510030912AA | Part name: Spacer | Remarks: CB-314E | Qty: 4
15 P/N: N510045365AA | Part name: Coupler | Remarks: MA-MS-SC3-06(CS33419-4) | Qty: 2
16 P/N: N510042549AA | Part name: Sensor | Remarks: E3ZS-T81A-2 | Qty: 1
17 P/N: N510017038AA | Part name: Spacer | Remarks: 3382330-90160 | Qty: 8
18 P/N: N510060712AA | Part name: Bolt | Remarks: TSB10-85 | Qty: 8
19 P/N: N510042313AA | Part name: Spring | Remarks: SSWU17-65 | Qty: 8
20 P/N: N510000312AA | Part name: Bolt | Remarks: Hexagon socket button head screw M3X30 Steel Black oxide finish 12.9 | Qty: 4
21 P/N: N510029521AA | Part name: Spacer | Remarks: CF-325E | Qty: 4
22 P/N: N510020620AA | Part name: Pin | Remarks: MMS6-25 | Qty: 2
23 P/N: MTNB000072AA | Part name: Linear-Way | Remarks: SHS25LV2QZUUS+1804L(B)(F0054082C000) | Qty: 1
24 P/N: N510006098AA | Part name: Pin | Remarks: 1017003-40010 | Qty: 3
25 P/N: N510057297AA | Part name: Nut | Remarks: Hexagon nut with flange M8-6H-4T A2J (Trivalent) | Qty: 8
26 P/N: N510026881AA | Part name: Bolt | Remarks: SRBS-M3X12 | Qty: 4
