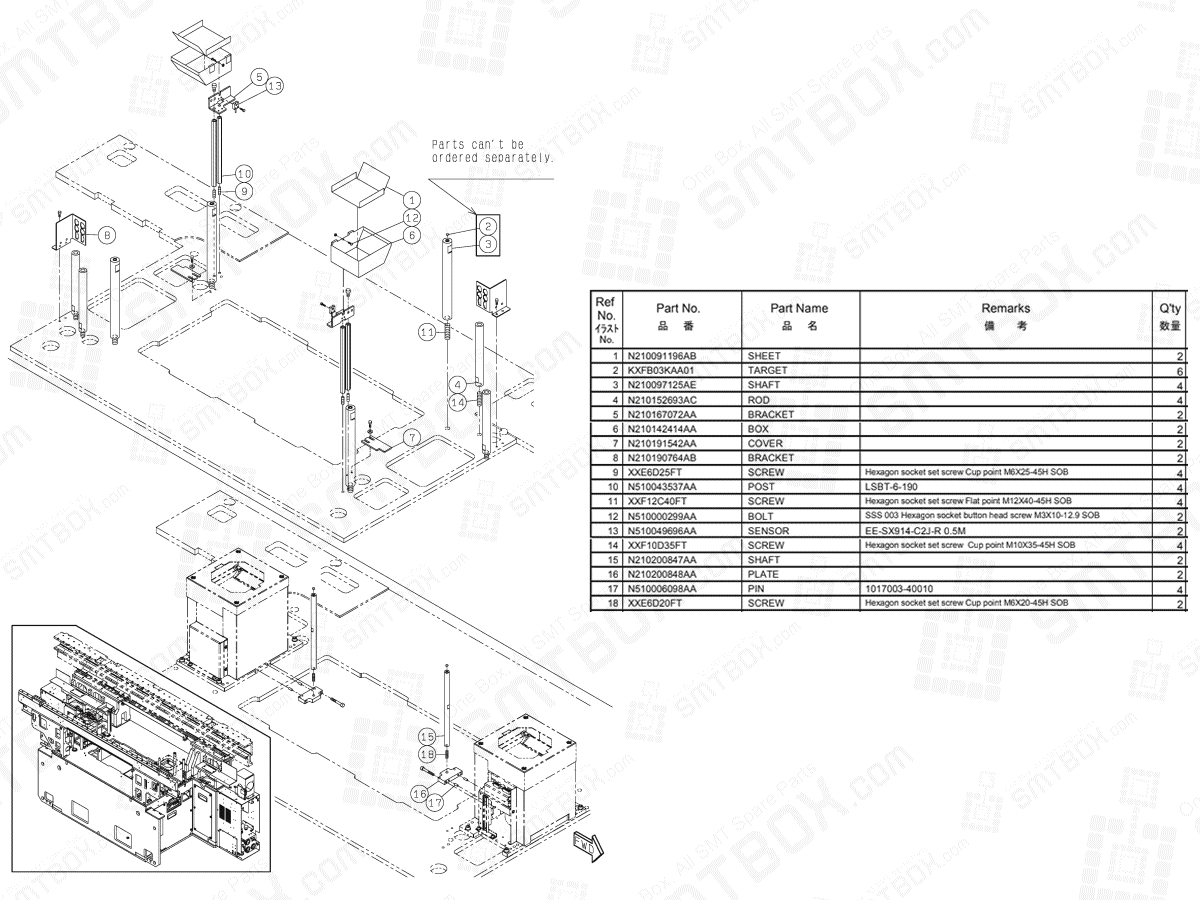

Section No.1-E of Panasonic NPM-D3 Main Body N610160755AA

Section NO.1 E Of Panasonic Npm D3 Main Body N610160755AA

#1. P/N: N210091196AB | Part Name: Sheet | Qty: 2

#2. P/N: KXFB03KAA01 | Part Name: Target | Qty: 6

#3. P/N: N210097125AE | Part Name: Shaft | Qty: 4

#4. P/N: N210152693AC | Part Name: Rod | Qty: 4

#5. P/N: N210167072AA | Part Name: Bracket | Qty: 2

#6. P/N: N210142414AA | Part Name: Box | Qty: 2

#7. P/N: N210191542AA | Part Name: Cover | Qty: 2

#8. P/N: N210190764AB | Part Name: Bracket | Qty: 2

#9. P/N: XXE6D25FT | Part Name: Screw | Remarks: Hexagon socket set screw Cup point M6X25-45H SOB | Qty: 4

#10. P/N: N510043537AA | Part Name: Post | Remarks: LSBT-6-190 | Qty: 4

#11. P/N: XXF12C40FT | Part Name: Screw | Remarks: Hexagon socket set screw Flat point M12X40-45H SOB | Qty: 4

#12. P/N: N510000299AA | Part Name: Bolt | Remarks: SSS 003 Hexagon socket button head screw M3X10-12.9 SOB | Qty: 2

#13. P/N: N510049696AA | Part Name: Sensor | Remarks: EE-SX914-C2J-R 0.5M | Qty: 2

#14. P/N: XXF10D35FT | Part Name: Screw | Remarks: Hexagon socket set screw Cup point M10X35-45H SOB | Qty: 4

#15. P/N: N210200847AA | Part Name: Shaft | Qty: 2

#16. P/N: N210200848AA | Part Name: Plate | Qty: 2

#17. P/N: N510006098AA | Part Name: Pin | Remarks: 1017003-40010 | Qty: 4

#18. P/N: XXE6D20FT | Part Name: Screw | Remarks: Hexagon socket set screw Cup point M6X20-45H SOB | Qty: 2
