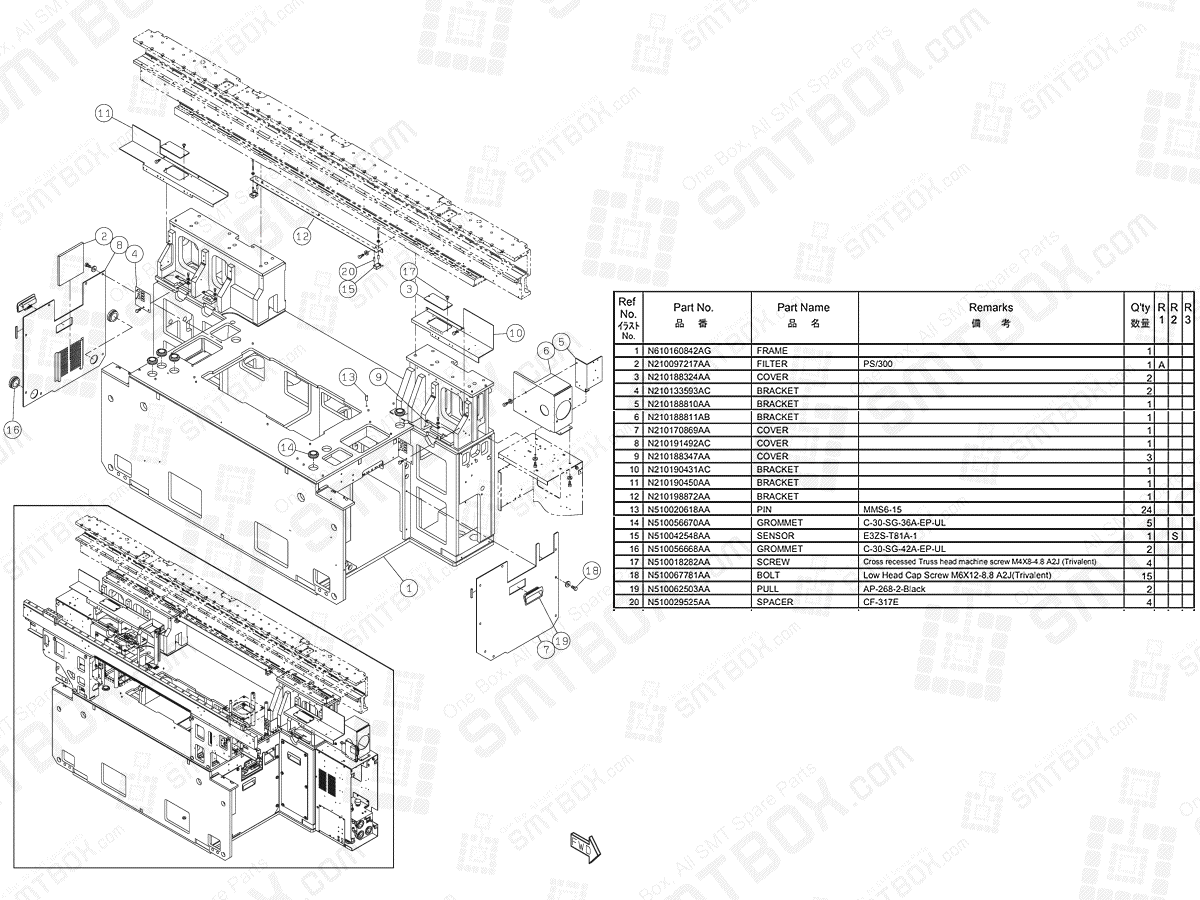

#1. P/N: N610160842AG | Part Name: Frame | Qty: 1
#2. P/N: N210097217AA | Part Name: Filter | Remarks: PS/300 | Qty: 1
#3. P/N: N210188324AA | Part Name: Cover | Qty: 2
#4. P/N: N210133593AC | Part Name: Bracket | Qty: 2
#5. P/N: N210188810AA | Part Name: Bracket | Qty: 1
#6. P/N: N210188811AB | Part Name: Bracket | Qty: 1
#7. P/N: N210170869AA | Part Name: Cover | Qty: 1
#8. P/N: N210191492AC | Part Name: Cover | Qty: 1
#9. P/N: N210188347AA | Part Name: Cover | Qty: 3
#10. P/N: N210190431AC | Part Name: Bracket | Qty: 1
#11. P/N: N210190450AA | Part Name: Bracket | Qty: 1
#12. P/N: N210198872AA | Part Name: Bracket | Qty: 1
#13. P/N: N510020618AA | Part Name: Pin | Remarks: MMS6-15 | Qty: 24
#14. P/N: N510056670AA | Part Name: Grommet | Remarks: C-30-SG-36A-EP-UL | Qty: 5
#15. P/N: N510042548AA | Part Name: Sensor | Remarks: E3ZS-T81A-1 | Qty: 1
#16. P/N: N510056668AA | Part Name: Grommet | Remarks: C-30-SG-42A-EP-UL | Qty: 2
#17. P/N: N510018282AA | Part Name: Screw | Remarks: Cross recessed Truss head machine screw M4X8-4.8 A2J (Trivalent) | Qty: 4
#18. P/N: N510067781AA | Part Name: Bolt | Remarks: Low Head Cap Screw M6X12-8.8 A2J(Trivalent) | Qty: 15
#19. P/N: N510062503AA | Part Name: Pull | Remarks: AP-268-2-Black | Qty: 2
#20. P/N: N510029525AA | Part Name: Spacer | Remarks: CF-317E | Qty: 4
