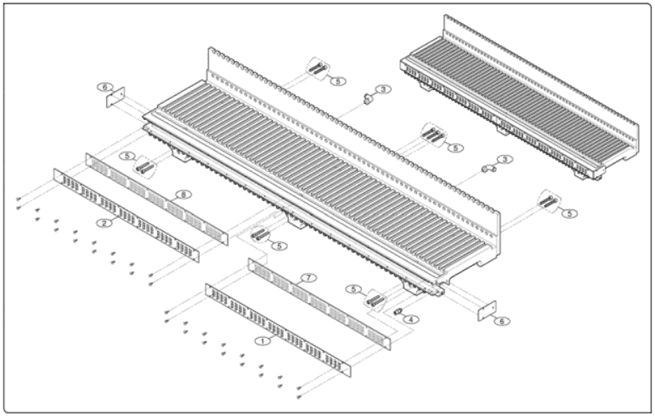

Required Materials of Feeder Base on Samsung Techwin SM321 SMT Component Assembly Machine

#1. P/N: J9060352A | Part Name: FEEDER BASE RIGHT COVER PCB, NON DOCKING | Qty:1 | Type: REV 1.0
#2. P/N: J9060351A | Part Name: FEEDER BASE LEFT COVER PCB, NON DOCKING | Qty:1 | Type: REV 1.0
#3. P/N: J1301188 | Part Name: FITTING | Qty:2 | Type: KQ2L04-M5/PL4-M5M/SQL04-M5
#4. P/N: J6711245A | Part Name: COUPLING | Qty:60 | Type: KD-M5-SA
#5. P/N: J6001503038 | Part Name: SOCKET HEAD CAP SCREW | Qty:13 | Type: M5*30 (BL/ZN)
#6. P/N: J7057213A | Part Name: SIDE CABLE COVER-FB | Qty: 2
#7. P/N: J9060348B | Part Name: FEEDER BASE RIGHT BOARD, NON DOCKING | Qty:1 | Type: REV 2.1
#8. P/N: J9060347B | Part Name: FEEDER BASE LEFT BOARD, NON DOCKING | Qty:1 | Type: REV 2.1
