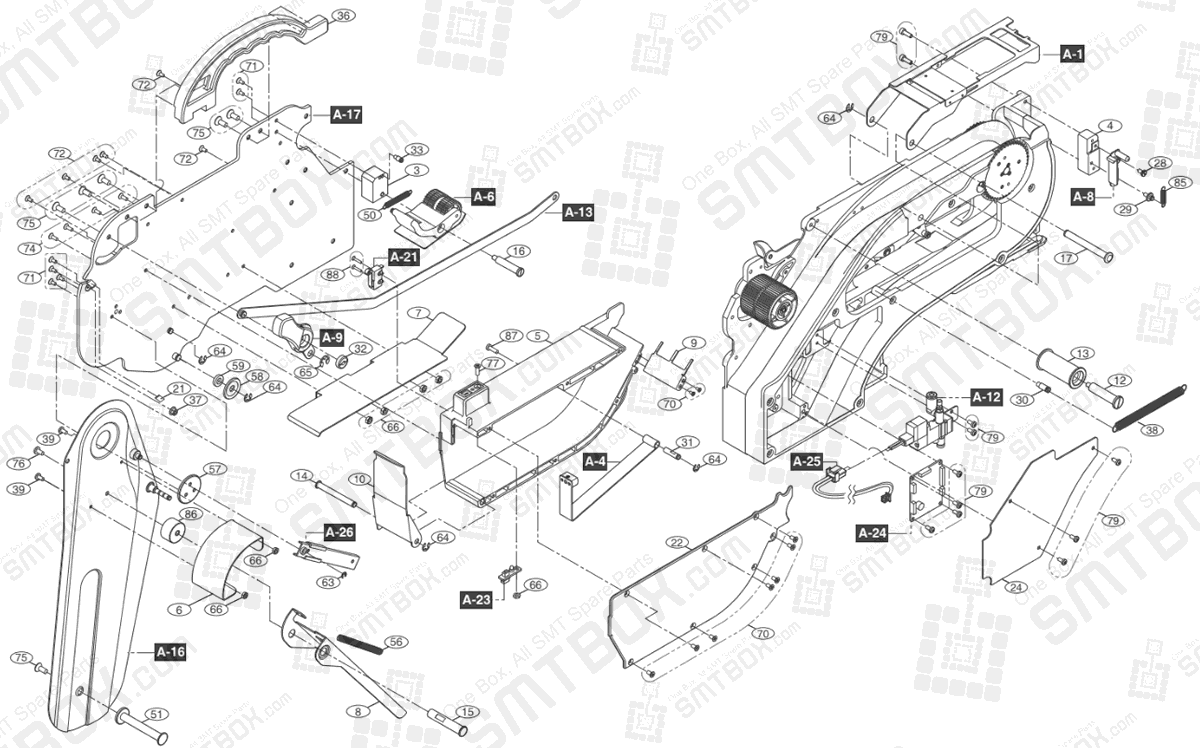

SMN 44mm Pneumatic Tape Feeder For SM/Decan Series
44mm NONIT Feeder P/N: SBFB34120K
44mm IT Feeder P/N: SBFB34020K
#1. P/N: J71651417A | Main Frame 3288
#2. P/N: J71651419A | Sub Frame 4488
#3. P/N: J71651422A | Pressing Gear Mount 44
#4. P/N: J71651427A | Locker Block 44
#5. P/N: J72651165A | Vinyl Box 44
#6. P/N: J70652626A | Round Guide 3244
#7. P/N: J70652648A | Flat Guide 3244
#8. P/N: J70652631A | Reel Brake 3244
#9. P/N: J70652637A | Drain Gear Fork 44
#10. P/N: J70652654A | Vinyl Door 44
#11. P/N: J70652672A | Drain Gear Post 44
#12. P/N: J70652679A | Roller Shaft 4456
#13. P/N: J72651177A | Vinyl Rollor 44
#14. P/N: J70652683A | Vinyl Door Shaft 44
#15. P/N: J70652688A | Reel Brake Shaft 3244
#16. P/N: J70652697A | Pressing Lever Shaft 4456
#17. P/N: J70652701A | Tape Guide Shaft 44
#18. P/N: J70652706A | Sprocket Shaft 44
#19. P/N: J70652734A | Manual Lever
#20. P/N: J70652739A | Prober Cover
#21. P/N: J70652749A | Vinyl Cutter
#22. P/N: J72651182A | Vinyl Box Cover
#23. P/N: J71651439A | Section Cover
#24. P/N: J71651440A | Pcb Cover
#25. P/N: J70652710A | Y Eccentric Pin
#26. P/N: J70652711A | Cylinder Joint
#27. P/N: J70652713A | Manual Lever Shaft
#28. P/N: J70652728A | Locker Link Post
#29. P/N: J70652717A | Locker Slot Pin
#30. P/N: J70652721A | Cylinder Return Spring Post
#31. P/N: J70652722A | Magnet Link Shaft
#32. P/N: J70652725A | Grip Nut
#33. P/N: J70652726A | Pressing Gear Spring Post
#34. P/N: J70652727A | T-Link4 Pin
#35. P/N: J70652767A | Sprocket Shaft Ring
#36. P/N: J72651184A | Handle
#37. P/N: J6039300050 | Flange Nut Frsnut3
#38. P/N: J61071065A | Feeding Spring Awu8-65
#39. P/N: J6119061A | Flat Bolt Cbss 3-6
#40. P/N: J70652593A | Lever Shaft 1
#41. P/N: J61071054A | Stop Pawl Spring
#42. P/N: J70650994B | Toggle Stopper 3
#43. P/N: J70650995B | Toggle Spring Pin
#44. P/N: J70660001B | T Link4 Shaft1
#45. P/N: J70660008B | T Link 1 Shaft
#46. P/N: J7066159A | Limit Shaft
#47. P/N: J7265159A | Sp Washer
#48. P/N: J70652273A | Lever Shaft 2
#49. P/N: J7066040A | Toggle Spring
#50. P/N: J7066039A | D Lever Spring
#51. P/N: J7066259A | Reel Post-44
#52. P/N: J7065992B | Bottom Lo Pin
#53. P/N: J70650978C | Install Guide
#54. P/N: J7065944A | V Loc Pin
#55. P/N: J7065948A | Location Flange
#56. P/N: J70691006A | Reel Brake Spring
#57. P/N: J7066079A | Reel Plate Shaft
#58. P/N: J7066315A | Damper Washer
#59. P/N: J7265131A | Damper
#60. P/N: J6711249A | Coupler Plug
#61. P/N: J7066024B | Coupler Bkt1
#62. P/N: J7066025A | Coupler Bkt2
#63. P/N: J1301023 | E-Ring Dia3 (Sus)
#64. P/N: J1301149 | E-Ring Dia4 (Sus)
#65. P/N: J1301303 | E-Ring Dia5 (Sus)
#66. P/N: J1301266 | Hex Nut M3 (Sus)
#67. P/N: J1301304 | Hex Nut M4 (Sus)
#68. P/N: J6044400050 | Star Washer M4 (Sus)
#69. P/N: J6007301238 | Flat Head Socket Screw M3*12 (Bl/Zn)
#70. P/N: J6006254050 | Flat Head Cap Screw M2.5*4 (Sus)
#71. P/N: J1301448 | Flat Head Cap Screw M3*6 (Sus)
#72. P/N: J2101083 | Flat Head Tapping Screw M3*8
#73. P/N: J6012300650 | Truss Screw M3*6 (Sus)
#74. P/N: J6006300850 | Flat Head Cap Screw M3*8 (Sus)
#75. P/N: J6006400850 | Flat Head Cap Screw M4*8 (Sus)
#76. P/N: J6009401250A | Semus Nabe Screw M4*12 (Sus)
#77. P/N: J6007300838 | Flat Head Socket Screw M3*8 (Bl/Zn)
#78. P/N: J6004200450 | Button Head Cap Screw M2*5 (Sus)
#79. P/N: J6004300650 | Button Head Cap Screw M3*6(Sus)
#80. P/N: J6004300850 | Button Head Cap Screw M3*8(Sus)
#81. P/N: J6010300438 | Socket Set Screw M3*4 (Bl/Zn)
#82. P/N: J6004300650 | Button Head Cap Screw M3*6 (Sus)
#83. P/N: J70652192A | Link2
#84. P/N: J90651490A | Filter Assy
#85. P/N: J7066140A | Locker Spring
#86. P/N: J70652664A | Reel Brake Spacer-44
#87. P/N: J6004300850 | Button Head Cap Screw M3*8(Sus)
#88. P/N: J6006201050 | Flat Head Cap Screw M2*10
