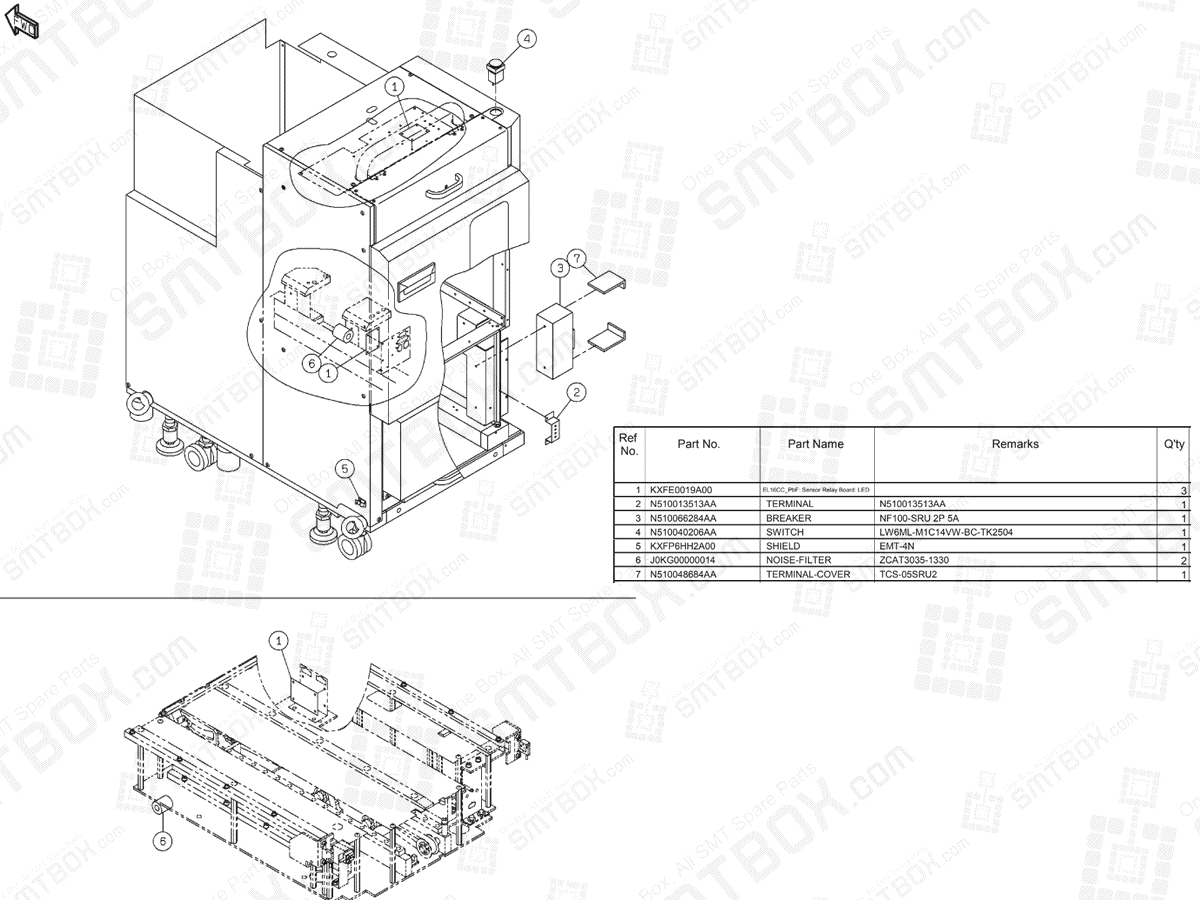

Panasonic NPM Tray Feeder Wiring N610070389AD KN610070389AD-00

#1. P/N: KXFE0019A00 | Part name: EL16CC PbF: Sensor Relay Board: LED | Qty: 3

#2. P/N: N510013513AA | Part name: Terminal | Qty: 1

#3. P/N: N510066284AA | Part name: Breaker | Remarks: NF100-SRU 2P 5A | Qty: 1

#4. P/N: N510040206AA | Part name: Switch | Remarks: LW6ML-M1C14VW-BC-TK2504 | Qty: 1

#5. P/N: KXFP6HH2A00 | Part name: Shield | Remarks: EMT-4N | Qty: 1

#6. P/N: J0KG00000014 | Part name: Noise Filter | Remarks: ZCAT3035-1330 | Qty: 2

#7. P/N: N510048684AA | Part name: Terminal Cover | Remarks: TCS-05SRU2 | Qty: 1
